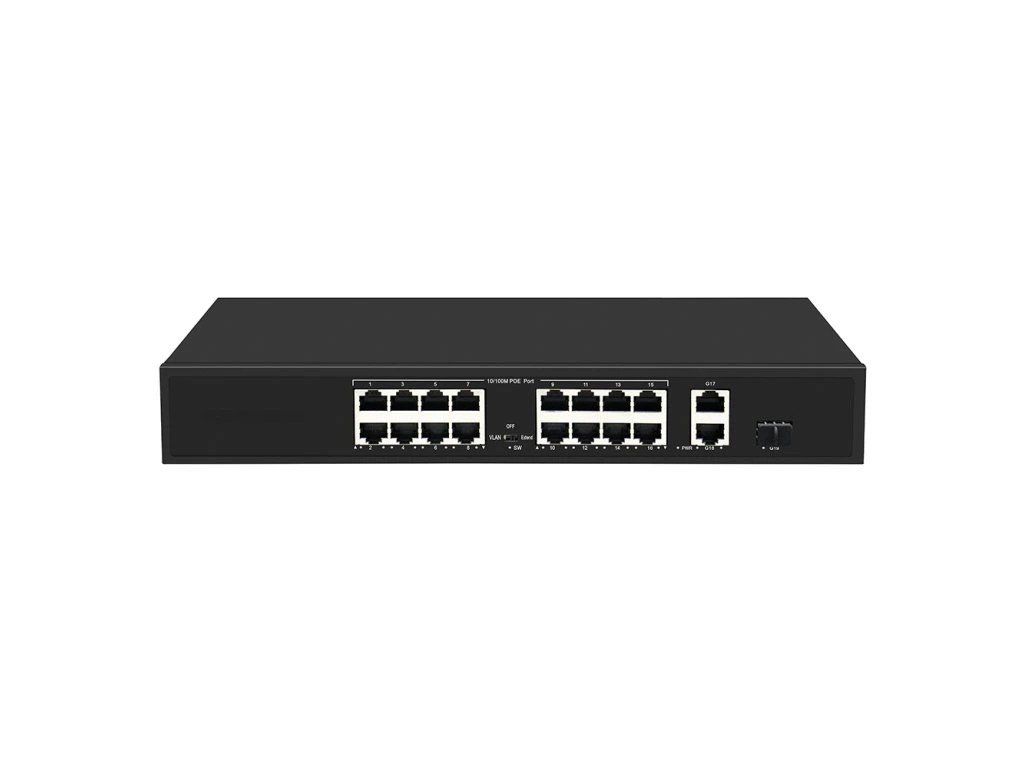

The Partizan PSW-16 is a CCTV network switch designed for surveillance applications, featuring 16 PoE ports and 2 regular ports. This switch offers a total PoE power budget of 300 watts with per-port power delivery of 15.4 or 30 watts. The unit provides a switching capacity of 9.2 and supports IEEE 802.3i (10Base-T), 802.3x (Flow control), IEEE 802.3af (DTE Power via MDI), and 802.3at standards.
The PSW-16 supports multiple PoE standards including 802.3af and 802.3at, enabling compatibility with various powered devices. The switch operates on AC power supply rated at 100-240V with 50/60Hz frequency and uses an EU Type C/F plug. The unit draws 0.2A during operation.
The switch measures 320 x 210 x 46 mm and weighs 1950 grams. Operating temperature range is 0 to 40°C with humidity tolerance of 20-95% RH non-condensing, while storage temperature spans -30 to 50°C. The product includes a 3-year warranty.
Specification
| Gigabit ethernet ports |
2 x 100/1000 M
|
| Gigabit PoE ports |
16 x 100/1000 M
|
| PoE power (per port) |
15.4 W,
30 W
|
| PoE power (total) |
300 W
|
| Switching capacity |
9.2 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3x (Flow control),
IEEE 802.3af — DTE Power via MDI,
IEEE 802.3af,
IEEE 802.3at
|
Electrical specification
| AC Plug |
EU (Type C/F)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
320x210x46 mm
|
| Weight |
1950 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
