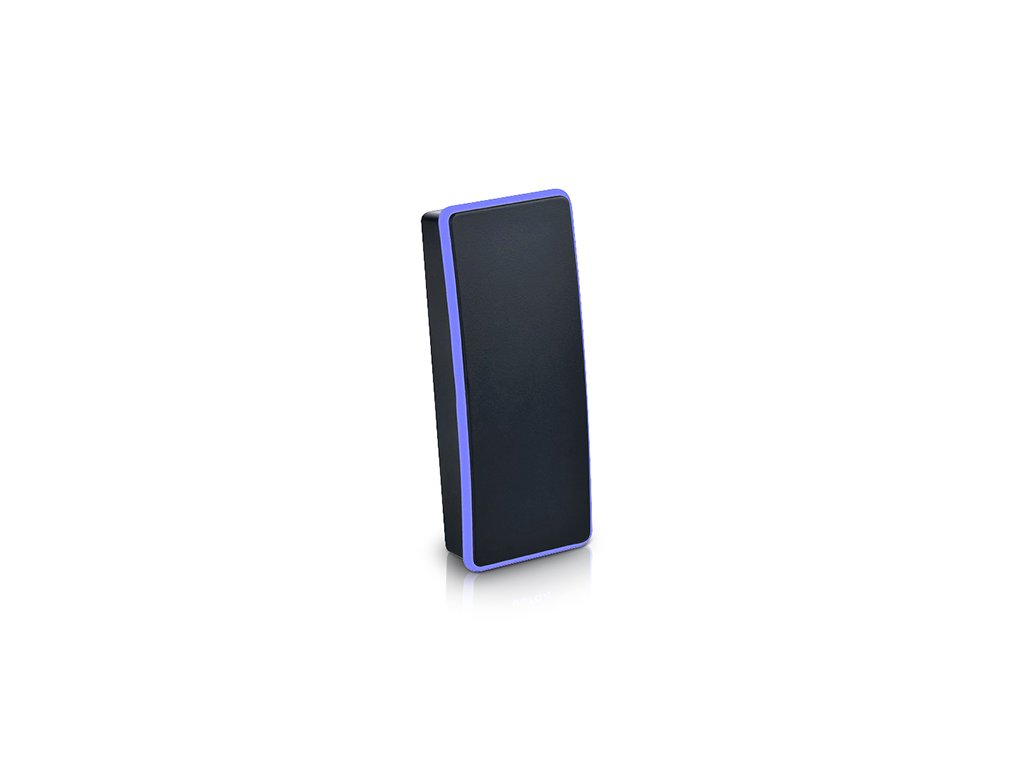

The Partizan PAS-E12 is a standalone access control controller designed for single-door entry management. This device operates using 125 kHz EM4100 RF standard technology and features a memory capacity of 2000 users.
The PAS-E12 functions as a standalone controller with Wiegand 26 input capability. The unit includes external LED control and external buzzer control for visual and audio feedback. It supports exit button input and door contact input for comprehensive door monitoring. A relay output is provided for lock control integration.
The controller operates on 12V DC power with an idle current of 100 mA. With an IP 55 rating, the device offers protection against dust and water jets. Dimensions measure 120 x 45 x 18 mm with a weight of 100 g. Operating temperature ranges from -20 to 40 °C with humidity tolerance of 20-95% RH non-condensing. Storage temperature extends from -30 to 50 °C. The package includes master keys, and the product is backed by a 3-year warranty.
Interfaces
| Working modes |
Standalone controller
|
| RF standards |
125 kHz EM4100
|
| Memory capacity |
2000 cards
|
| Wiegand input |
26 bits
|
| External LED control |
yes
|
| External buzzer control |
yes
|
| Exit button input |
yes
|
| Door contact input |
yes
|
| Alarm output |
no
|
| Relay output |
yes
|
Electrical specification
| Operating voltage |
12 V DC
|
| Idle current |
< 100 mA
|
Mechanical specifications
| PIN / keypad |
no
|
| IP rating |
IP 55
|
| Dimension |
120 x 45 x 18 mm
|
| Weight |
100 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Master keys
|
| Warranty |
3 years
|
