5Mp fix focus IP kamera IPD-5SP-IR SDM FADA Cloud

Code: 5220
In stock (>20 pcs)
Delivery to:
08/07/2026

Detailed information

Product detailed description

Partizan IPD-5SP-IR SDM FADA Cloud is a cloud-enabled IP camera from the Cloud series, featuring a 1/2.8" CMOS sensor with multiple resolution options including 2592x1944, 2560x1440, and 1920x1080 at 25 fps. This security camera utilizes H.265X video compression and G711A audio codec for efficient streaming and recording. The camera offers a 2.8 mm spherical lens with M12 mount, providing a 93-degree horizontal and 61-degree vertical field of view. It features both IR LED and White LED illumination with 30-meter distance coverage using 4 LEDs. Smart analytics capabilities include human detection, face detection, and vehicle detection. The unit supports cloud functionality with remote access, cloud recording, and PUSH notifications. Video functions include AES, AGC, AWB, BLC, OSD, and privacy mask, with exposure range from 1/25 to 1/10000 and 72 dB dynamic range WDR. A built-in microphone and speaker enable two-way audio, while TF card storage supports up to 256 GB. The camera features IP67-rated metal housing with dimensions of 110 mm diameter and 95 mm height, weighing 500 g. It operates on 12V DC (600 mA consumption) or PoE Class 0, functioning in temperatures from -40 to 60°C with 20-95% humidity. Network connectivity is via RJ-45 10/100Base-T with DHCP default addressing. The product includes a 3-year warranty.


Product details

Model IPD-5SP-IR
Version SDM FADA Cloud
SKU 5220
Series Cloud series

Encoder

Main stream 2592x1944@25 fps, 2560x1440@25 fps, 1920x1080@25 fps
Sub stream 800x448@25 fps
Video codec H.265X
Audio codec G711A

Image sensor

Sensor 1/2.8" CMOS
Pixel size 2.0x2.0 μm
Day/Night mode Auto, Color, Black&White
Sensitivity 0.01 Lux
Dynamic range WDR 72 dB
Exposure modes Auto, Manual
Exposure range 1/25 - 1/10000 s
Video functions AES, AGC, AWB, BLC, OSD, Privacy mask

Lens

Lens type Spherical
Lens mount М12
Iris F1.6
Focal length 2.8 mm
Horizontal view 93°
Vertical view 61°

IR LED

LED type IR LED, White LED
Distance ≤30 m
Number of LEDs 4 pcs

Network

Network interfaces RJ-45 (10/100Base-T)
Network functions Cloud, DDNS, IP FILTER, Email, NTP, UPnP, RTP/RTSP
Default IP address DHCP
HTTP(s) port 80
Control port 34567
RTSP port 554
RTSP URL rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp

Default credentials

Default login admin
Default password admin

Software

Smart analytics Human detection, Face detection, Vechicle detection
Smart analytics (important note) IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
Cloud abilities Remote access, Cloud recording, PUSH notifications
Desktop apps Partizan, Setup Tool
Mobile app Partizan
Web browsers Google Chrome, Mozilla Firefox, Edge
Web browser languages English, Russian, Arabic, French, Polish, Romanian, Hungarian, Italian, Czech
Web browser usage (important note) Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global

External interfaces

Mic Built-in microphone
Speaker Built-in speaker
TF сard support ≤256 Gb

Mechanical specifications

IP rating IP67
Dimensions Ø110 x 95 mm
Weight 500 g
Housing material Metal
Mount material Metal

Power

DC power source 12 V
DC consumtion 600 mA
DC power supply Not included
PoE PoE Class 0

Operating conditions

Humidity range 20-95% RH (non-condensing)
Operating temperature -40 - 60 °C
Storage temperature -40 - 60 °C

Common

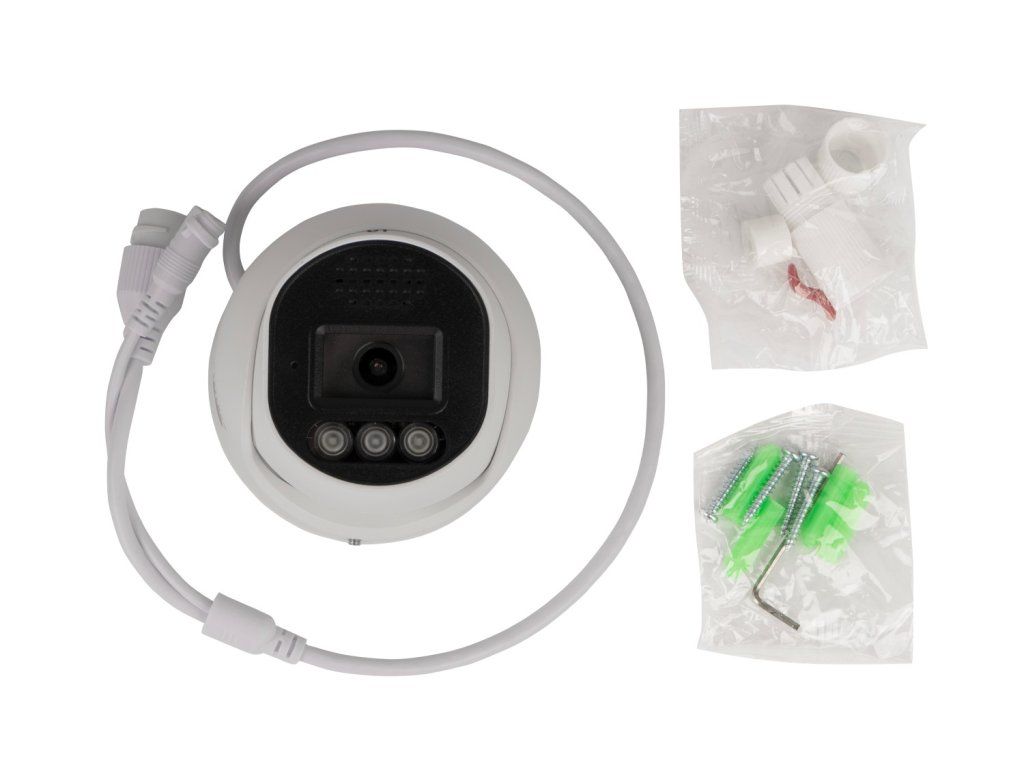

Package contents Drill template, Mounting kit
Warranty 3 years

Additional parameters

Category: Dome (Turret)
Warranty: 3 years
Weight: 0.33 kg
EAN: 5061099730730
Series: Cloud
Case type: Dome (Turret)
Resolution: 5Mp
Lens Type: Fixed Lens
Focus: 2.8mm
Night vision type: Full Colour (IR + White LED)
Night vision range: 25m
Software support: Partizan (PC/Android/iOS), Web interface (IE)
Housing material: Metal
Special features: SD-card support, RTSP, Alarm red & blue lights, Built-in Speaker & Mic
Smart features: Human Detection
