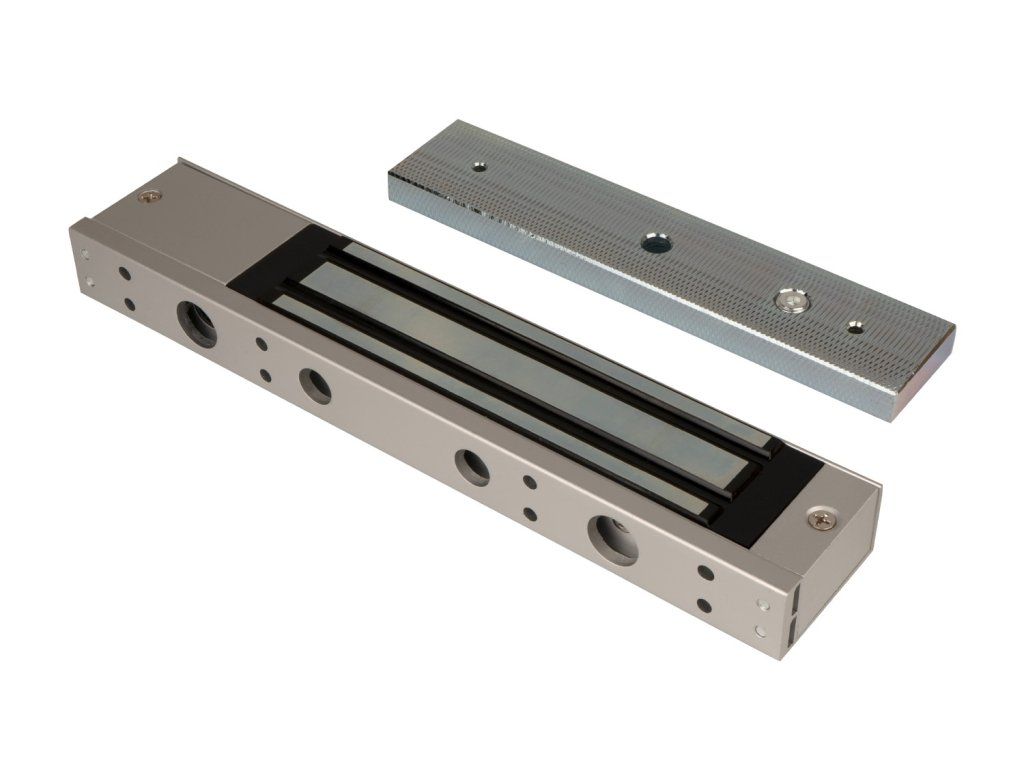

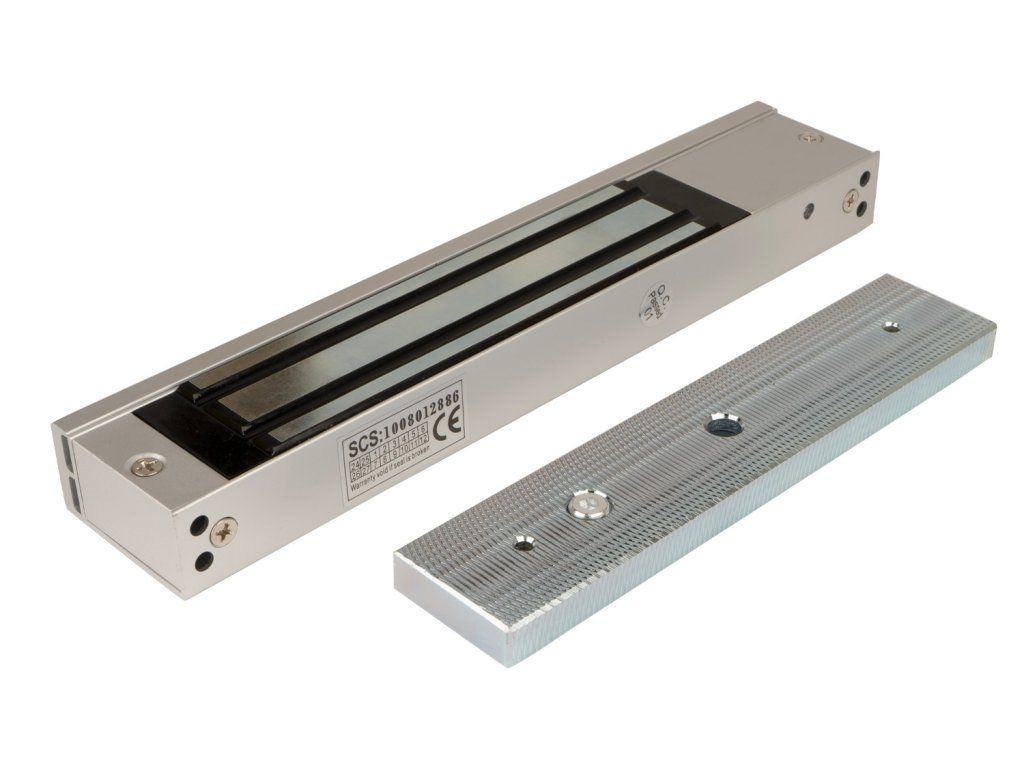

The Partizan PML-300 is a smart home electromagnetic lock featuring a holding force of 280 and constructed with quality materials for reliable door security applications. This device operates on 12 DC power and carries SKU 1346.
The lock body measures 250 x 47 x 25 mm and features an anodized aluminum housing finish. The armature plate measures 180 x 38 x 11 mm with a zinc finish, while the magnet also features a zinc finish. The complete unit weighs 1800 grams. DC consumption is rated at 380.

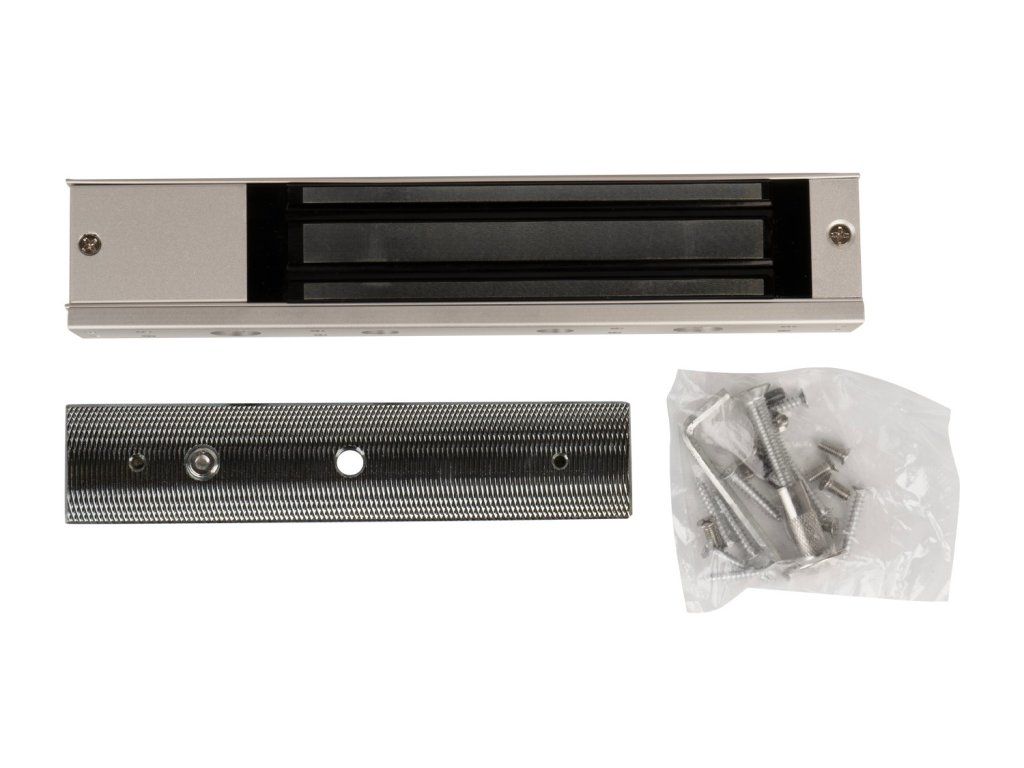

The PML-300 operates within a temperature range of -20 to 40 °C and can be stored at temperatures between -30 and 50 °C. The humidity tolerance spans 20-95% RH in non-condensing conditions. The package includes a drill template and mounting kit for installation. Partizan backs this electromagnetic lock with a 3-year warranty.
Technical specifications
| Holding force |
280 kg
|
| Housing finishes |
Anodized aluminum
|
| Armature finishes |
Zinc
|
| Magnet finishes |
Zinc
|
Electrical specification
| DC power source |
12 V
|
| DC consumtion |
380 mA
|
Mechanical specifications
| Lock dimension |
250 x 47 x 25 mm
|
| Armature dimension |
180 x 38 x 11 mm
|
| Weight |
1800 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-20 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
