Reader POE Partizan PSW-16
Code: 1531Related products
Product detailed description

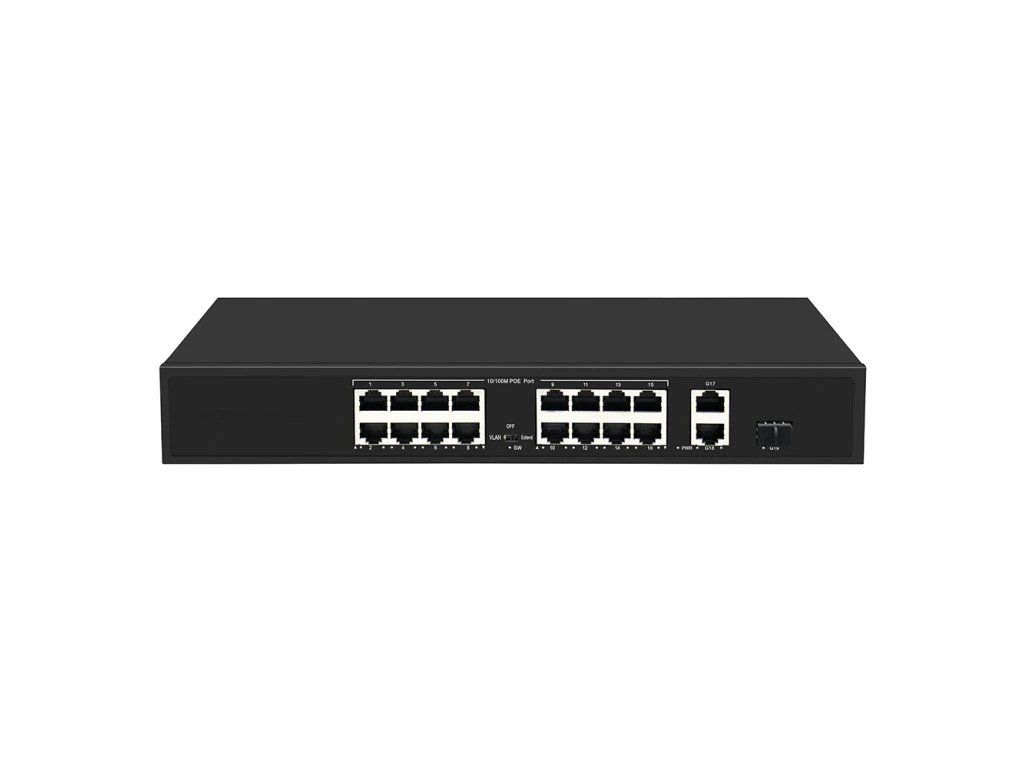

The Partizan PSW-16 is a CCTV PoE switch featuring 16 PoE ports with a total power budget of 300W. This network switch delivers 9.2 Gbps switching capacity and supports both IEEE 802.3af and 802.3at PoE standards for flexible device powering.
Key features
- ✓16 PoE ports — 10/100 Mbps with 15.4W or 30W per port
- ✓300W total PoE budget — powers multiple devices simultaneously
- ✓2 Gigabit uplink ports — 100/1000 Mbps regular ports
- ✓1 Gigabit SFP port — for fiber connectivity
- ✓9.2 Gbps switching capacity — high-performance data handling
- ✓Dual PoE standards — IEEE 802.3af and 802.3at support
- ✓3-year warranty — manufacturer coverage included
The switch operates on 100-240V AC (50/60Hz) with EU plug (Type C/F), functioning within 0-40°C and 20-95% RH non-condensing conditions. Dimensions are 320 × 210 × 46 mm with a weight of 1950g.
Product details
| Model | PSW-16 |
|---|---|
| SKU | 1531 |
Specifications
| SFP ports | 1 |
|---|---|
| Uplink ports (RJ45) | 2 x 100/1000 M |
| PoE ports | 16 x 10/100 M |
| PoE power (per port) | 15.4W, 30W |
| PoE power (total) | 300W |
| Switching capacity | 9.2Gbps |
| Supported standards | IEEE 802.3i (10Base-T) , IEEE 802.3x (Flow control), IEEE 802.3af — DTE Power via MDI, IEEE 802.3af, IEEE 802.3at |
Electrical specifications
| AC Plug | EU (Type C/F) |
|---|---|
| AC power supply | 100-240 V 50/60 Hz |
Mechanical specifications
| Dimensions | 320 x 210 x 46 mm |
|---|---|
| Weight | 1950g |
Operating conditions
| Humidity range | 20-95 % RH (non-condensing) |
|---|---|
| Operating temperature | 0 - 40 °C |
| Storage temperature | -30 - 50 °C |
Common
| Warranty | 3 years |
|---|
Additional parameters
| Category: | PoE Switches |
|---|---|
| Warranty: | 3 years |
| Weight: | 1.84 kg |
| EAN: | 5060491862025 |
