Card Reader Partizan PAR-EMH10 Silver Outdoor
Code: 1534Related products
Product detailed description

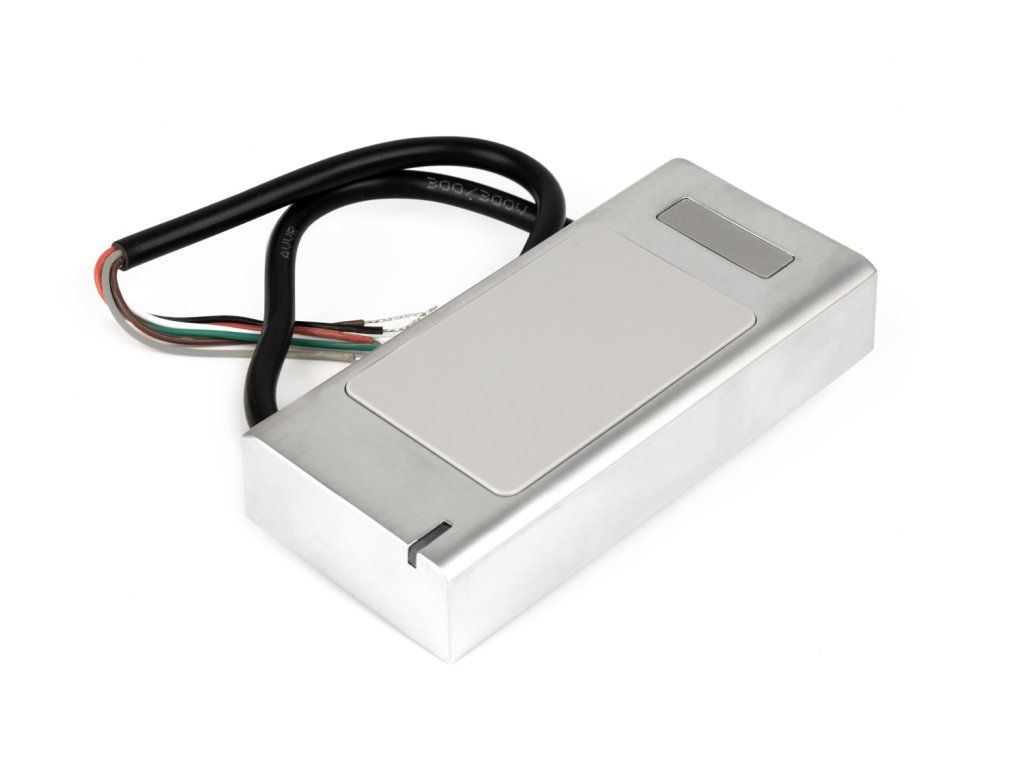

The Partizan PAR-EMH10 Silver Outdoor is a versatile access control card reader designed for outdoor installations. This multi-format reader supports 125 kHz EM4100, 125 kHz HID Proximity, and 13.56 MHz MIFARE RF standards, offering flexible credential compatibility with a reading distance of 1–4 cm.
Key features
- ✓Multi-format RF support — 125 kHz EM4100, HID Proximity, and 13.56 MHz MIFARE
- ✓Wiegand output — 26 to 58-bit format for controller integration
- ✓IP67-rated enclosure — dust-tight and waterproof for outdoor use
- ✓External LED control — allows visual status indication via controller
- ✓External buzzer control — enables audible feedback through controller
- ✓Compact design — 103 × 48 × 19 mm dimensions

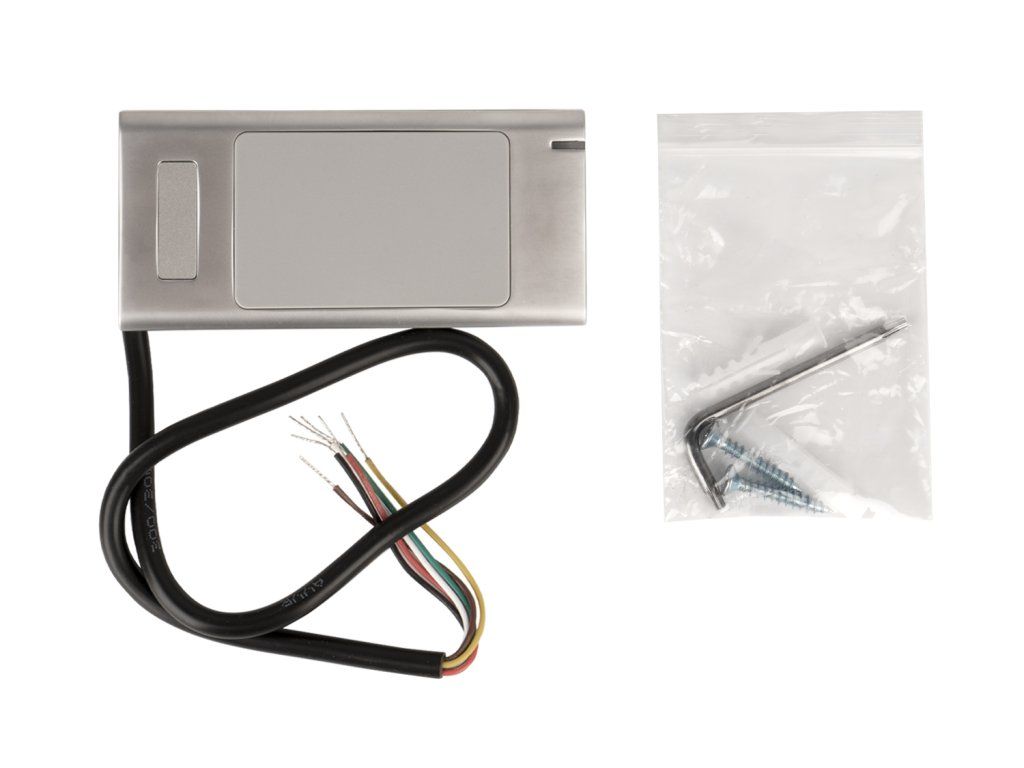

- ✓3-year warranty — included with mounting kit
The reader operates on 9–18V DC with a 25mA idle current. It functions within an operating temperature range of -20 to 40°C and humidity levels of 20–95% RH (non-condensing), making it suitable for demanding outdoor environments.
Product details
| Model | PAR-EMH10 |
|---|---|
| Version | Silver Outdoor |
| SKU | 1534 |
Interfaces
| Working modes | Reader |
|---|---|
| RF standards | 125 kHz EM4100, 125 kHz HID Proximity, 13.56 MHz MIFARE |
| Reading distance | 1 - 4 cm |
| Wiegand output | 26 ~ 58 bits |
| External LED control | yes |
| External buzzer control | yes |
| Exit button input | no |
| Door contact input | no |
| Alarm output | no |
| Relay output | no |
Electrical specification
| Operating voltage | 9 - 18 V DC |
|---|---|
| Idle current | ≤ 25 mA |
Mechanical specifications
| PIN / keypad | no |
|---|---|
| IP rating | IP 67 |
| Dimensions | 103 x 48 x 19 mm |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -20 - 40 °C |
| Storage temperature | -30 - 50 °C |
Common
| Package contents | Mounting kit |
|---|---|
| Warranty | 3 years |
Wiring diagram
Additional parameters
| Category: | Card Readers |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.24 kg |
| EAN: | 5060491861998 |
