Kontrolér PAS-EMHK12 se čtečkou Em Marine/Mifare/HID a klávesnice

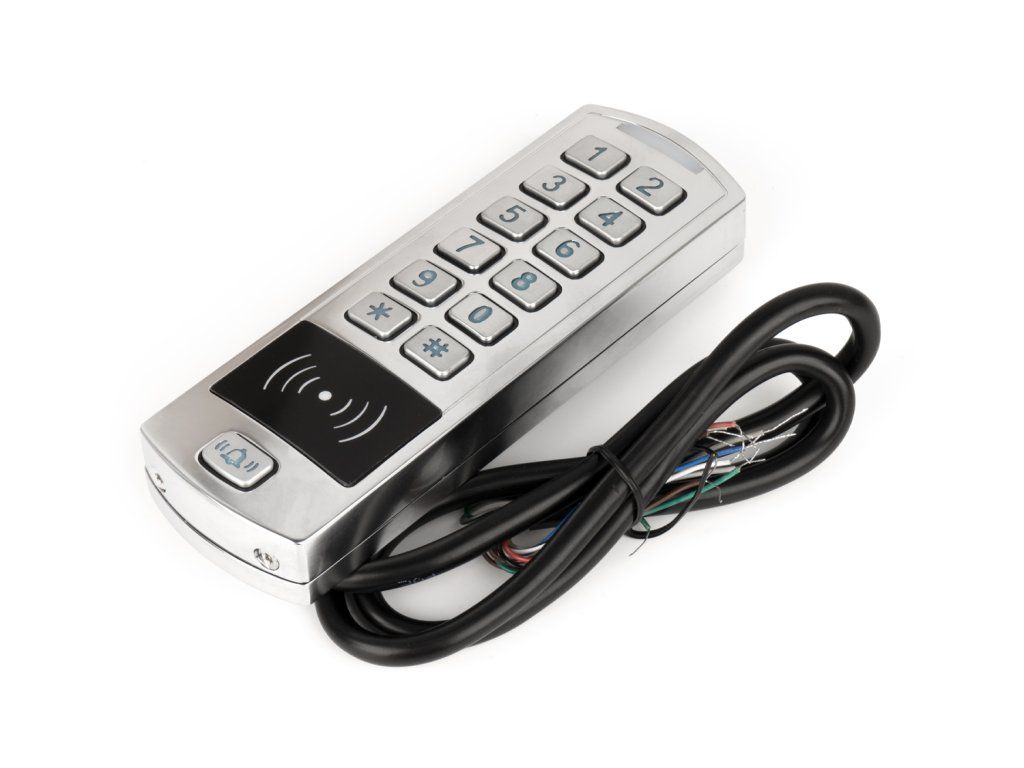

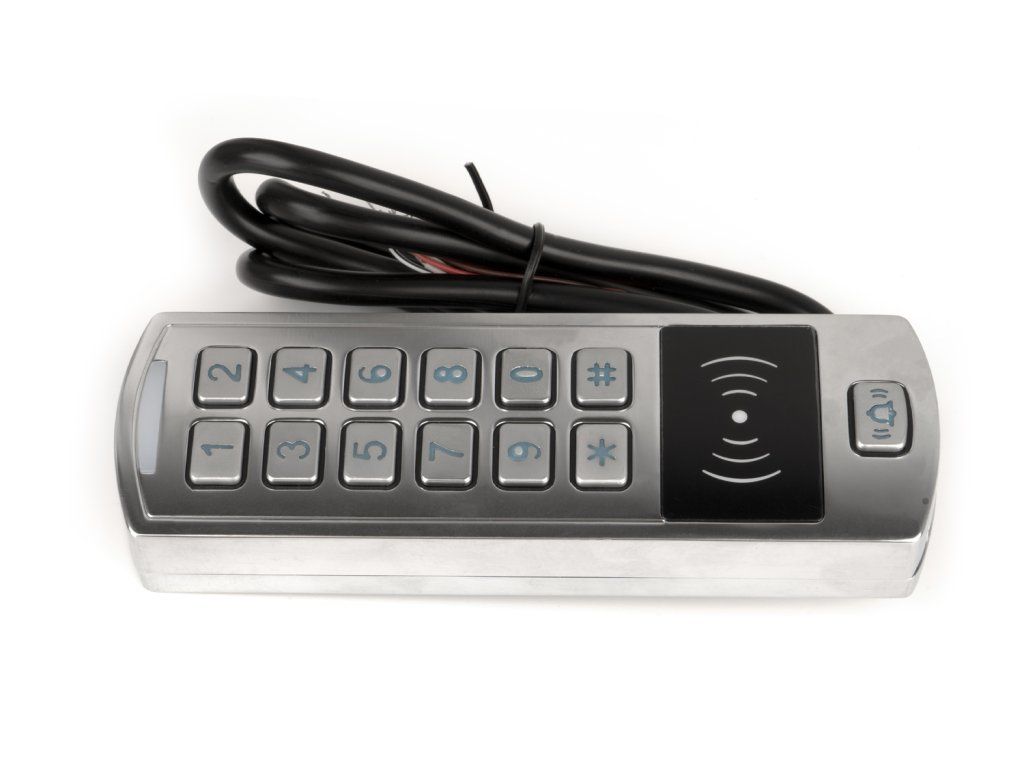

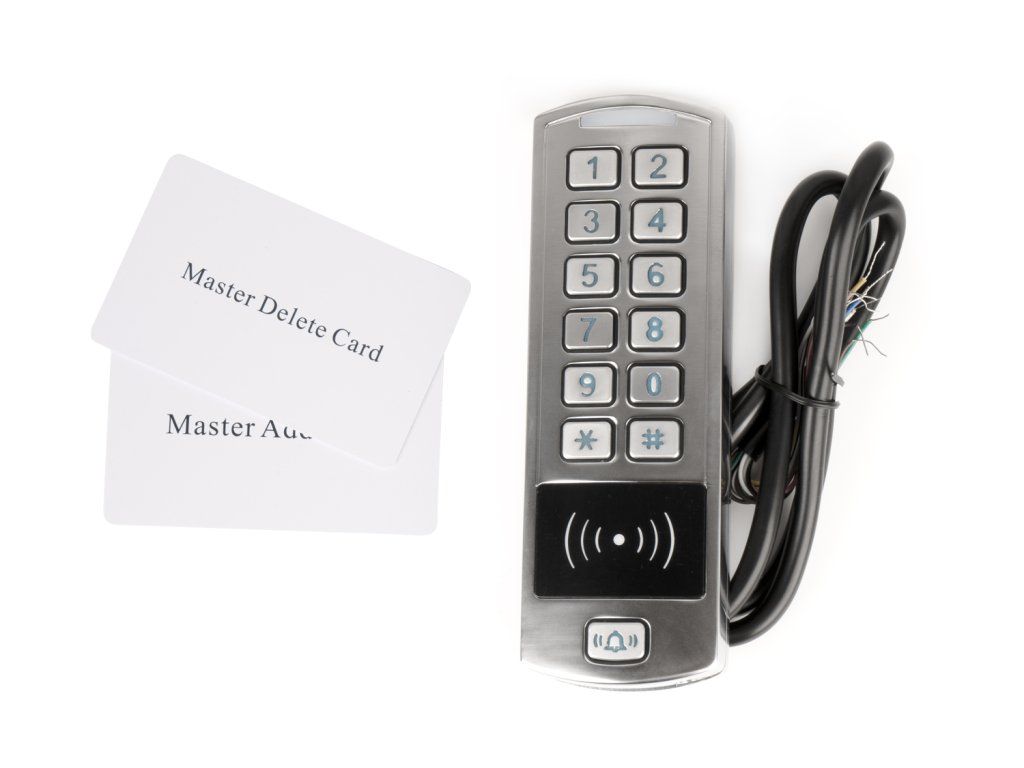

The Partizan PAS-EMHK12 is an access control device that operates in two working modes: as a reader or as a standalone controller. This unit supports multiple RF standards including 125 kHz EM4100, 125 kHz HID Proximity, and 13.56 MHz MIFARE credentials, with a reading distance range of 2 to 6 units. The device features an integrated PIN keypad and offers memory capacity for 600 users. It provides Wiegand input and output supporting 26 to 37 bit formats, along with PIN output options including 4-bit, 8-bit ASCII, and 10-digit Virtual Keypad modes. The unit includes external LED control, external buzzer control, exit button input, door contact input, alarm output, and relay output capabilities. The PAS-EMHK12 operates on 12-28V AC/DC with an idle current of 65 mA and continuous current of 100 mA. With IP66 protection rating, the device functions within operating temperatures of -20 to 40°C and humidity of 20-95% RH non-condensing. Dimensions measure 150 x 51 x 23 mm with a weight of 500 units. The package includes a mounting kit and master cards, backed by a 3-year warranty.
