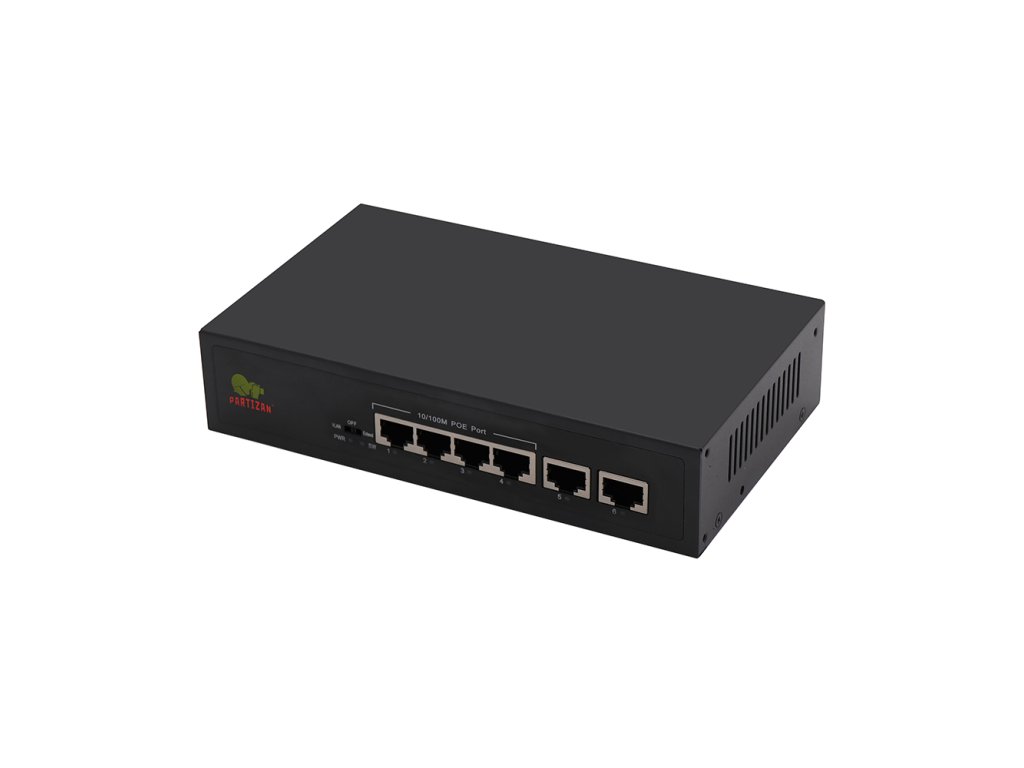

The Partizan PSW-4 v1.0 is a CCTV network switch designed for Power over Ethernet applications. This compact switching device features 4 PoE ports and 2 regular ports with a switching capacity of 1.2 Gbps.
The switch supports IEEE 802.3af and 802.3at PoE standards, delivering 15.4 W or 30 W per port with a total PoE power budget of 55 W. The device provides flexible connectivity options for powering and connecting network cameras and other PoE-enabled devices within surveillance installations.
The PSW-4 operates on 100-240 VAC at 50/60 Hz and includes an EU Type C/F plug. The unit measures 200 × 120 × 45 mm and weighs 550 g. Operating conditions range from 0 to 40 °C with humidity tolerance of 20-95% RH non-condensing, while storage temperature extends from -30 to 50 °C. The product is backed by a 3-year warranty.
Product details
| Model |
PSW-4
|
| Version |
v1.0
|
| SKU |
1689
|
Specification
| Gigabit ethernet ports |
2 x 100/1000 M
|
| Gigabit PoE ports |
4 x 100/1000 M
|
| PoE power (per port) |
15.4 W,
30 W
|
| PoE power (total) |
55 W
|
| Switching capacity |
1.2 Gbps
|
| Supported standards |
IEEE 802.3af,
IEEE 802.3at
|
Electrical specification
| AC Plug |
EU (Type C/F)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
200x120x45 mm
|
| Weight |
550 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
