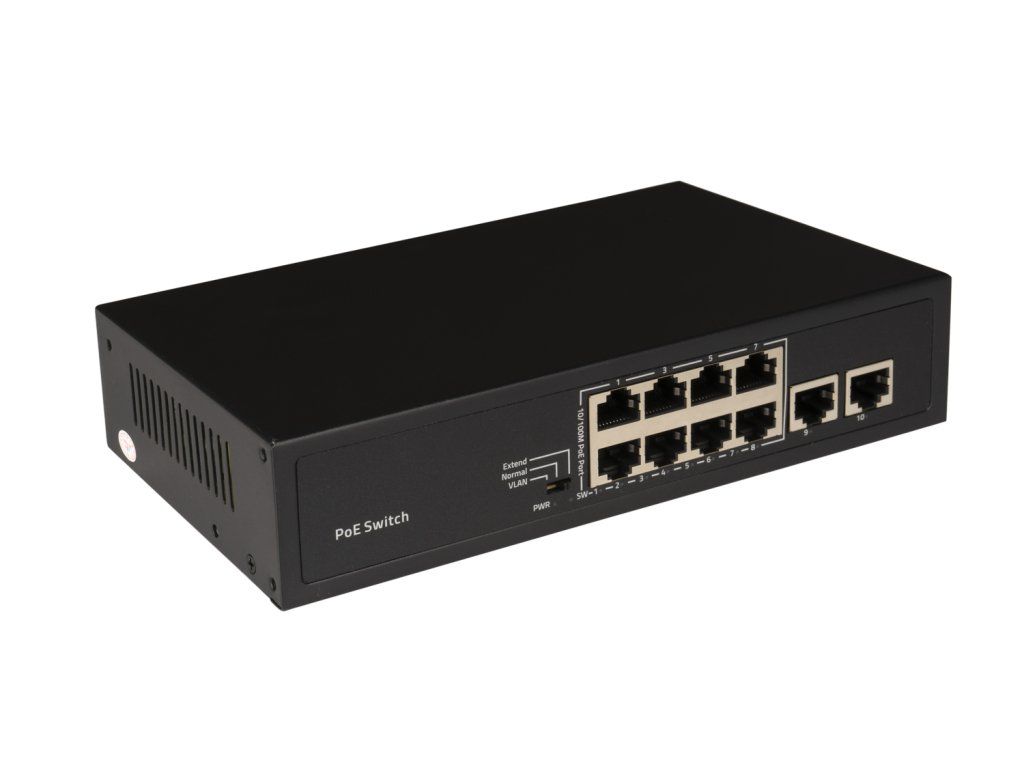

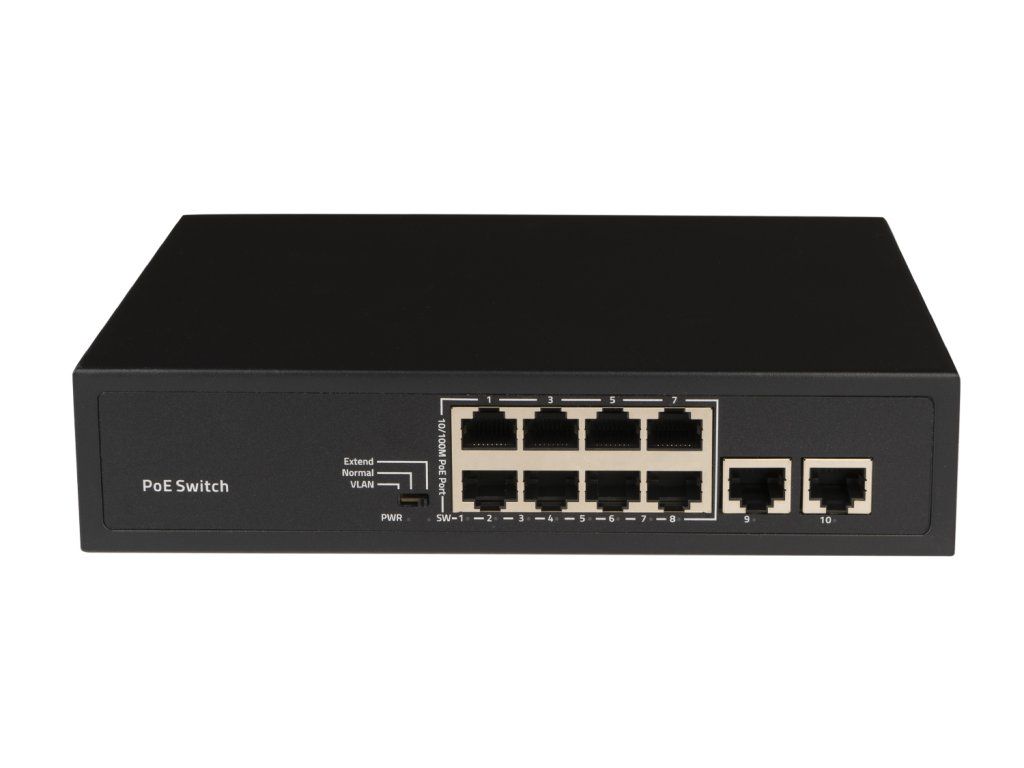

The Partizan PSW-8 v1.0 is a CCTV switch designed for enhanced connectivity, featuring 8 PoE ports and 2 regular ports. It supports PoE power outputs of 15.4W and 30W per port, with a total PoE power capacity of 96.2W, ensuring efficient network management.
This device has a switching capacity of 2 Gbps and complies with various standards including IEEE 802.3i (10Base-T), 802.3af, 802.3at, and others, providing versatile functionality across different network configurations. The PSW-8 operates within a temperature range of 0 to 40 °C and accommodates humidity levels of 20-95% RH (non-condensing), making it suitable for various environments. The unit dimensions are 200mm x 120mm x 45mm, and it weighs 600 grams.

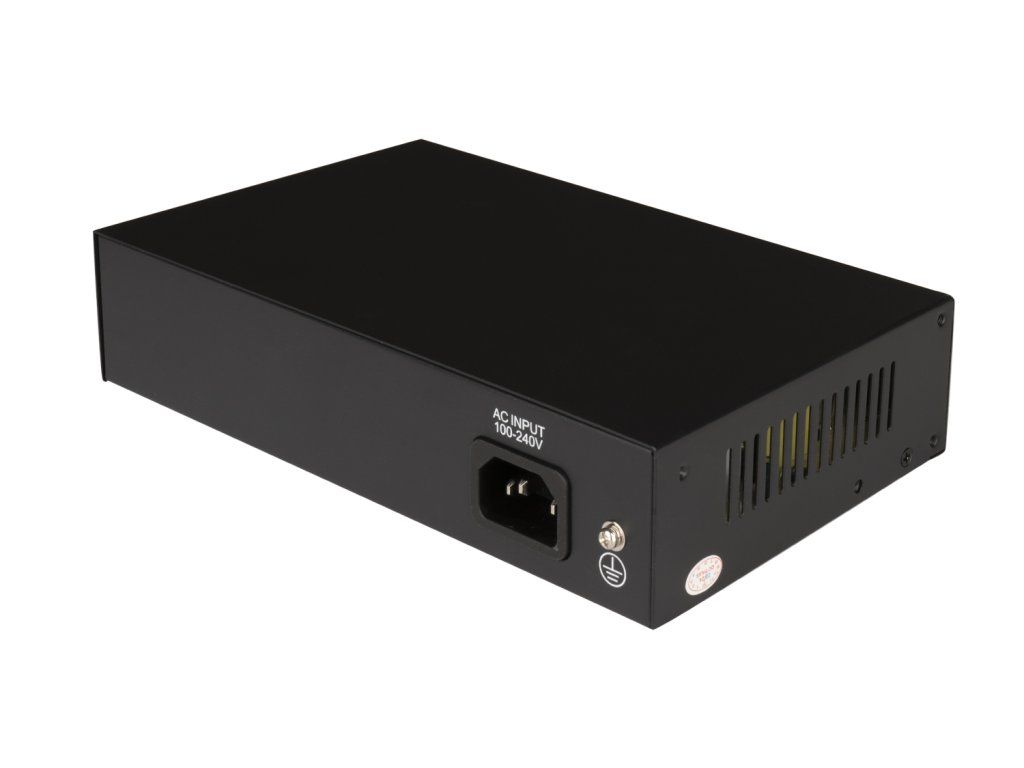

The power supply operates on AC input ranging from 100-240V with a current of 0.2A. The product is backed by a 3-year warranty for added assurance of quality and reliability.
Product details
| Model |
PSW-8
|
| Version |
v1.0
|
| SKU |
1690
|
Specification
| Gigabit ethernet ports |
2 x 100/1000 M
|
| Gigabit PoE ports |
8 x 100/1000 M
|
| PoE power (per port) |
15.4 W,
30 W
|
| PoE power (total) |
96.2 W
|
| Switching capacity |
2 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3af,
IEEE 802.3at ,
IEEE 802.3u (100Base-TX),
IEEE 802.3x (Flow control),
IEEE 802.3af — DTE Power via MDI
|
Electrical specification

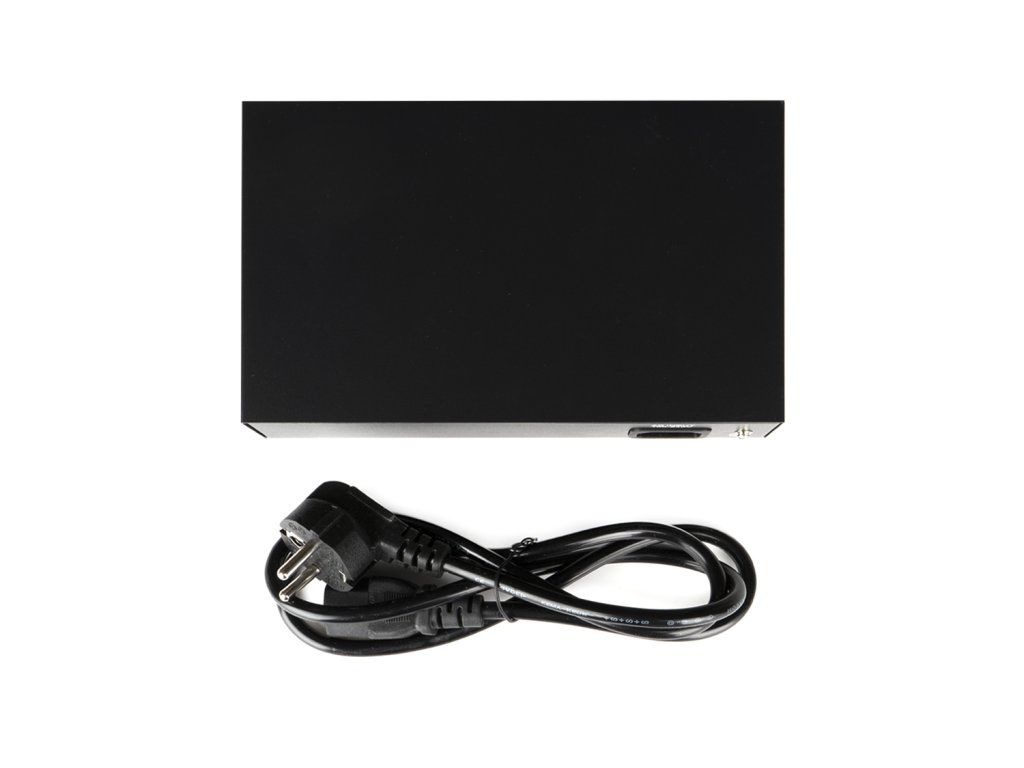

| AC Plug |
EU (Type C/F)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
200x120x45 mm
|
| Weight |
600 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
