5Mp motorized zoom IP camera IPD-VF5MP-IR AF Starlight SH v1.1
Code: 1773Related products
Product detailed description

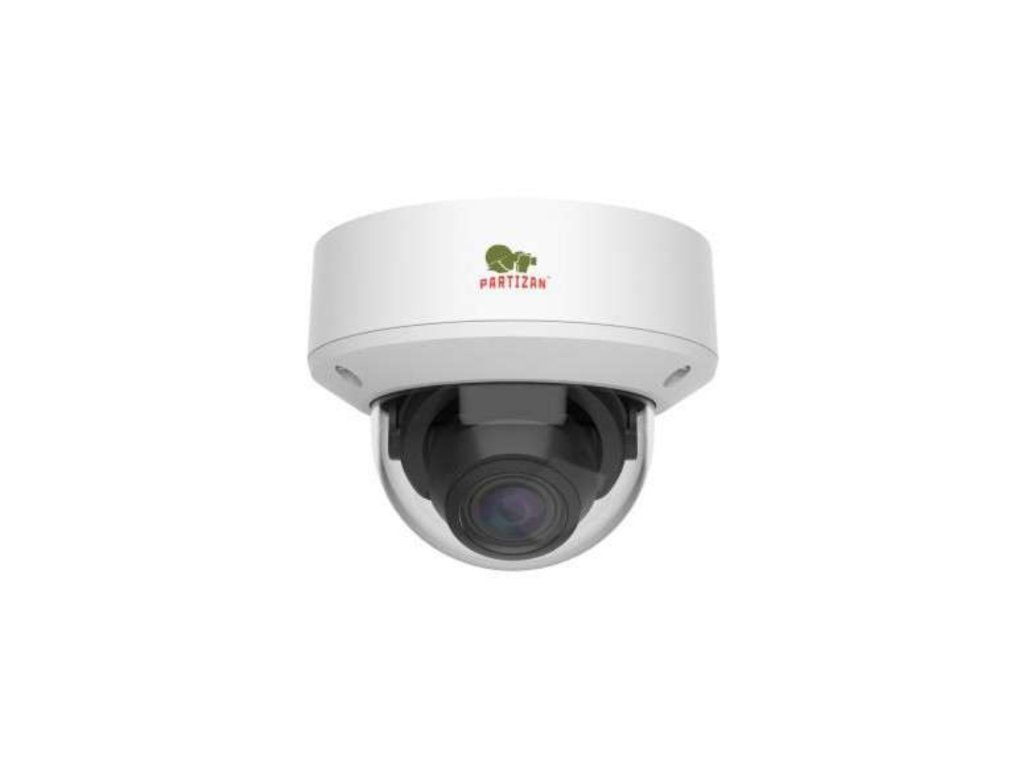

The Partizan IPD-VF5MP-IR AF Starlight SH is a 5MP IP camera from the SH series featuring a 1/2.7" CMOS sensor with Starlight technology and 120dB WDR for exceptional low-light performance. Equipped with a motorized 2.7–13.5mm varifocal lens and 50m IR illumination, this outdoor-ready camera delivers flexible surveillance coverage with advanced video analytics capabilities.
Key features
- ✓5MP resolution — main stream up to 2592×1944 at 25fps
- ✓Motorized varifocal lens — 2.7–13.5mm with 33°–110° horizontal view
- ✓Starlight sensitivity — 0.05 lux with F1.8 aperture
- ✓50m IR night vision — dual IR LED illumination
- ✓Smart analytics — vehicle, pedestrian, and license plate detection plus intrusion/line crossing alerts
- ✓Flexible encoding — H.265+, H.265, H.264+, and H.264 compression
- ✓Local storage — supports TF cards up to 512GB
- ✓Dual power options — PoE Class 0 or 24V DC
Built with a durable metal housing rated IP66, this camera operates in temperatures from -40°C to 60°C with humidity tolerance of 20–95% RH. Dimensions are 149mm diameter × 109mm height with a weight of 940g. Backed by a
Product details
| Model | IPD-VF5MP-IR |
|---|---|
| Version | AF Starlight SH v1.1 |
| SKU | 1773 |
| Series | SH series |
Encoder
| Main stream | 2592x1944@25 fps, 2592x1520@25 fps, 2048x1536@25 fps, 2304x1296@25 fps, 1920x1080@25 fps, 1280x960@25 fps |
|---|---|
| Sub stream | 1920x1080@25 fps, 1280x720@25 fps, 640x480@25 fps |
| Mobile stream | 640x480@25 fps, 320x240@25 fps |
| Video codec | H.264, H.265, H.265+, H.264+ |
Image sensor
| Sensor | 1/2.7" CMOS |
|---|---|
| Pixel size | 2.0x2.0 μm |
| Day/Night mode | Auto, Color, Black&White |
| Sensitivity | 0.05Lux |
| Dynamic range WDR | 120dB |
| S/N ratio | 48dB |
| Exposure modes | Manual, Auto |
| Exposure range | 1/25 - 1/20000 s |
| Video functions | BLC, HLC, WDR, AGC, Slow shutter, Privacy mask |
Lens
| Lens type | Spherical |
|---|---|
| Lens mount | М12 |
| Iris | F1.8 |
| Focal length | 2.7 - 13.5 mm |
| Zoom | Motorized |
| Horizontal view | 33 - 110° |
| Vertical view | 15 - 60° |
IR LED
| LED type | IR LED |
|---|---|
| Distance | ≤50 m |
| Number of LEDs | 2pcs |
Network
| Network interfaces | RJ-45 (10/100Base-T) |
|---|---|
| Network functions | DHCP, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, PPPoE, HTTPS, Partizan MAC protocol |
| Default IP address | DHCP |
| HTTP(s) port | 80 |
| Control port | 9988 |
| RTSP port | 554 |
| RTSP URL | rtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0 |
Default credentials
| Default login | admin |
|---|---|
| Default password | admin |
Software
| Smart analytics | Vechicle detection, Intrusion detection, Line crossing detection, Stationary object detection, Cross counting, Crowd density detection, Queue length detection, License plate detection, Pedestrian detection, Region entrance, Region exiting, AI schedule |
|---|---|
| Smart analytics (important note) | IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders. |
| Cloud abilities | Remote access, Cloud recording, PUSH notifications |
| Desktop apps | Partizan, Partizan Setup Tool |
| Mobile app | Partizan |
| Web browsers | Google Chrome, Edge, Mozilla Firefox |
| Web browser languages | English, French, German, Italian, Russian, Spanish |
| Web browser usage (important note) | Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global |
External interfaces
| TF card support | ≤512 Gb |
|---|
Mechanical specifications
| IP rating | IP66 |
|---|---|
| Dimensions | Ø149 x 109 mm |
| Weight | 940g |
| Housing material | Metal |
| Mount material | Metal |
Power
| DC power source | 24V |
|---|---|
| DC consumption | 800 mA |
| DC power supply | Not included |
| PoE | PoE Class 0 |
Operating conditions
| Humidity range | 20-95 % RH (non-condensing) |
|---|---|
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
Common
| Package contents | Drill template, Mounting kit |
|---|---|
| Warranty | 3 years |
Additional parameters
| Category: | Dome (Turret) |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.75 kg |
| EAN: | 5061099737630 |
| Series: | SH |
| Case type: | Dome (Turret) |
| Resolution: | 5Mp |
| Lens Type: | Motorized Varifocal Lens |
| Focus: | 2.7-13.5mm, 2.8mm |
| Night vision type: | Starlight (IR) |
| Night vision range: | 50m |
| Software support: | Partizan (PC/Android/iOS), Web interface (IE) |
| Housing material: | Metal + Plastic |
| Special features: | SD-card support, RTSP, Alarm red & blue lights, Slow Shutter, True WDR |
| Smart features: | Face Detection, Face Recognition, Perimeter Intrusion Detection, Line Crossing Detection, Cross Counting, Stationary Object Detection, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, License Plate Recognition, Human / Vehicle Detection, Rare Sound Detection |
