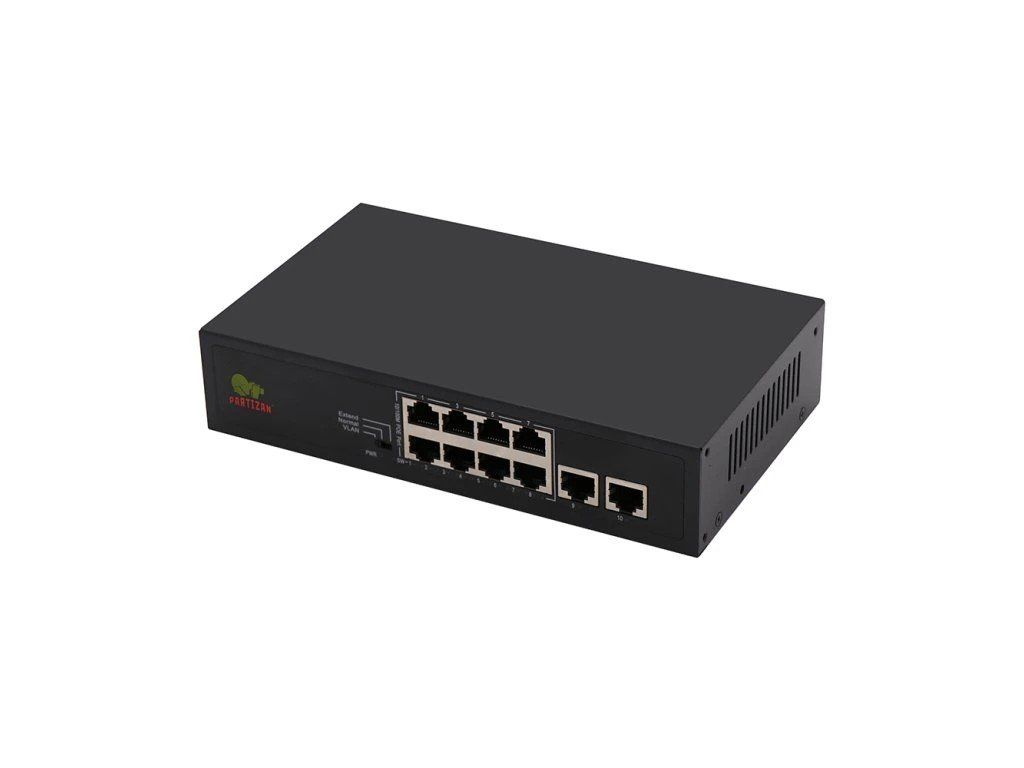

The Partizan PSW-8 v1.1 Gigabit is a CCTV-category PoE switch designed for network surveillance applications. This 10-port switch features 8 PoE ports and 2 regular ports with a switching capacity of 5.6.
The switch delivers PoE power options of 15.4 or 30 per port, with a total PoE power budget of 96.2. It supports multiple networking standards including IEEE 802.3i (10Base-T), 802.3u (100Base-TX), 802.3x (Flow control), 802.3af, and 802.3at for flexible device compatibility.
The PSW-8 operates on AC power supply rated at 100-240V and 50/60Hz with an EU (Type C/F) plug. The unit measures 200 x 118 x 44 mm and weighs 600. Operating temperature ranges from 0 to 40°C with humidity tolerance of 20-95% RH (non-condensing), while storage temperature extends from -30 to 50°C. The product is backed by a 3-year warranty.
Product details
| Model |
PSW-8
|
| Version |
v1.1 Gigabit
|
| SKU |
1935
|
Specification
| Gigabit ethernet ports |
2 x 100/1000 M
|
| Gigabit PoE ports |
8 x 100/1000 M
|
| PoE power (per port) |
30 W,
15.4 W
|
| PoE power (total) |
96.2 W
|
| Switching capacity |
5.6 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3u (100Base-TX),
IEEE 802.3x (Flow control),
IEEE 802.3af,
IEEE 802.3at
|
Electrical specification
| AC Plug |
EU (Type C/F)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
200x118x44 mm
|
| Weight |
600 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
