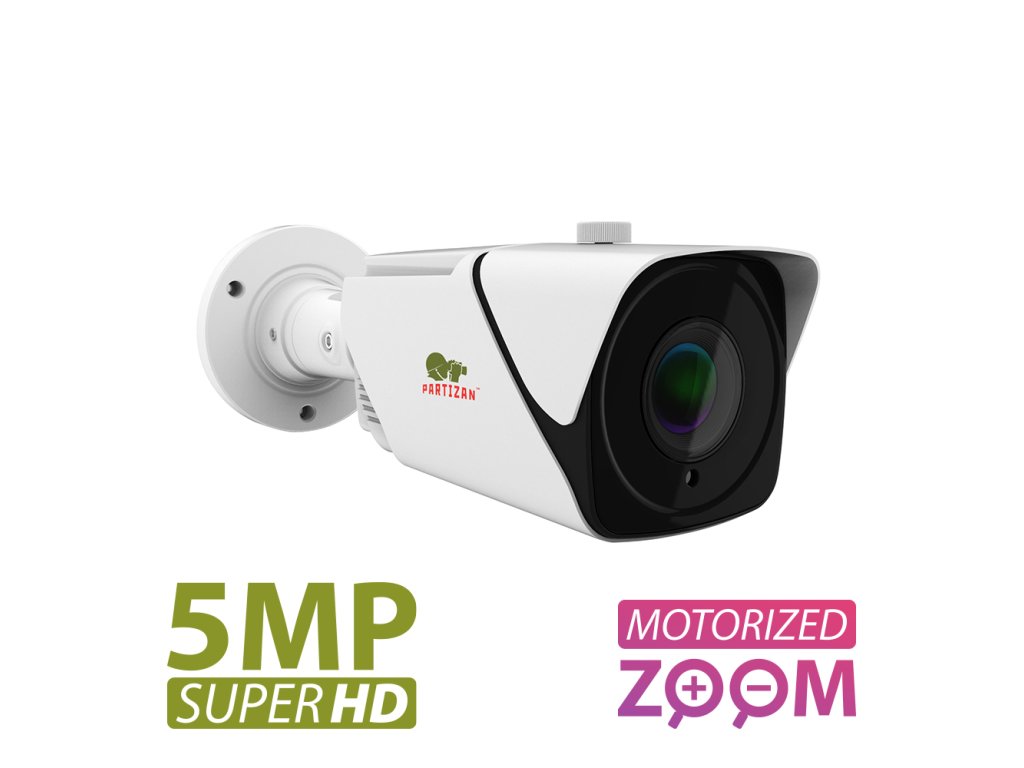

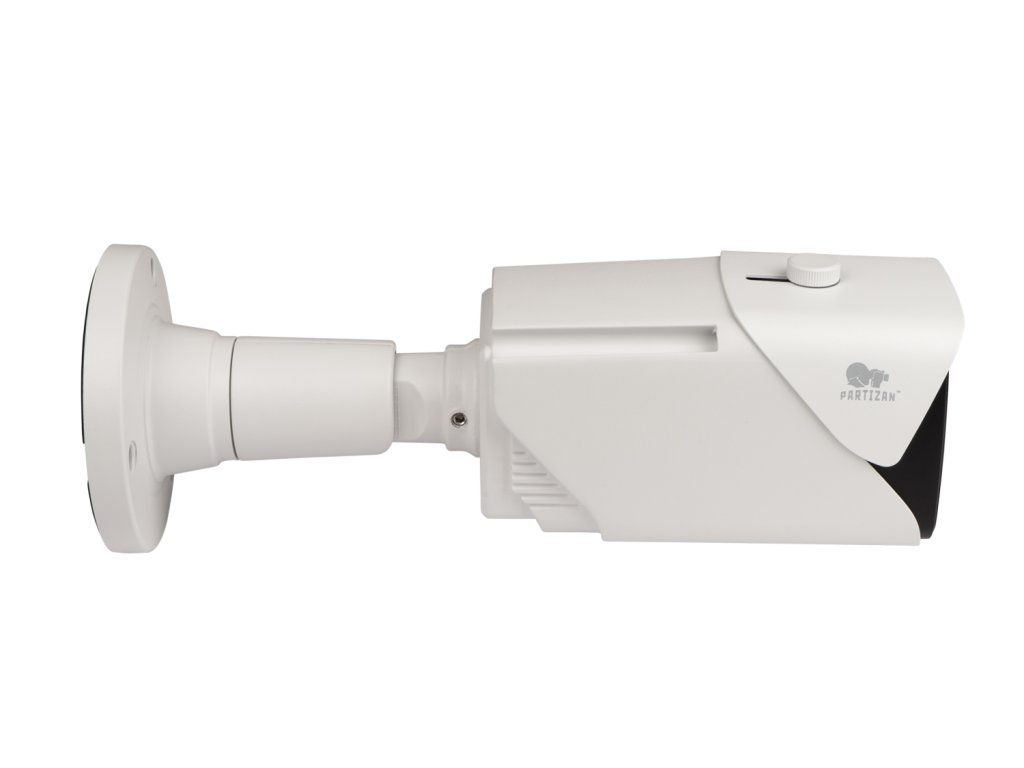

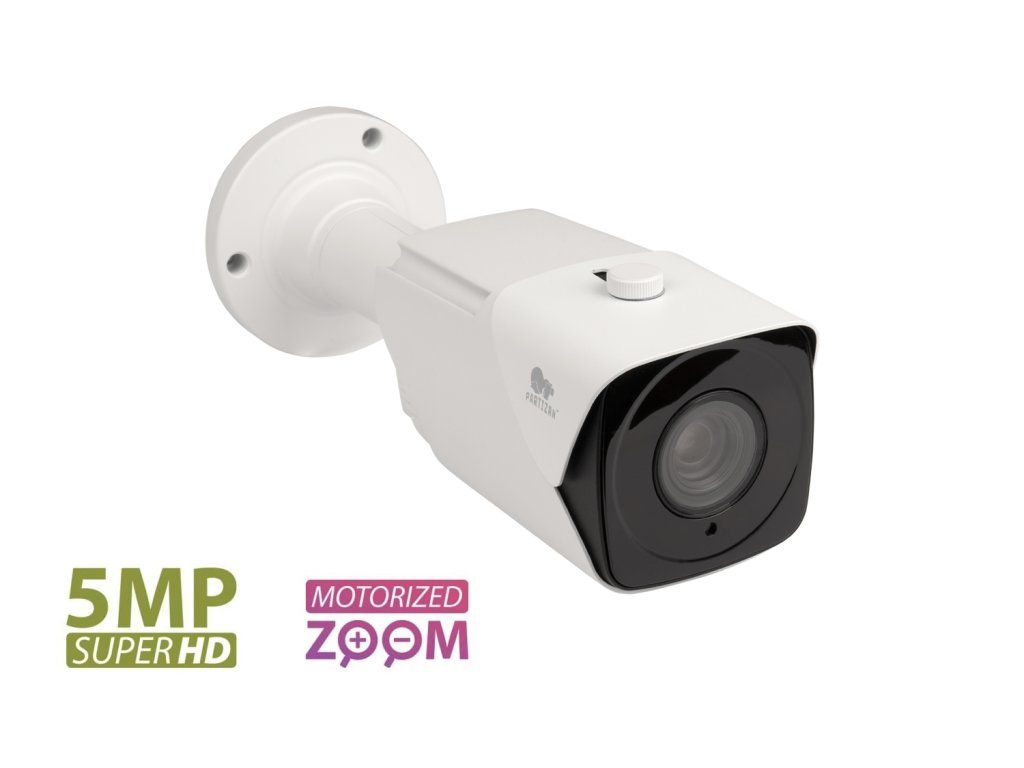

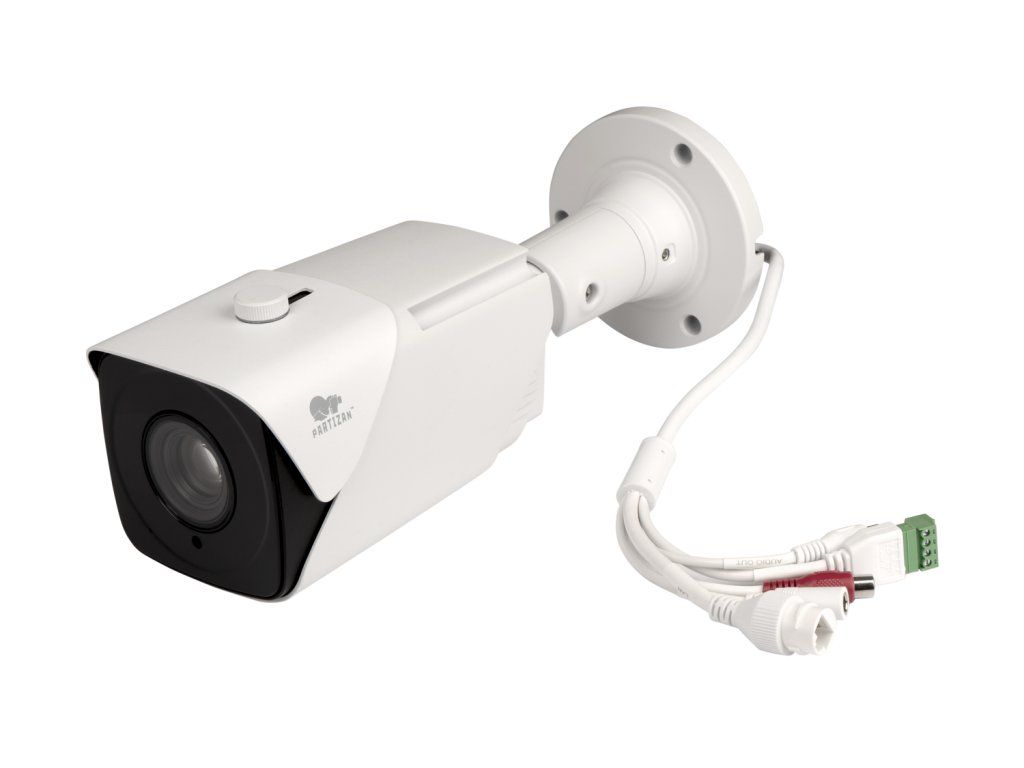

The Partizan IPO-VF5RP AF Starlight SH is a CCTV IP camera from the SH series, featuring a 1/2.7" CMOS sensor with Starlight technology and a motorized varifocal lens with 5-50mm focal length. This surveillance camera delivers main stream resolutions up to 2592×1944 at 25fps and supports H.264, H.264+, H.265, and H.265+ video codecs.
The camera offers 120dB wide dynamic range and 0.05 lux sensitivity for enhanced low-light performance, with auto, color, and black-and-white day/night modes. IR LED illumination reaches 80 meters using 8 LEDs. The motorized zoom provides horizontal viewing angles from 5.5° to 75° and vertical angles from 4.9° to 60°. Smart analytics include face detection, vehicle detection, pedestrian detection, intrusion detection, line crossing detection, cross counting, crowd density detection, queue length detection, and license plate recognition. The camera supports audio input and output, one alarm input, one alarm output, and TF card storage up to 256GB. Cloud capabilities include remote access, cloud recording, and PUSH notifications.
The metal housing with IP66 rating operates from -40°C to 60°C at 20-95% relative humidity. Power options include 12V DC with 800mA consumption or PoE Class 0. Dimensions are 172.5×90×90mm with 1440g weight. The camera includes a 3-year warranty.
Product details
| Model |
IPO-VF5RP
|
| Version |
AF Starlight SH
|
| SKU |
1949
|
| Series |
SH series
|
Encoder
| Main stream |
2592x1944@25 fps, 2592x1520@25 fps, 2048x1536@25 fps, 2304x1296@25 fps, 1920x1080@25 fps, 1280x960@25 fps
|
| Sub stream |
1920x1080@25 fps, 1280x720@25 fps, 640x480@25 fps
|
| Mobile stream |
640x480@25 fps, 320x240@25 fps
|
| Video codec |
H.264,
H.264+,
H.265,
H.265+
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.0x2.0 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.05 Lux
|
| Dynamic range WDR |
120 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/5 - 1/20000 s
|
| Video functions |
BLC,
HLC,
WDR,
AGC,
Slow shutter,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.8
|
| Focal length |
5 - 50 mm
|
| Zoom |
Motorized
|
| Horizontal view |
5.5 - 75°
|
| Vertical view |
4.9 - 60°
|
IR LED
| LED type |
IR LED
|
| Distance |
≤80 m
|
| Number of LEDs |
8 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DHCP,
DNS,
DDNS,
RTP/RTSP,
PPPoE,
SMTP,
NTP,
UPnP,
SNMP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
9988
|
| RTSP port |
554
|
| RTSP URL |
rtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Face detection,
Vechicle detection,
Pedestrian detection,
Intrusion detection,
Line crossing detection,
Cross counting,
Crowd density detection,
Queue length detection,
License plate detection,
License plate recognition,
Region entrance,
Region exiting,
AI schedule
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan SH series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Partizan Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
French,
German,
Italian,
Russian,
Spanish
|
| Web browser usage (important note) |
Web browser access requires Partizan SurveillancePluginV2 installation for device setup and live view. Available at www.apps.partizan.global
|

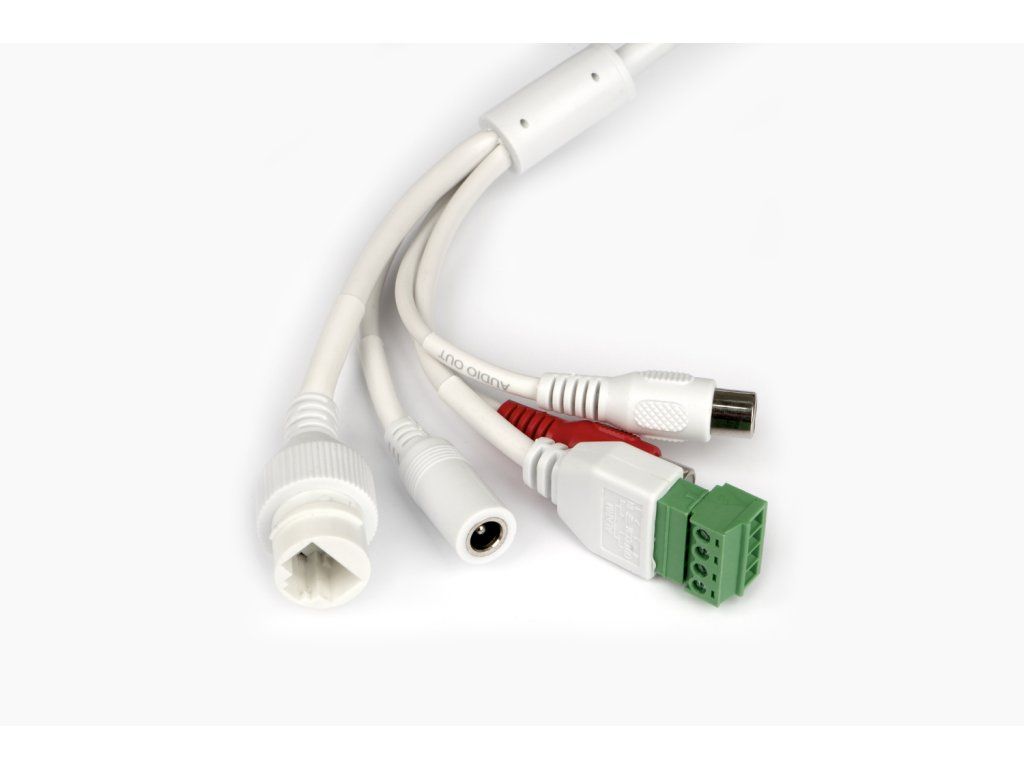

External interfaces
| Alarm inputs |
1
|
| Alarm outputs |
1
|
| Mic |
Audio input
|
| Speaker |
Audio output
|
| TF сard support |
≤256 Gb
|
Mechanical specifications
| IP rating |
IP66
|
| Dimensions |
172.5 x 90 x 90 mm
|
| Weight |
1440 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
800 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
