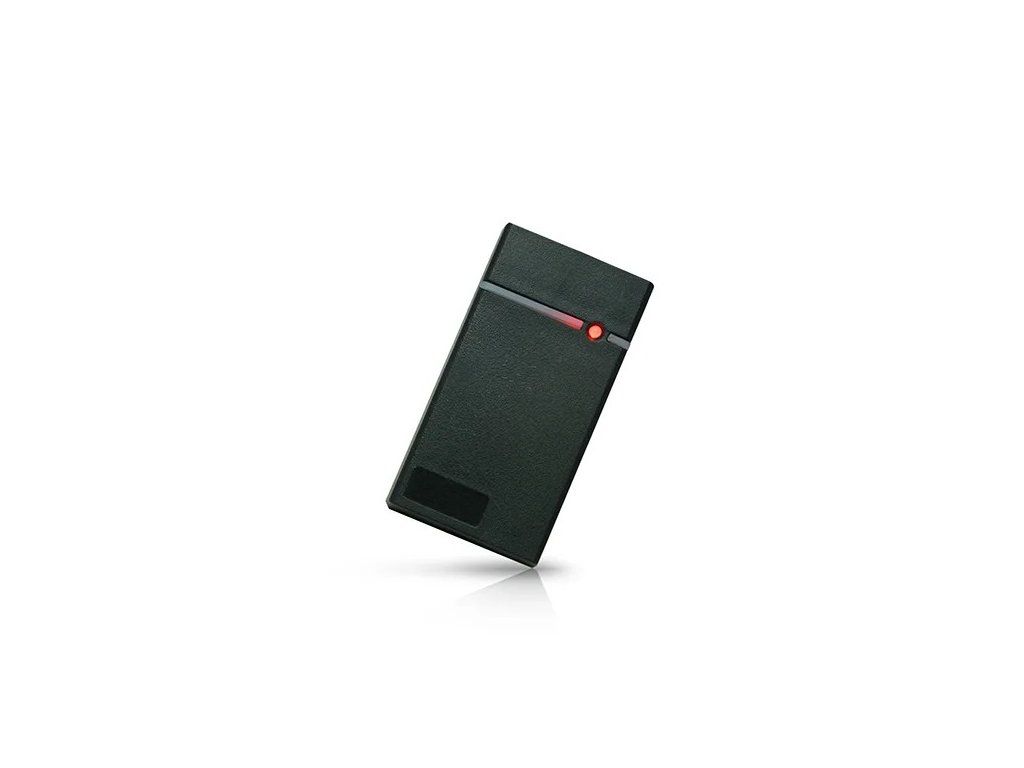

PAR-E1 Reader Black (EM-Marin)
Code: 231Related products
Product detailed description
The Partizan PAR-E1 Black is a compact access control reader designed for credential-based entry systems. Operating in reader mode, this device supports 125 kHz EM4100 RF standard cards and outputs via Wiegand 26 protocol for seamless integration with access control panels.
Key features
- ✓125 kHz EM4100 support — reads standard proximity cards and fobs
- ✓Wiegand 26 output — compatible with most access control systems
- ✓External LED control — allows visual status indication from controller
- ✓External buzzer control — enables audible feedback management
- ✓IP66 rated — protected against dust and powerful water jets
- ✓Compact design — measures just 80 × 40 × 10 mm at 60g
The PAR-E1 operates on 12V DC with 50mA continuous current draw. Suitable for environments from -20°C to 40°C with 20-95% RH non-condensing humidity. Backed by a 3-year warranty.
Product details
| Model | PAR-E1 |
|---|---|
| Version | Black |
| SKU | 231 |
Interfaces
| Working modes | Reader |
|---|---|
| RF standards | 125 kHz EM4100 |
| Wiegand output | 26 bits |
| External LED control | yes |
| External buzzer control | yes |
Electrical specifications
| Operating voltage | 12 V DC |
|---|---|
| Continuous current | ≤ 50 mA |
Mechanical specifications
| IP rating | IP 66 |
|---|---|
| Dimensions | 80 x 40 x 10 mm |
| Weight | 60 g |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -20 - 40 °C |
| Storage temperature | -30 - 50 °C |
Common
| Warranty | 3 years |
|---|
Wiring diagram
Additional parameters
| Category: | Card Readers |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.059 kg |
| EAN: | 5060491861721 |
