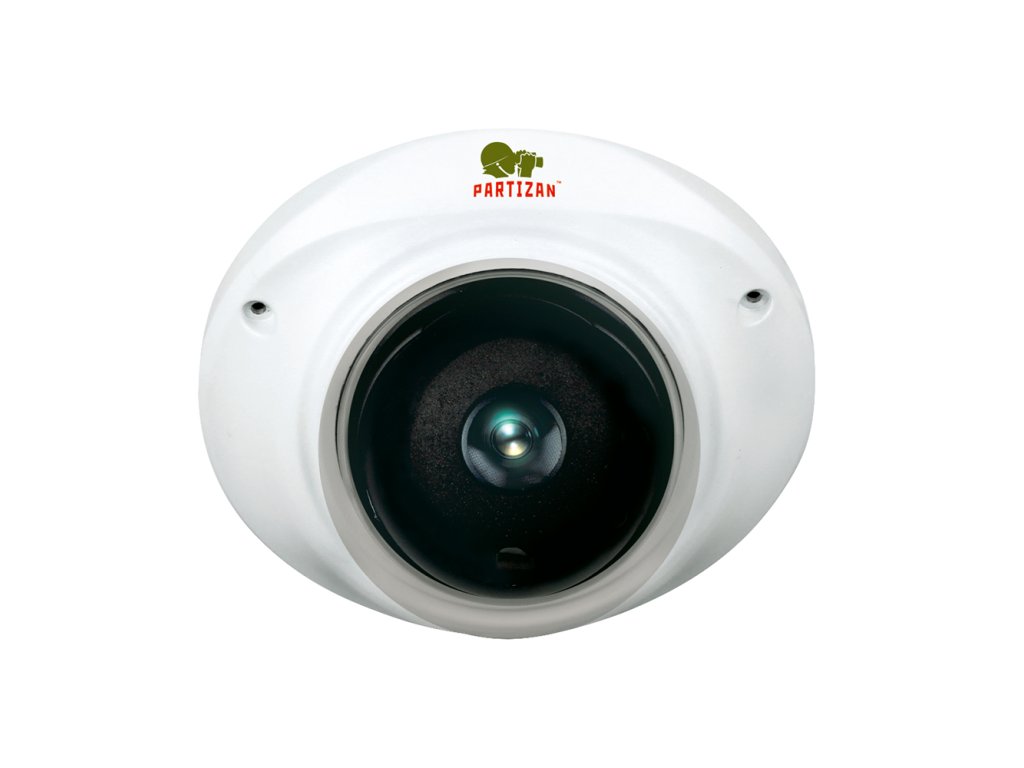

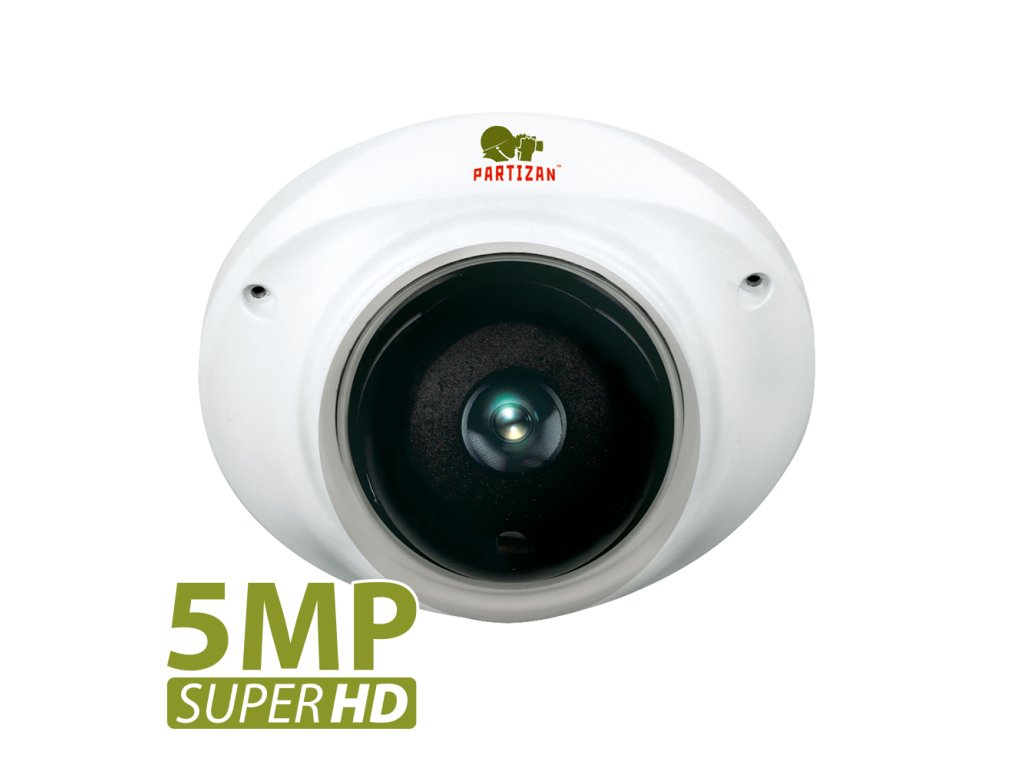

The Partizan IPD-5SP VP Cloud v1.1 is a cloud-enabled IP camera from the Cloud series, featuring a 1/2.8″ Sony Starvis Starlight sensor with 5MP resolution capability. This dome-style camera supports multiple video resolutions including 2592×1944, 2560×1440, and 1920×1080, all at 25fps on the main stream, with H.264 and H.265 video compression.
The camera incorporates a spherical M12 mount lens with 2.8mm focal length, F1.2 iris, providing a 91° horizontal and 75° vertical field of view. With 72dB wide dynamic range, 48dB signal-to-noise ratio, and sensitivity down to 0.0001 lux, the camera performs effectively in challenging lighting conditions. Day/Night modes include Auto, Color, and Black&White options. Smart analytics features include human detection and face detection. Cloud capabilities encompass remote access, cloud recording, and PUSH notifications. The camera supports network functions including Cloud, DDNS, IP Filter, Email, NTP, UPnP, FTP, and RTP/RTSP protocols via RJ-45 10/100Base-T interface.
The metal housing measures 120mm diameter by 62mm height, weighing 360g, with IP44 protection rating. Power options include 12V DC (300mA consumption) or PoE Class 0. Operating temperature ranges from -40°C to 60°C with 20-95% relative humidity. The product includes a 3-year warranty.
Product details
| Model |
IPD-5SP
|
| Version |
VP Cloud v1.1
|
| SKU |
2521
|
| Series |
Cloud series
|
Encoder
| Main stream |
2592x1944@25 fps, 2560x1440@25 fps, 1920x1080@25 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.264,
H.265
|
Image sensor
| Sensor |
1/2.8″ Sony Starvis Starlight
|
| Pixel size |
2.0x2.0 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
1.0E-4 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/50 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.2
|
| Focal length |
2.8 mm
|
| Horizontal view |
91°
|
| Vertical view |
75°
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Cloud,
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
FTP,
RTP/RTSP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Face detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP44
|
| Dimensions |
Ø120 x 62 mm
|
| Weight |
360 g
|
| Housing material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
300 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
