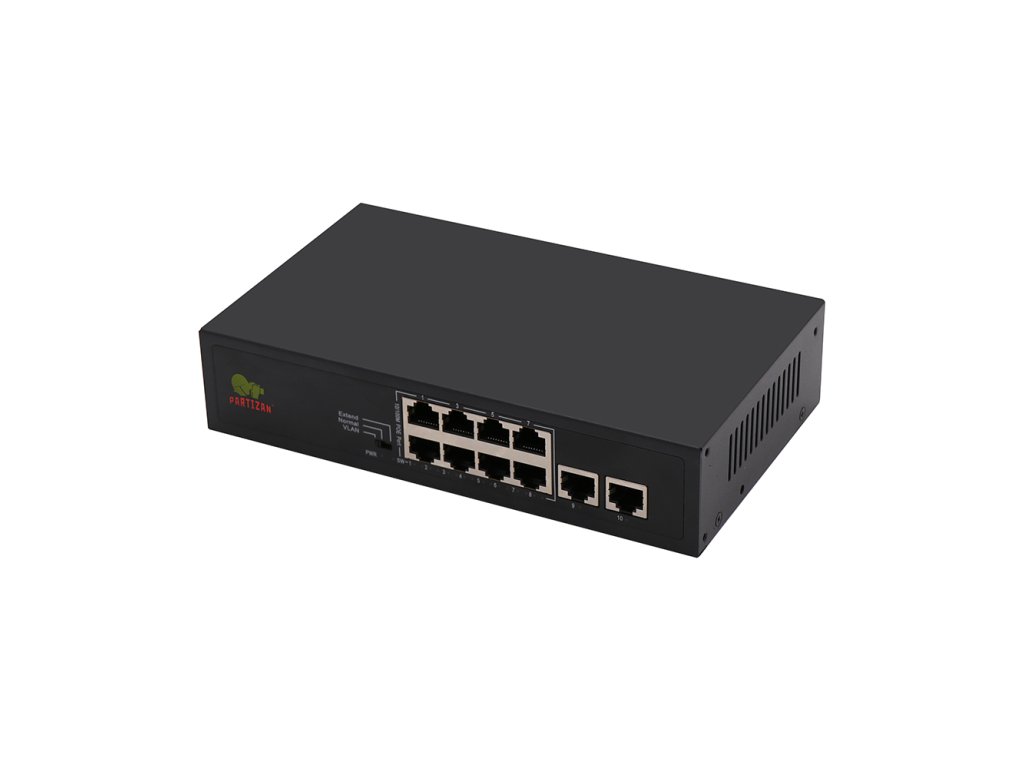

The Partizan PSW-8 v1.0 (UK plug) is a CCTV-oriented Power over Ethernet switch featuring a UK Type G plug configuration. This network switch provides 8 PoE ports alongside 2 regular ports, delivering a total PoE power budget of 96.2 watts with per-port power options of 15.4 and 30 watts.
The PSW-8 supports IEEE 802.3af and 802.3at PoE standards, enabling compatibility with a range of powered devices. The switch offers a switching capacity of 2 and is designed to distribute power efficiently across its 8 PoE-enabled ports for connecting network cameras and related equipment.
This unit operates on AC power supply rated at 100-240V and 50/60Hz, with compact dimensions of 200 x 120 x 45mm and a weight of 600 grams. Operating temperature ranges from 0 to 40°C with humidity tolerance of 20-95% RH non-condensing, while storage temperature spans -30 to 50°C. The product is backed by a 3-year warranty.
Product details
| Model |
PSW-8
|
| Version |
v1.0 (UK plug)
|
| SKU |
2756
|
Specification
| Gigabit ethernet ports |
2 x 100/1000 M
|
| Gigabit PoE ports |
8 x 100/1000 M
|
| PoE power (per port) |
15.4 W,
30 W
|
| PoE power (total) |
96.2 W
|
| Switching capacity |
2 Gbps
|
| Supported standards |
IEEE 802.3af,
IEEE 802.3at
|
Electrical specification
| AC Plug |
UK (Type G)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
200x120x45 mm
|
| Weight |
600 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
