12Mp Fisheye IP camera IPF-5SP 4K v1.0
Code: 2762Related products
Product detailed description

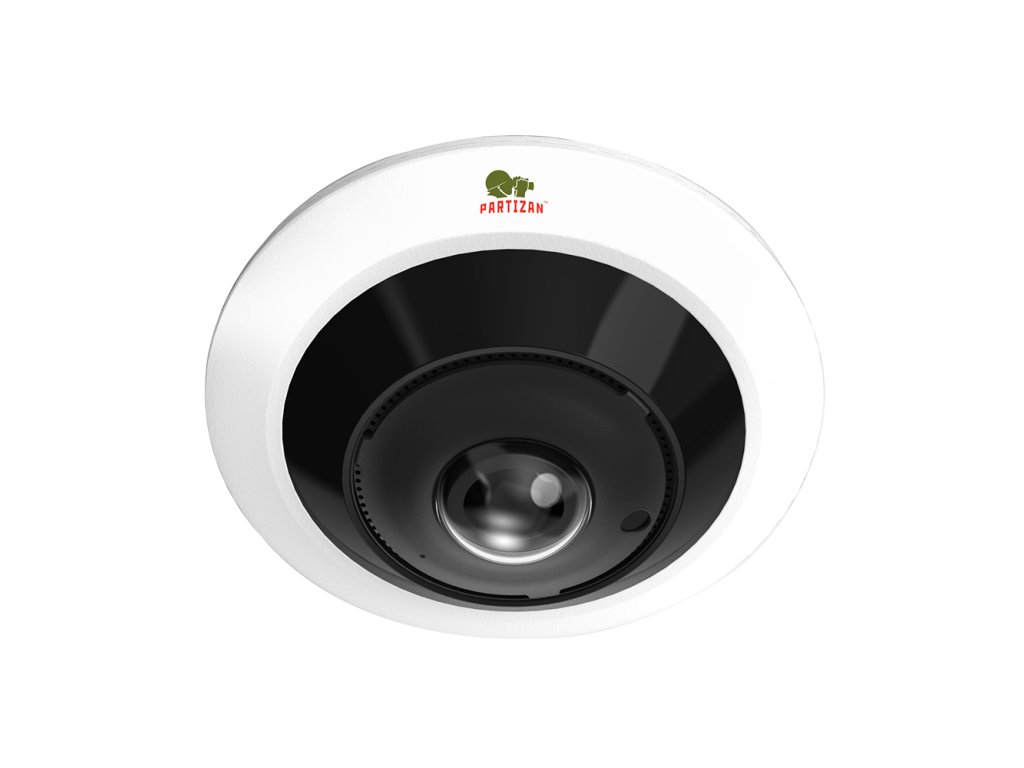

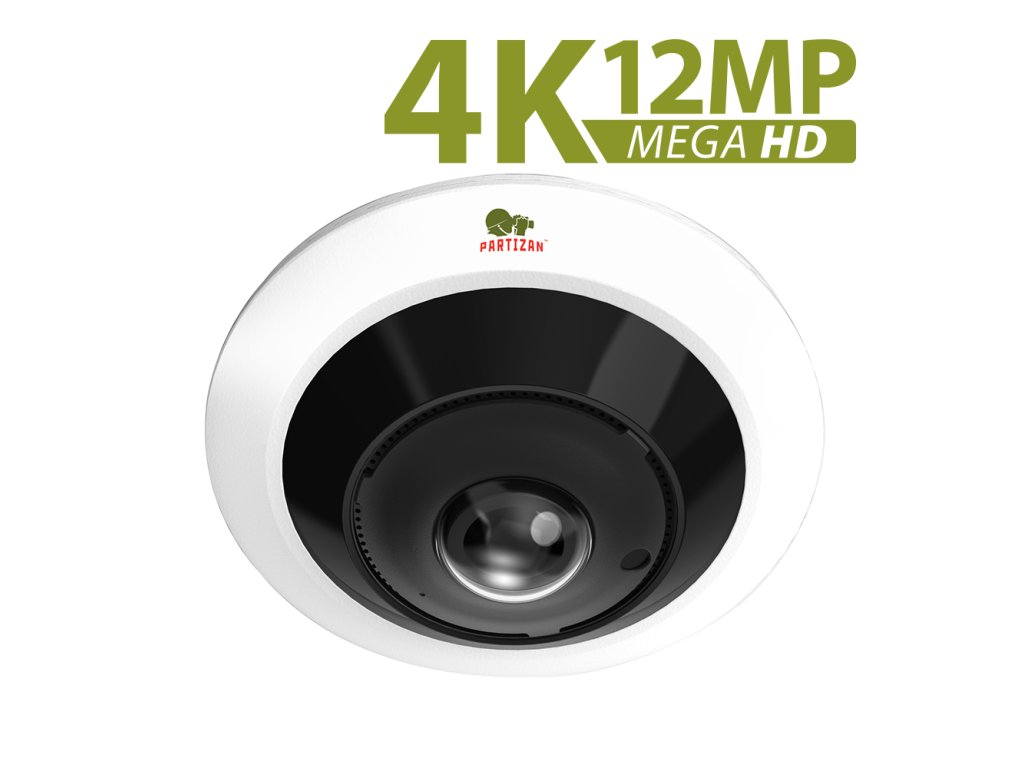

The Partizan IPF-5SP 4K is a fisheye IP camera from the SH series, featuring a 1/2.3" CMOS sensor with 360° horizontal and 180° vertical viewing angles. This compact surveillance solution supports main stream resolutions up to 3840×3000 at 15fps with H.264+ and H.265+ video compression.
Key features
- ✓Full panoramic coverage — 360° horizontal and 180° vertical field of view
- ✓Smart analytics — intrusion detection, line crossing, heat map, and audio detection
- ✓Two-way audio — built-in microphone and speaker
- ✓Flexible power options — 12V DC or PoE Class 0
- ✓Local storage — TF card support up to 256GB
- ✓Cloud connectivity — remote access, cloud recording, and PUSH notifications
- ✓Alarm I/O — 1 input and 1 output for external sensors
Built with a metal housing and IP66 rating, the IPF-5SP operates reliably in temperatures from -40°C to 60°C and humidity levels of 20-95% RH. The compact design measures 120mm diameter × 55mm height and weighs 400g, backed by a 3-year warranty.
Product details
| Model | IPF-5SP |
|---|---|
| Version | 4K v1.0 |
| SKU | 2762 |
| Series | SH series |
Encoder
| Main stream | 3840x3000@15 fps, 3000x3000@25 fps, 2560x2560@25 fps, 2160x2160@25 fps, 1520x1520@25 fps, 1080x1080@25 fps, 720x720@25 fps |
|---|---|
| Sub stream | 1280x960@15 fps, 640x480@15 fps |
| Video codec | H.264+, H.265+ |
| Audio codec | G711A, G711U |
Image sensor
| Sensor | 1/2.3" CMOS |
|---|---|
| Pixel size | 1.85x1.85 μm |
| Day/Night mode | Auto, Color, Black&White |
| Sensitivity | 0.01 Lux |
| Dynamic range WDR | 72 dB |
| S/N ratio | 48 dB |
| Exposure modes | Auto, Manual |
| Exposure range | 1/5 - 1/20000 s |
| Video functions | AES, AGC, AWB, BLC, OSD, Privacy mask |
Lens
| Lens type | Spherical |
|---|---|
| Lens mount | М12 |
| Iris | F2.0 |
| Focal length | 1.6 mm |
| Horizontal view | 360° |
| Vertical view | 180° |
IR LED
| LED type | IR LED |
|---|---|
| Distance | ≤5 m |
| Number of LEDs | 3 pcs |
Network
| Network interfaces | RJ-45 (10/100Base-T) |
|---|---|
| Network functions | DDNS, IP FILTER, Email, NTP, PPPoE, UPnP, FTP, RTP/RTSP |
| Default IP address | DHCP |
| HTTP(s) port | 80 |
| Control port | 9988 |
| RTSP port | 554 |
| RTSP URL | rtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0 |
Default credentials
| Default login | admin |
|---|---|
| Default password | admin |
Software
| Smart analytics | Intrusion detection, Line crossing detection, Stationary object detection, Cross counting, Heat map, Queue length detection, Audio detection |
|---|---|
| Smart analytics (important note) | IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan SH series video recorders. |
| Cloud abilities | Remote access, Cloud recording, PUSH notifications |
| Desktop apps | Partizan, Partizan Setup Tool |
| Mobile app | Partizan |
| Web browsers | Google Chrome, Mozilla Firefox, Edge |
| Web browser languages | English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |
| Web browser usage (important note) | Web browser access requires Partizan SurveillancePluginV2 installation for device setup and live view. Available at www.apps.partizan.global |
External interfaces
| Alarm inputs | 1 |
|---|---|
| Alarm outputs | 1 |
| Mic | Built-in microphone |
| Speaker | Built-in speaker |
| TF сard support | ≤256 Gb |
Mechanical specifications
| IP rating | IP66 |
|---|---|
| Dimensions | Ø120 x 55 mm |
| Weight | 400 g |
| Housing material | Metal |
Power
| DC power source | 12 V |
|---|---|
| DC consumption | 600 mA |
| PoE | PoE Class 0 |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
Common
| Warranty | 3 years |
|---|
Additional parameters
| Category: | Dome (Turret) |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.45 kg |
| EAN: | 5061099730839 |
| Series: | SH |
| Case type: | Fisheye |
| Resolution: | 12Mp |
| Lens Type: | Fixed Lens |
| Focus: | 1.6mm |
| Night vision range: | 5m |
| Software support: | Partizan (PC/Android/iOS), Partizan Device Manager |
| Housing material: | Metal |
| Alarm I/O: | 1/1 |
| Special features: | SD-card support, RTSP, Built-in Speaker & Mic |
