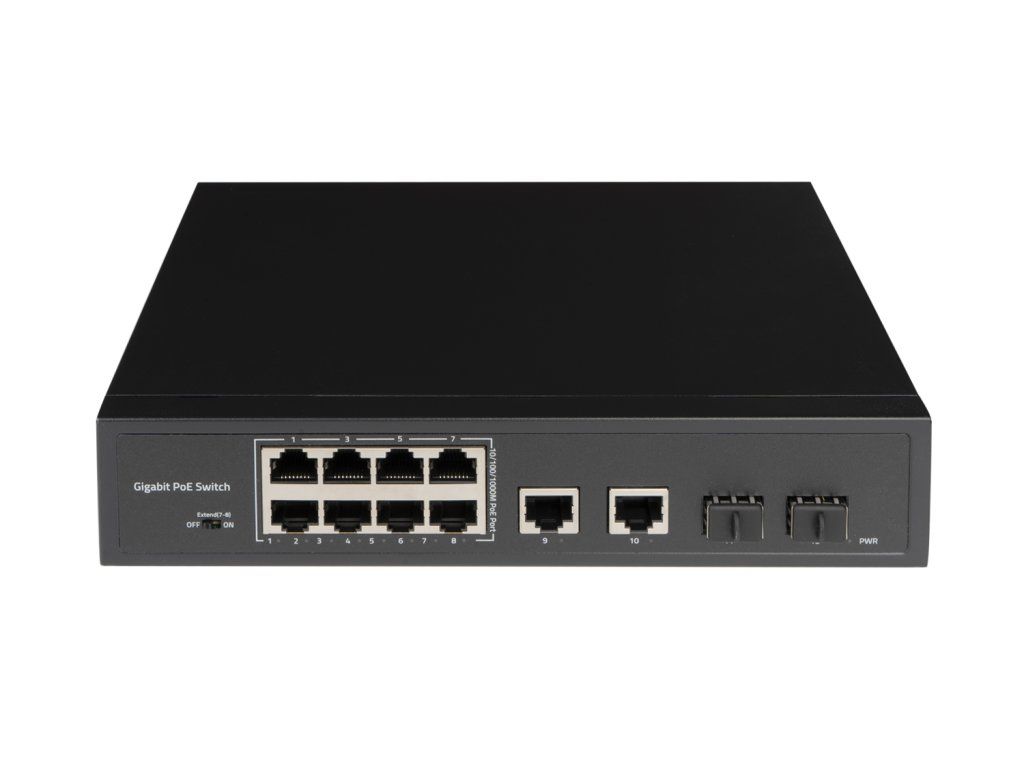

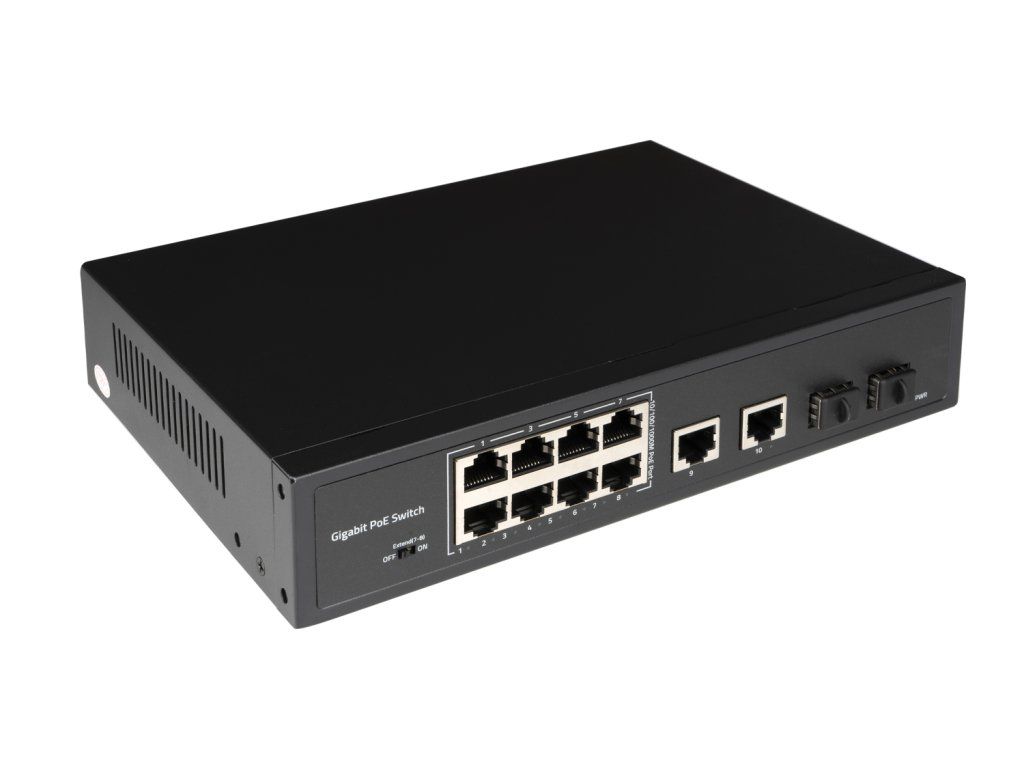

The Partizan PSW-8 1.3 SFP is a CCTV switch that features 8 PoE ports and 2 regular ports, ensuring versatile connectivity for surveillance systems. It offers a total PoE power of 96.2 watts and supports various Ethernet standards, including IEEE 802.3i through 802.3at, enhancing its compatibility with multiple devices.
This model allows for individual PoE power output of either 15.4 watts or 30 watts per port, making it suitable for powering various networked devices. With a switching capacity of 20 Gbps, it provides efficient data transfer across the network. The device operates within a temperature range of 0 – 40 °C and supports humidity levels of 20-95% RH (non-condensing), ensuring reliable performance in diverse environments.
The PSW-8 has dimensions of 268 mm x 181 mm x 44 mm and weighs 1100 grams, making it manageable for installations in various locations. It includes a 3-year warranty, reflecting confidence in its durability and performance.
Product details
| Model |
PSW-8
|
| Version |
1.3 SFP
|
| SKU |
2778
|
Specification
| Gigabit SFP ports |
2 x 1000 M
|
| Gigabit ethernet ports |
2 x 100/1000 M
|
| Gigabit PoE ports |
8 x 100/1000 M
|
| PoE power (per port) |
15.4 W,
30 W
|
| PoE power (total) |
120 W
|
| Switching capacity |
20 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3u (100Base-TX),
IEEE 802.3ab (1000Base-T),
IEEE 802.3z 1000BASE-X,
IEEE 802.3x (Flow control),
IEEE 802.3af — DTE Power via MDI,
IEEE 802.3af,
IEEE 802.3at
|
Electrical specification

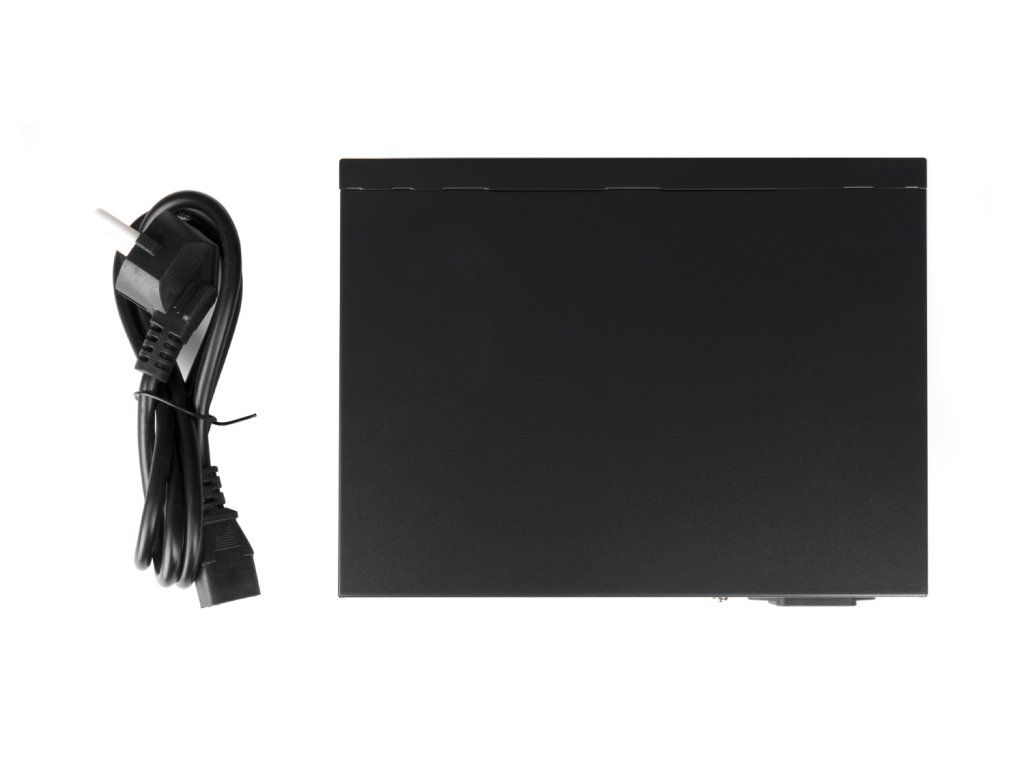

| AC Plug |
EU (Type C/F)
|

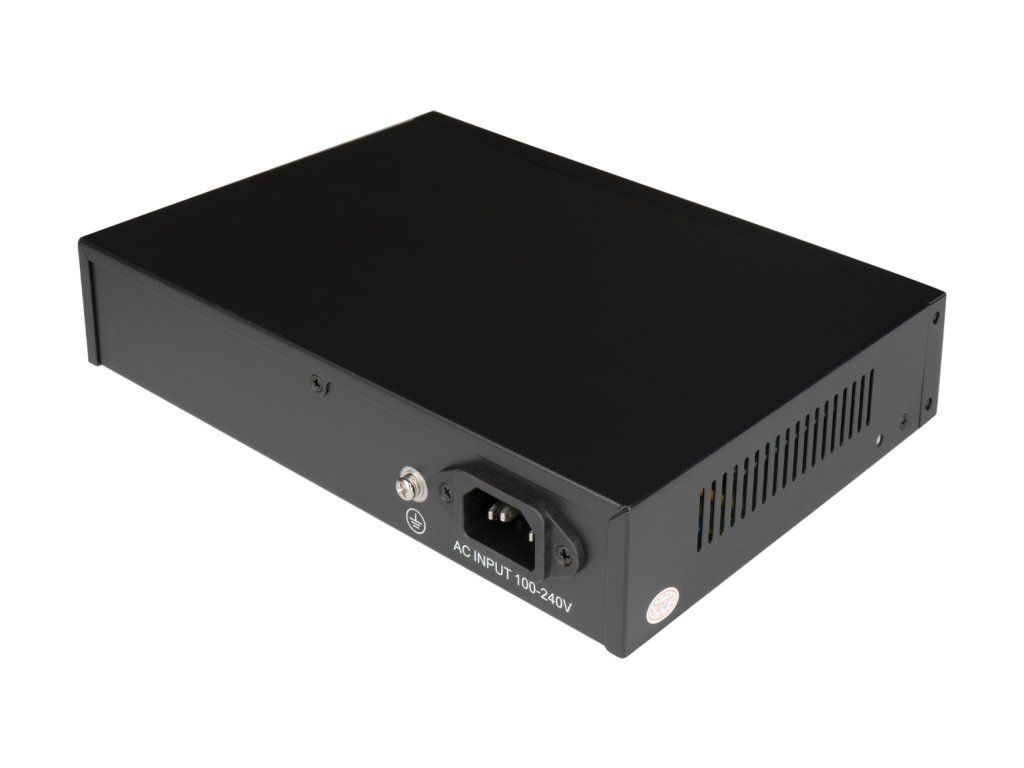

| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
220x161x45 mm
|
| Weight |
920 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
