5Mp varifoсal IP camera IPO-VF5MP Full Colour v1.0 Cloud
Code: 2899Related products
Product detailed description

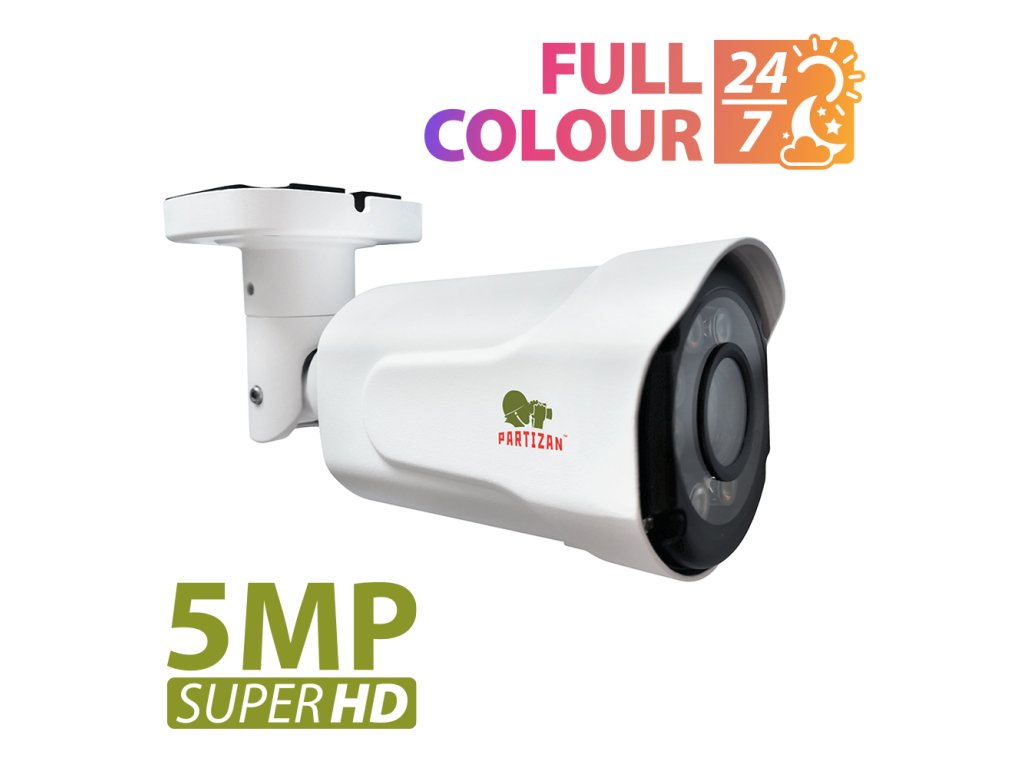

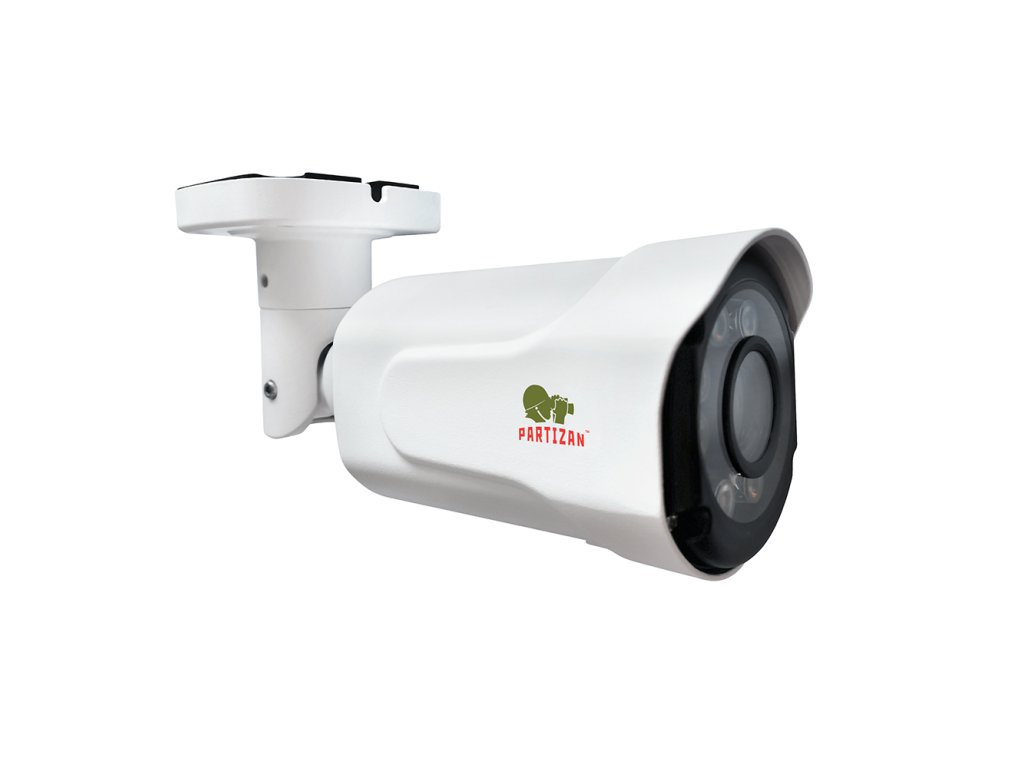

The Partizan IPO-VF5MP Full Colour is a cloud-enabled IP camera from the Cloud series, featuring a 1/2.8" CMOS sensor with up to 2880×1616 resolution at 25fps. This varifocal camera offers both IR and white LED illumination for full colour imaging in low-light conditions, with H.265/H.265X compression for efficient bandwidth usage.
Key features
- ✓Varifocal lens — 2.8-12mm focal length with 27°-91° horizontal view
- ✓Dual illumination — IR LED and white LED with 40m range
- ✓Cloud connectivity — remote access, cloud recording, and PUSH notifications
- ✓Human detection — built-in smart analytics
- ✓Flexible power — 12V DC or PoE Class 0 support
- ✓Rugged construction — IP66-rated metal housing
- ✓72dB WDR — enhanced image clarity in challenging lighting
The camera operates in temperatures from -40°C to 60°C with 20-95% humidity tolerance. Power consumption is 800mA at 12V DC. Dimensions are 79×87.5×140mm with a weight of 750g. Compatible with PMB-4 and PMB-100 mounts. Backed by a 3-year warranty.
Product details
| Model | IPO-VF5MP |
|---|---|
| Version | Full Colour v1.0 Cloud |
| SKU | 2899 |
| Series | Cloud series |
Encoder
| Main stream | 2880x1616@25 fps, 2560x1440@25 fps, 1920x1080@25 fps, 1280x720@25 fps |
|---|---|
| Sub stream | 704x576@20 fps, 352x576@20 fps, 352x288@20 fps |
| Video codec | H.265, H.265X |
Image sensor
| Sensor | 1/2.8" CMOS |
|---|---|
| Pixel size | 2.0x2.0 μm |
| Day/Night mode | Auto, Color, Black&White, Full Color |
| Sensitivity | 0.01Lux |
| Dynamic range WDR | 72dB |
| S/N ratio | 48dB |
| Exposure modes | Auto, Manual |
| Exposure range | 1/50 - 1/10000 s |
| Video functions | AES, AGC, AWB, BLC, OSD, Privacy mask, WDR, Slow shutter |
Lens
| Lens type | Spherical |
|---|---|
| Lens mount | М12 |
| Iris | F1.4 |
| Focal length | 2.8 - 12 mm |
| Zoom | Manual |
| Horizontal view | 27 - 91° |
| Vertical view | 20 - 75° |
IR LED
| LED type | IR LED, White LED |
|---|---|
| Distance | ≤40 m |
| Number of LEDs | 8pcs |
Network
| Network interfaces | RJ-45 (10/100Base-T) |
|---|---|
| Network functions | DDNS, IP FILTER, Email, NTP, UPnP, FTP, RTP/RTSP, Cloud, AlarmServer, Mobile reported, Serial pass-through |
| Default IP address | DHCP |
| HTTP(s) port | 80 |
| Control port | 34567 |
| RTSP port | 554 |
| RTSP URL | rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp |
Default credentials
| Default login | admin |
|---|---|
| Default password | admin |
Software
| Smart analytics | Human detection |
|---|---|
| Smart analytics (important note) | IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders. |
| Cloud abilities | Remote access, Cloud recording, PUSH notifications |
| Desktop apps | Partizan, Partizan Setup Tool |
| Mobile app | Partizan |
| Web browsers | Google Chrome, Mozilla Firefox, Edge |
| Web browser languages | English, Russian, Arabic, French, Polish, Romanian, Hungarian, Italian, Czech |
| Web browser usage (important note) | Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global |
Mechanical specifications
| IP rating | IP66 |
|---|---|
| Dimensions | 79 x 87.5 x 140 mm |
| Weight | 750g |
| Housing material | Metal |
| Mount material | Metal |
| Compatible mounts | PMB-4, PMB-100 |
Power
| DC power source | 12V |
|---|---|
| DC consumption | 800 mA |
| PoE | PoE Class 0 |
Operating conditions
| Humidity range | 20-95 % RH (non-condensing) |
|---|---|
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
Common
| Package contents | Drill template, Mounting kit |
|---|---|
| Warranty | 3 years |
Additional parameters
| Category: | Bullet |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.76 kg |
| EAN: | 5061099730631 |
| Series: | Cloud |
| Case type: | Bullet |
| Resolution: | 5Mp |
| Lens Type: | Manual Varifocal Lens |
| Focus: | 2.8-12mm |
| Night vision type: | Full Colour (IR + White LED) |
| Night vision range: | 40m |
| Software support: | Partizan (PC/Android/iOS), Partizan Device Manager |
| Housing material: | Metal |
| Special features: | RTSP |
| Smart features: | Human Detection |
