4Mp fix focus IP camera IPD-4SP-IR FADA SH Black

Code: 3527
In stock (>20 pcs)
Delivery to:
20/11/2026

Detailed information

Product detailed description

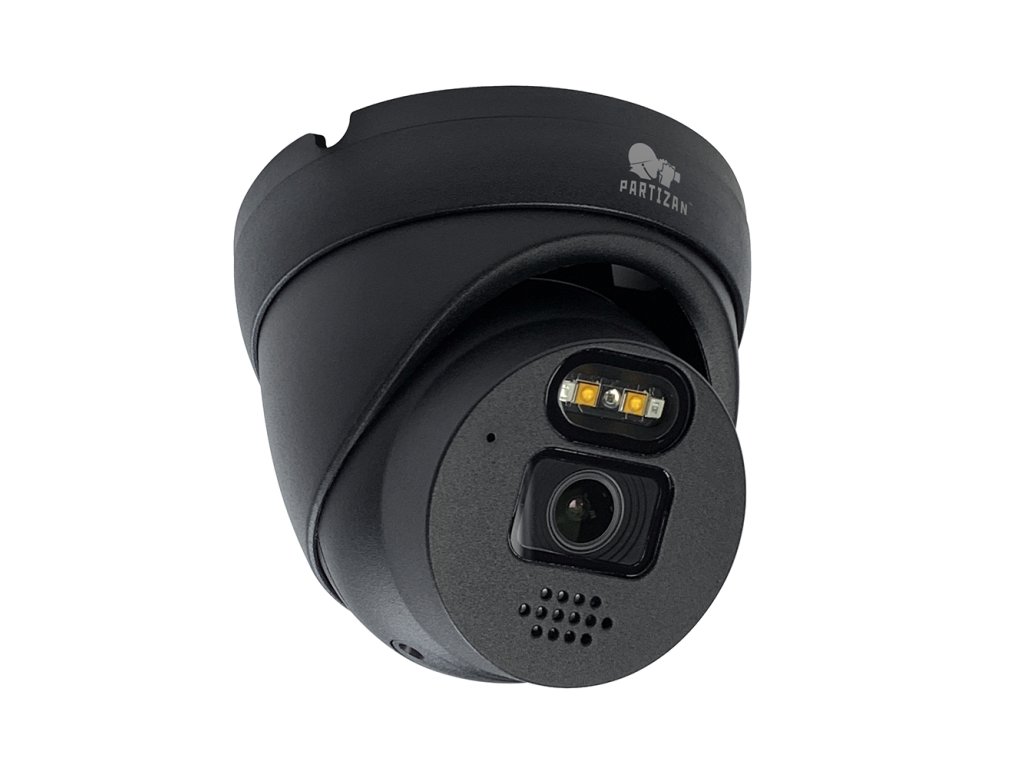

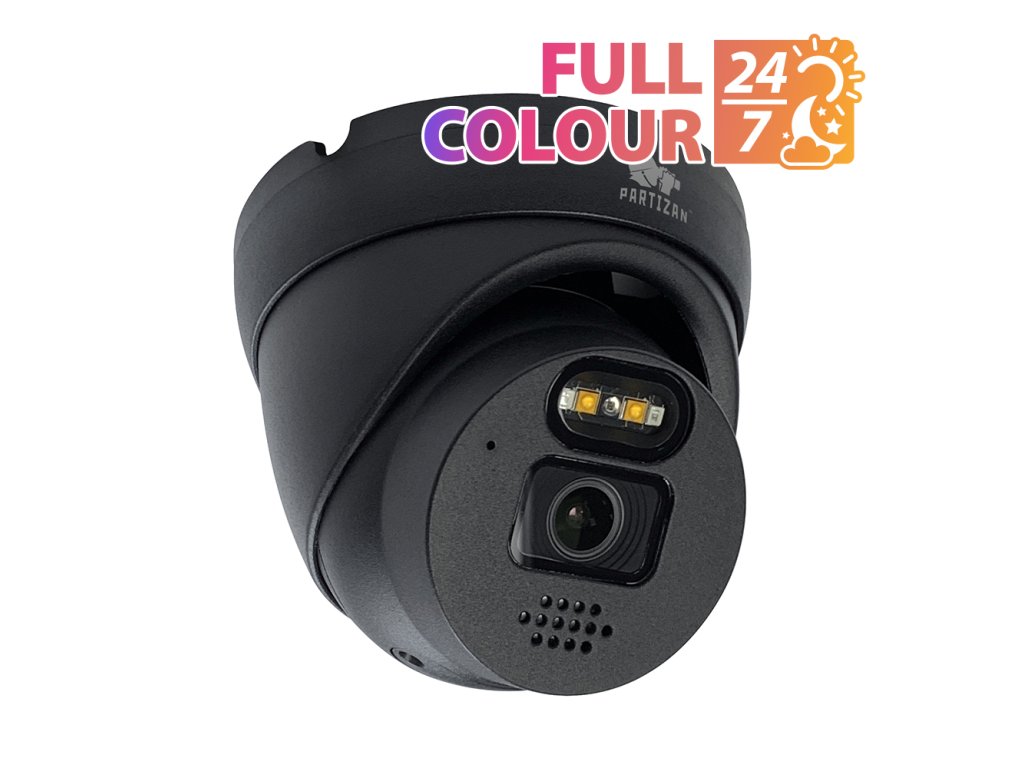

The Partizan IPD-4SP-IR FADA SH Black is an IP surveillance camera from the SH series featuring a 1/3" CMOS sensor with 2560×1440 main stream resolution at 24fps. This compact dome camera combines dual illumination with IR and white LEDs, built-in two-way audio, and advanced smart analytics in a weather-resistant metal housing.

Key features

  • ✓4MP resolution — 2560×1440 main stream with H.264/H.265 compression
  • ✓Dual illumination — IR LED and white LED with 20m range
  • ✓Smart analytics — human, pedestrian, vehicle, intrusion, and line crossing detection
  • ✓Two-way audio — built-in microphone and speaker
  • ✓Wide angle lens — 2.8mm fixed focal length with 95° horizontal view
  • ✓Local storage — TF card support up to 256GB
  • ✓Flexible power — 12V DC or PoE Class 0
  • ✓Cloud ready — remote access, cloud recording, and PUSH notifications

Built with an IP67-rated metal housing, this camera operates reliably in temperatures from -40°C to 60°C with humidity tolerance of 20-95% RH. Dimensions are 100mm diameter × 78mm height at 320g weight. Backed by a 3-year warranty.

Product details

ModelIPD-4SP-IR
VersionFADA SH Black
SKU3527
SeriesSH series

Encoder

Main stream2560x1440@24 fps
Sub stream640x480@24 fps
Video codecH.264, H.265
Audio codecG711A, G711U

Image sensor

Sensor1/3" CMOS
Pixel size2.9x2.9 μm
Day/Night modeAuto, Color, Black&White
Sensitivity0.002Lux
Dynamic range WDR72dB
S/N ratio≥48 dB
Exposure modesAuto, Manual
Exposure range1/5 - 1/20000 s
Video functions3D DNR, DWDR

Lens

Lens typeSpherical
Lens mountМ12
IrisF1.0
Focal length2.8 mm
Horizontal view95°
Vertical view51°

IR LED

LED typeIR LED, White LED
Distance≤20 m
Number of LEDs3pcs

Network

Network interfacesRJ-45 (10/100Base-T)
Network functionsTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, HTTPS
Default IP addressDHCP
HTTP(s) port80
Control port9988
RTSP port554
RTSP URLrtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0

Default credentials

Default loginadmin
Default passwordadmin

Software

Smart analyticsMotion detection, Human detection, Pedestrian detection, Vechicle detection, Intrusion detection, Line crossing detection
Smart analytics (important note)IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan SH series video recorders.
Cloud abilitiesRemote access, Cloud recording, PUSH notifications
Desktop appsPartizan, Partizan Setup Tool
Mobile appPartizan
Web browsersGoogle Chrome, Mozilla Firefox, Edge
Web browser languagesEnglish, French, German, Italian, Portuguese, Russian, Spanish, Turkish
Web browser usage (important note)Web browser access requires Partizan SurveillancePluginV2 installation for device setup and live view. Available at www.apps.partizan.global

External interfaces

MicBuilt-in microphone
SpeakerBuilt-in speaker
TF card support ≤256 Gb

Mechanical specifications

IP ratingIP67
DimensionsØ100 x 78 mm
Weight320g
Housing materialMetal
Compatible mountsPMB-1 v2.1, PMB-6SM, PMB-7, PMB-7SM, PMB-100

Power

DC power source12V
DC consumption500 mA
PoEPoE Class 0

Operating conditions

Humidity range20-95 % RH (non-condensing)
Operating temperature-40 - 60 °C
Storage temperature-40 - 60 °C

Common

Package contentsDrill template, Mounting kit
Warranty3 years

Additional parameters

Category: Dome (Turret)
Warranty: 3 years
Weight: 0.2 kg
EAN: 5061099730716
Series: SH
Case type: Dome (Turret)
Resolution: 4Mp
Lens Type: Fixed Lens
Focus: 2.8mm
Night vision type: Full Colour (IR + White LED)
Night vision range: 20m
Software support: Partizan (PC/Android/iOS), Web interface (IE)
Housing material: Metal + Plastic
Special features: SD-card support, Alarm red & blue lights, Built-in Speaker & Mic
Smart features: Perimeter Intrusion Detection, Line Crossing Detection, Sound Detection, Smart Motion Detection (Human / Vehicle)
