4Mp fix focus IP camera IPO-4SP FADA SH
Code: 3530Related products
Product detailed description

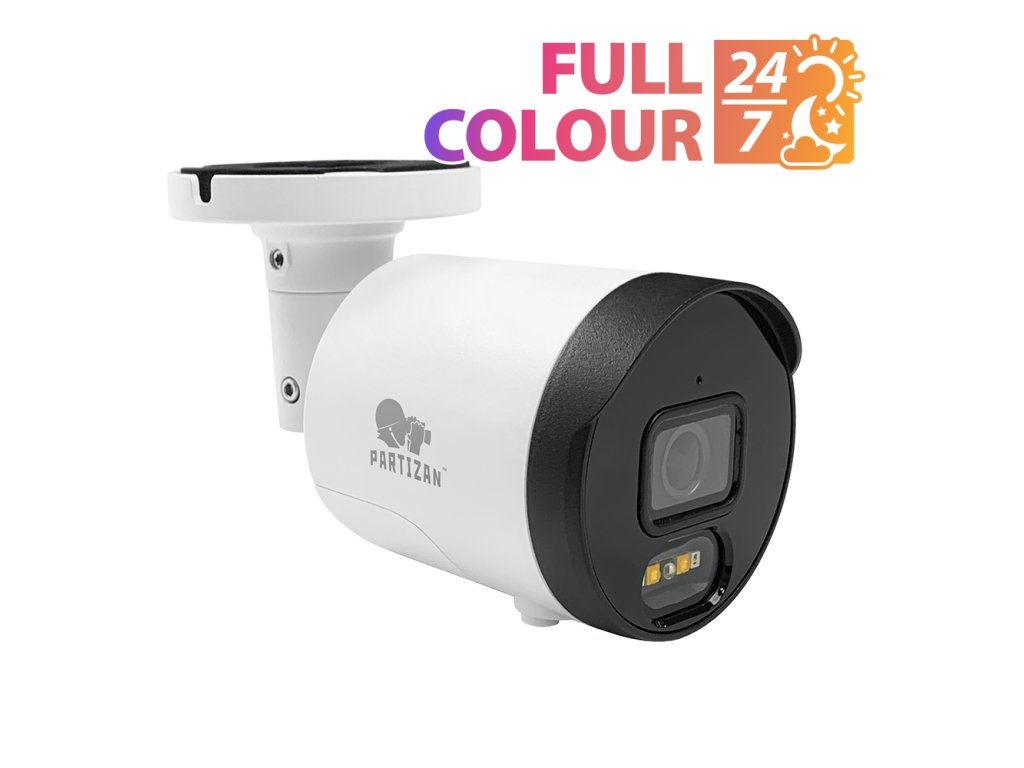

The Partizan IPO-4SP FADA SH is an IP camera from the SH series featuring a 1/3" CMOS sensor with 4MP resolution at 2560×1440 (25 fps). This outdoor-ready surveillance camera combines dual illumination with IR and white LEDs, built-in two-way audio, and comprehensive smart analytics in a compact metal housing.
Key features
- ✓4MP resolution — main stream 2560×1440 at 25 fps with H.264/H.265 compression
- ✓Dual illumination — IR LED and white LED with 20m range
- ✓Smart analytics — human, pedestrian, vehicle detection, intrusion and line crossing alerts
- ✓Two-way audio — built-in microphone and speaker
- ✓Wide viewing angle — 2.8mm lens with 95° horizontal and 51° vertical field of view
- ✓Local storage — TF card support up to 256 GB
- ✓Flexible power — 12V DC or PoE Class 0
- ✓Cloud connectivity — remote access, cloud recording, and push notifications
Built with an IP66-rated metal housing, this camera operates in temperatures from -40°C to 60°C and humidity up to 95% RH. Power consumption is 600mA via 12V DC or PoE. Dimensions: 152×80×70mm, weight 280g. Backed by a 3-year warranty.
Product details
| Model | IPO-4SP |
|---|---|
| Version | FADA SH |
| SKU | 3530 |
| Series | SH series |
Encoder
| Main stream | 2560x1440@25 fps |
|---|---|
| Sub stream | 640x480@25 fps |
| Video codec | H.264, H.265 |
Image sensor
| Sensor | 1/3" CMOS |
|---|---|
| Pixel size | 2.9x2.9 μm |
| Day/Night mode | Auto, Color, Black&White |
| Sensitivity | 0.002Lux |
| Dynamic range WDR | 72dB |
| S/N ratio | ≥48 dB |
| Exposure modes | Auto, Manual |
| Exposure range | 1/5 - 1/20000 s |
| Video functions | BLC, HLC, 3D DNR, DWDR |
Lens
| Lens type | Spherical |
|---|---|
| Lens mount | М12 |
| Iris | F1.0 |
| Focal length | 2.8 mm |
| Horizontal view | 95° |
| Vertical view | 51° |
IR LED
| LED type | IR LED, White LED |
|---|---|
| Distance | ≤20 m |
| Number of LEDs | 3pcs |
Network
| Network interfaces | RJ-45 (10/100Base-T) |
|---|---|
| Network functions | TCP/IP, HTTP, DHCP, DDNS, RTP/RTSP, SMTP, HTTPS |
| Default IP address | DHCP |
| HTTP(s) port | 80 |
| Control port | 9988 |
| RTSP port | 554 |
| RTSP URL | rtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0 |
Default credentials
| Default login | admin |
|---|---|
| Default password | admin |
Software
| Smart analytics | Motion detection, Human detection, Pedestrian detection, Vechicle detection, Intrusion detection, Line crossing detection, Audio detection |
|---|---|
| Smart analytics (important note) | IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan SH series video recorders. |
| Cloud abilities | Remote access, Cloud recording, PUSH notifications |
| Desktop apps | Partizan, Partizan Setup Tool |
| Mobile app | Partizan |
| Web browsers | Google Chrome, Mozilla Firefox, Edge |
| Web browser languages | English, French, German, Italian, Portuguese, Russian, Spanish, Turkish |
| Web browser usage (important note) | Web browser access requires Partizan SurveillancePluginV2 installation for device setup and live view. Available at www.apps.partizan.global |
External interfaces
| Mic | Built-in microphone |
|---|---|
| Speaker | Built-in speaker |
| TF card support | ≤256 Gb |
Mechanical specifications
| IP rating | IP66 |
|---|---|
| Dimensions | 152 x 80 x 70 mm |
| Weight | 280g |
| Housing material | Metal |
Power
| DC power source | 12V |
|---|---|
| DC consumption | 600 mA |
| PoE | PoE Class 0 |
Operating conditions
| Humidity range | 20-95 % RH (non-condensing) |
|---|---|
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
Common
| Package contents | Drill template, Mounting kit |
|---|---|
| Warranty | 3 years |
Additional parameters
| Category: | Bullet |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.35 kg |
| EAN: | 5060491861332 |
| Series: | SH |
| Case type: | Bullet |
| Resolution: | 4Mp |
| Lens Type: | Fixed Lens |
| Focus: | 2.8mm |
| Night vision type: | Full Colour (IR + White LED) |
| Night vision range: | 20m |
| Software support: | Partizan (PC/Android/iOS), Web interface (IE) |
| Housing material: | Metal |
| Special features: | SD-card support, Alarm red & blue lights, Built-in Speaker & Mic |
| Smart features: | Perimeter Intrusion Detection, Line Crossing Detection, Sound Detection, Smart Motion Detection (Human / Vehicle) |
