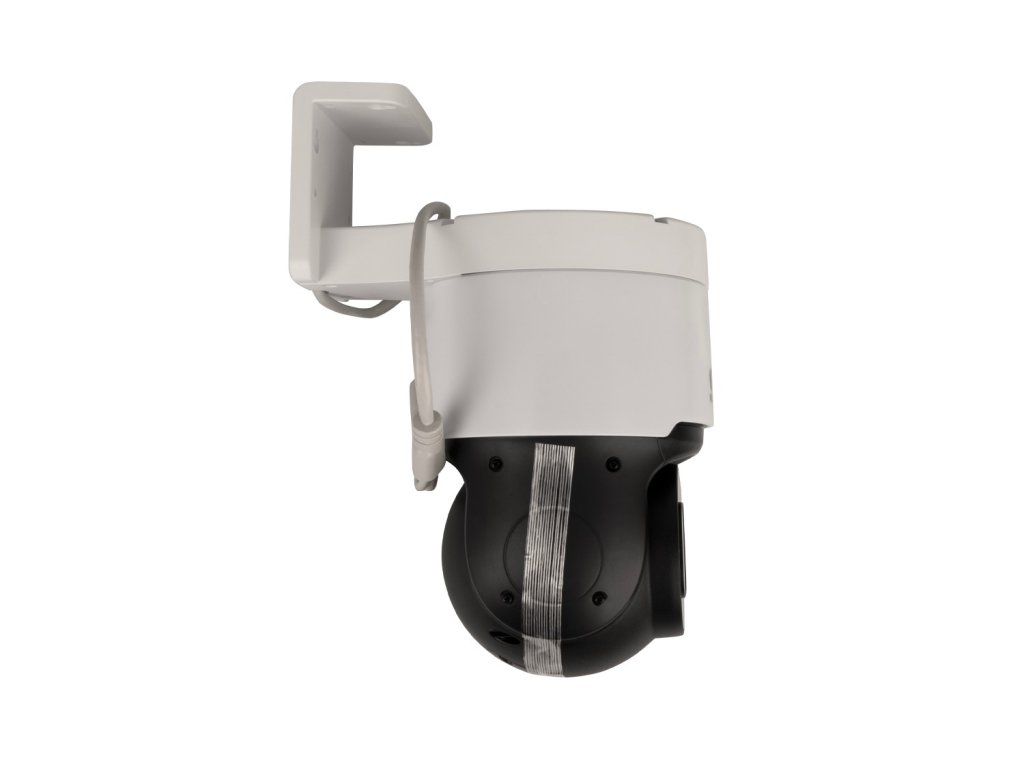

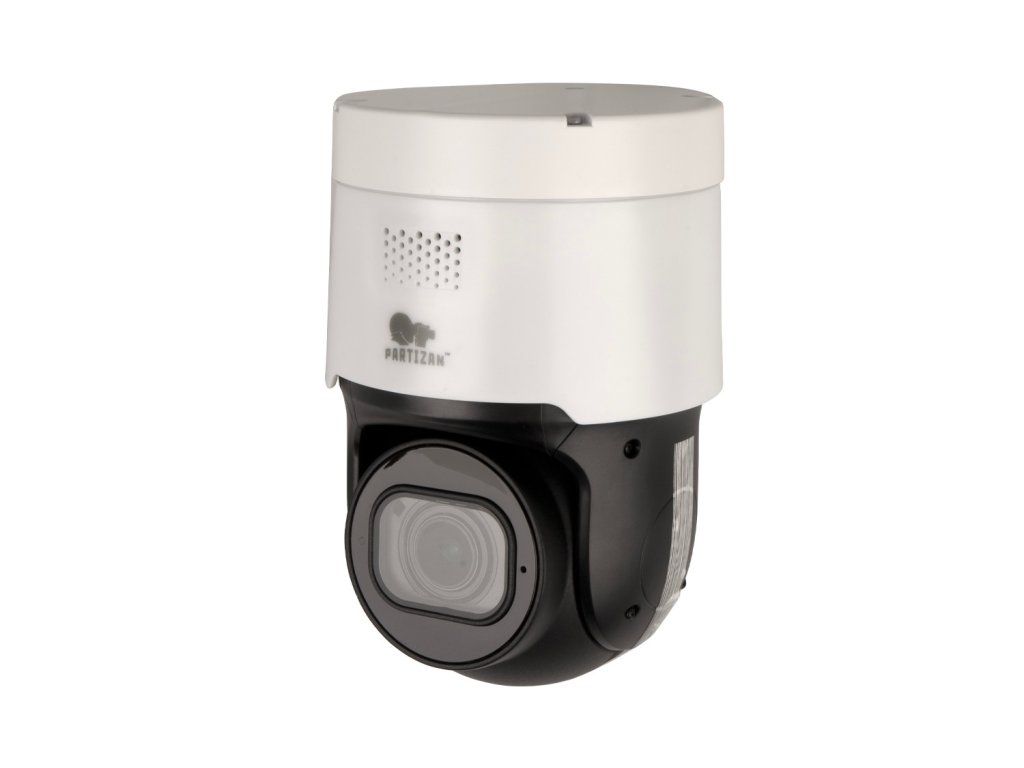

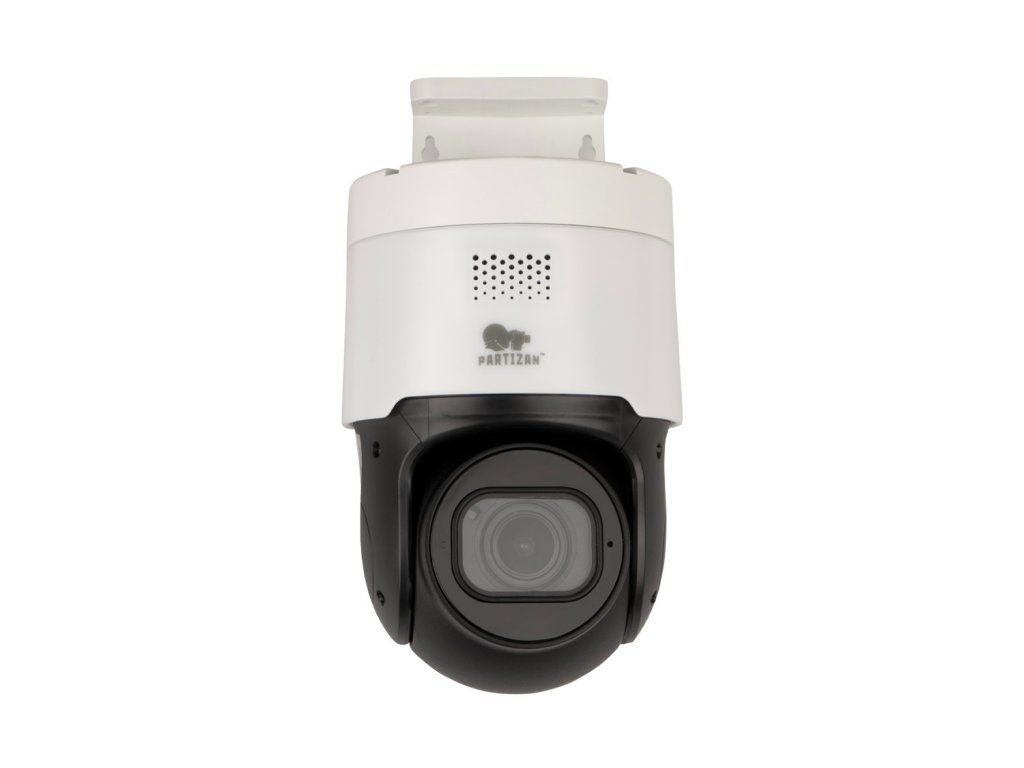

The Partizan IPS-204X-IR 4K FADA SH is a 4K IP camera from the SH series, equipped with a 1/2.7" CMOS sensor and motorized zoom lens with 2.8-12mm focal length. This network surveillance camera supports multiple video resolutions up to 3840x2860 at 25fps and features H.264/H.265 video compression with G711A/G711U audio codecs.
The camera offers 120dB wide dynamic range, 0.009 lux sensitivity, and switchable day/night modes including auto, color, and black-and-white operation. Video functions include BLC, HLC, 3D DNR, privacy mask, and WDR. The motorized lens provides a horizontal view angle from 31.4° to 113° and vertical view from 17.6° to 58.4°. PTZ functionality includes 350° pan range, 90° tilt range, and variable PT speeds from 0.6° to 54°/s. Built-in IR and white LEDs provide illumination up to 30 meters, complemented by integrated microphone and speaker. Smart analytics features include face detection, face recognition, human detection, vehicle detection, intrusion detection, line crossing detection, license plate recognition, and audio detection.
The IP66-rated plastic housing measures 122mm diameter by 182mm height and weighs 920g. Power options include 12V DC (1500mA consumption, power supply not included) or PoE Class 0. Operating temperature spans -40°C to 60°C with 20-95% RH non-condensing humidity. The camera includes a drill template, mounting kit, and 3-year warranty.
Product details
| Model |
IPS-204X-IR
|
| Version |
4K FADA SH
|
| SKU |
3533
|
| Series |
SH series
|
Encoder
| Main stream |
3840x2860@25 fps, 3072x1728@25 fps, 2592x1944@25 fps, 2592x1520@25 fps, 2304x1296@25 fps, 1920x1080@25 fps, 1280x960@25 fps, 1280x720@25 fps
|
| Sub stream |
1280x720@25 fps, 640x480@25 fps, 320x240@25 fps
|
| Mobile stream |
640x480@25 fps, 320x240@25 fps
|
| Video codec |
H.264,
H.265
|
| Audio codec |
G711A,
G711U
|
Image sensor
| Sensor |
1/2.7" CMOS
|
| Pixel size |
2.0x2.0 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.009 Lux
|
| Dynamic range WDR |
120 dB
|
| S/N ratio |
50 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/5 - 1/20000 s
|
| Video functions |
BLC,
HLC,
3D DNR,
Privacy mask,
WDR
|
Lens
| Iris |
F1.6
|
| Focal length |
2.8 - 12 mm
|
| Zoom |
Motorized
|
| Horizontal view |
31.4 - 113°
|
| Vertical view |
17.6 - 58.4°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤30 m
|
| Number of LEDs |
4 pcs
|
Network

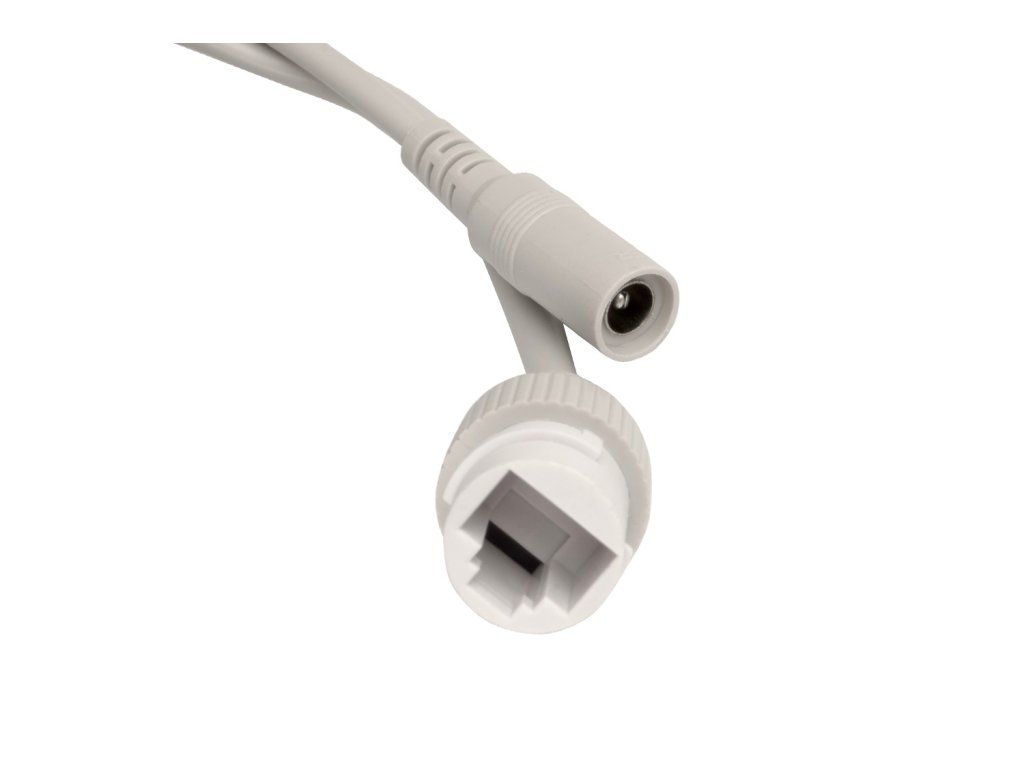

| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Partizan MAC protocol,
DHCP,
DNS,
DDNS,
RTP/RTSP,
PPPoE,
SMTP,
NTP,
UPnP,
SNMP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
9988
|
| RTSP port |
554
|
| RTSP URL |
rtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Face detection,
Attendance control,
Face recognition,
Human detection,
Vechicle detection,
Intrusion detection,
Line crossing detection,
Cross counting,
Stationary object detection,
Heat map,
Crowd density detection,
Queue length detection,
License plate detection,
License plate recognition,
Audio detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan SH series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Mozilla Firefox,
Edge,
Google Chrome
|
| Web browser languages |
English,
French,
German,
Italian,
Portuguese,
Russian,
Spanish,
Turkish
|
| Web browser usage (important note) |
Web browser access requires Partizan SurveillancePluginV2 installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Mic |
Built-in microphone
|
| Speaker |
Built-in speaker
|
| TF сard support |
≤256 Gb
|
PTZ
| Pan range |
350°
|
| Tilt range |
90°
|
| PT speed |
0.6 ~ 54 °/s, 0.6 ~ 52 °/s
|
Mechanical specifications
| IP rating |
IP66
|
| Dimensions |
Ø122 x 182 mm
|
| Weight |
920 g
|
| Housing material |
Plastic
|
| Mount material |
Plastic
|
Power
| DC power source |
12 V
|
| DC consumtion |
1500 mA
|
| DC power supply |
Not included
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common

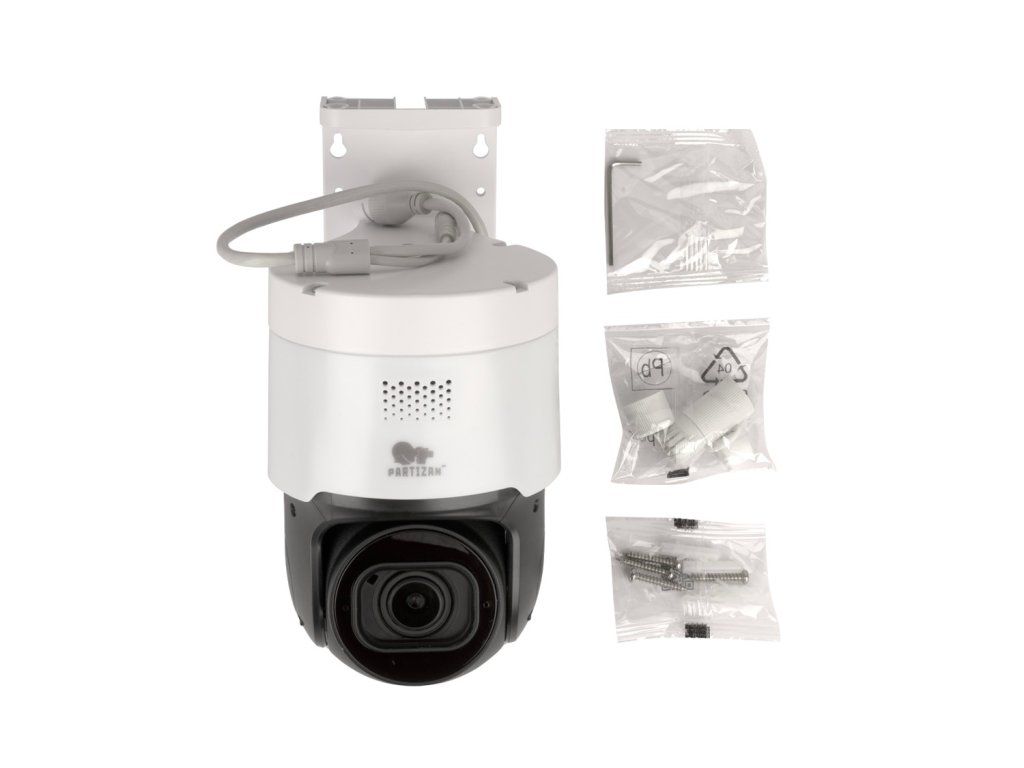

| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
