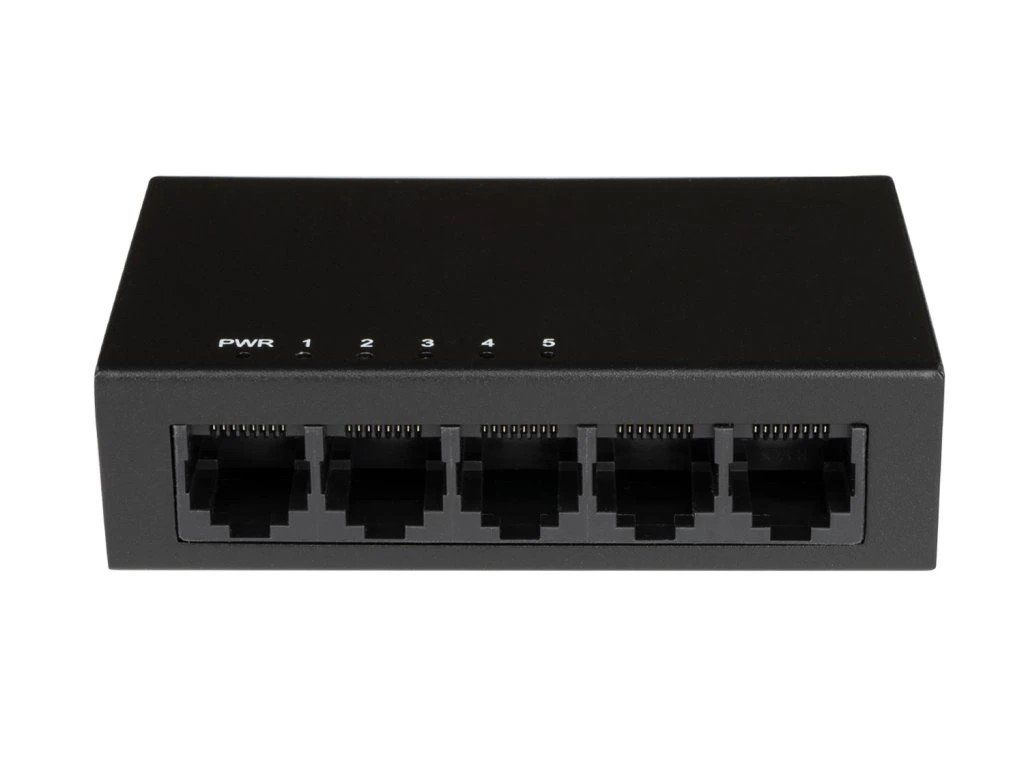

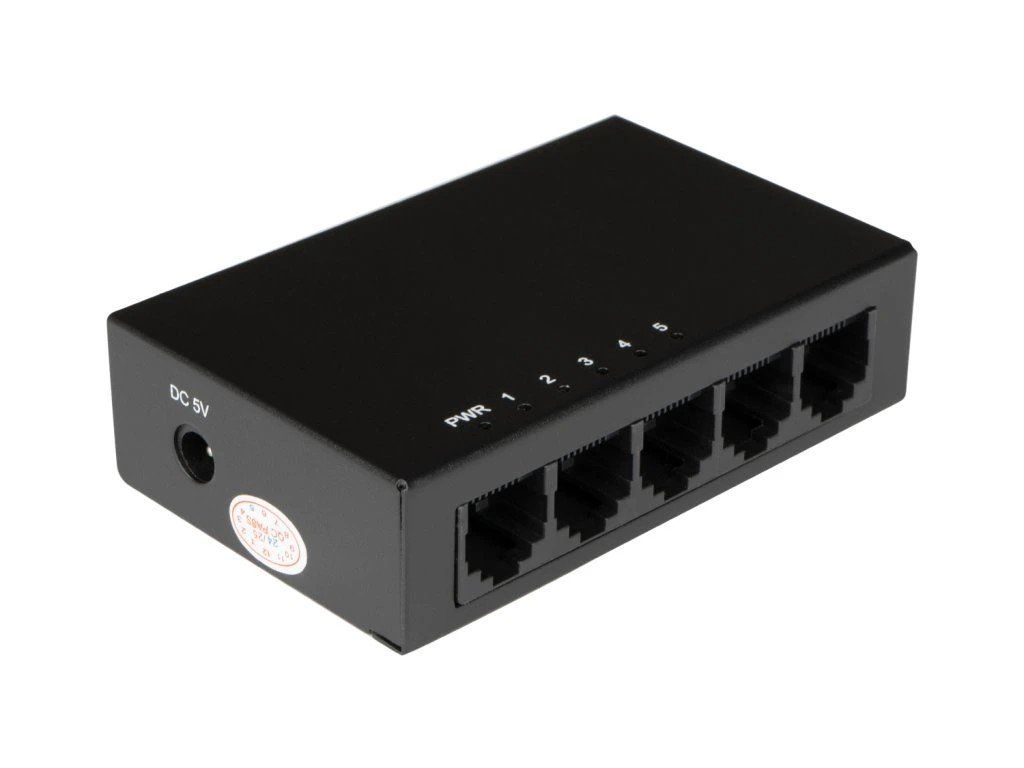

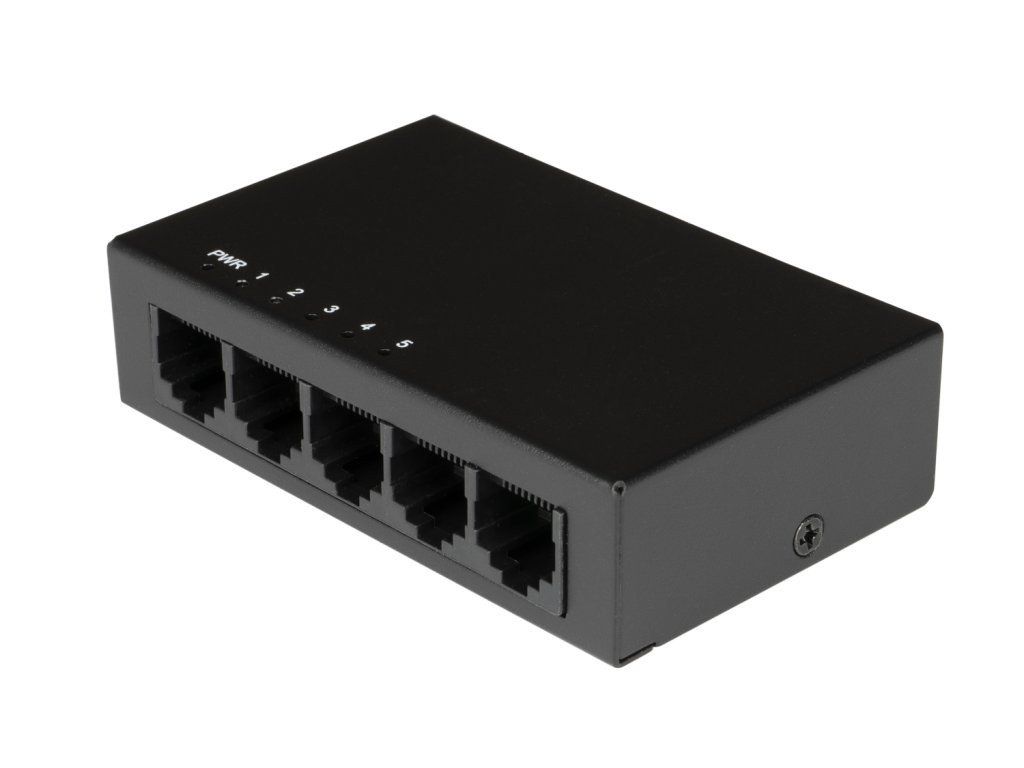

The Partizan NSW-4M Gigabit is a CCTV network switch designed for efficient video surveillance installations. It features 5 regular ports and complies with IEEE 802.3 standards, ensuring maximum compatibility and performance for various network devices.
With a switching capacity of 10 Gbps, the NSW-4M is built to handle significant data traffic, making it suitable for high-demand situations. It operates within a temperature range of 0 to 40 °C and supports a humidity range of 20-95% RH (non-condensing). Unit weight is 130 grams, and it comes with a DC power supply included.
The product has a warranty period of 3 years, providing reassurance for customers regarding its reliability and support.
Product details
| Model |
NSW-4M
|
| Version |
Gigabit
|
| SKU |
3594
|
Specification
| Regular ports |
5 x 100/1000 M
|
| Switching capacity |
10 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T),
802.3u (100Base-TX),
802.3ab (1000Base-T),
802.3x (Flow control)
|
| Power supply |

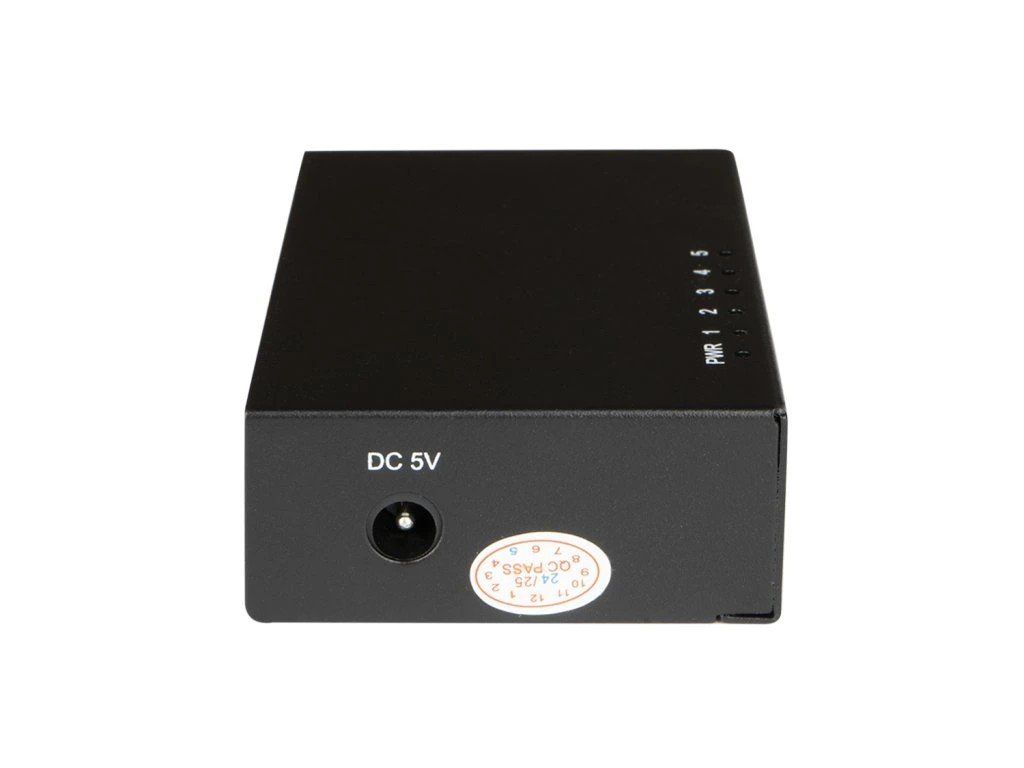

DC 5V/1 A
|
| DC power supply |

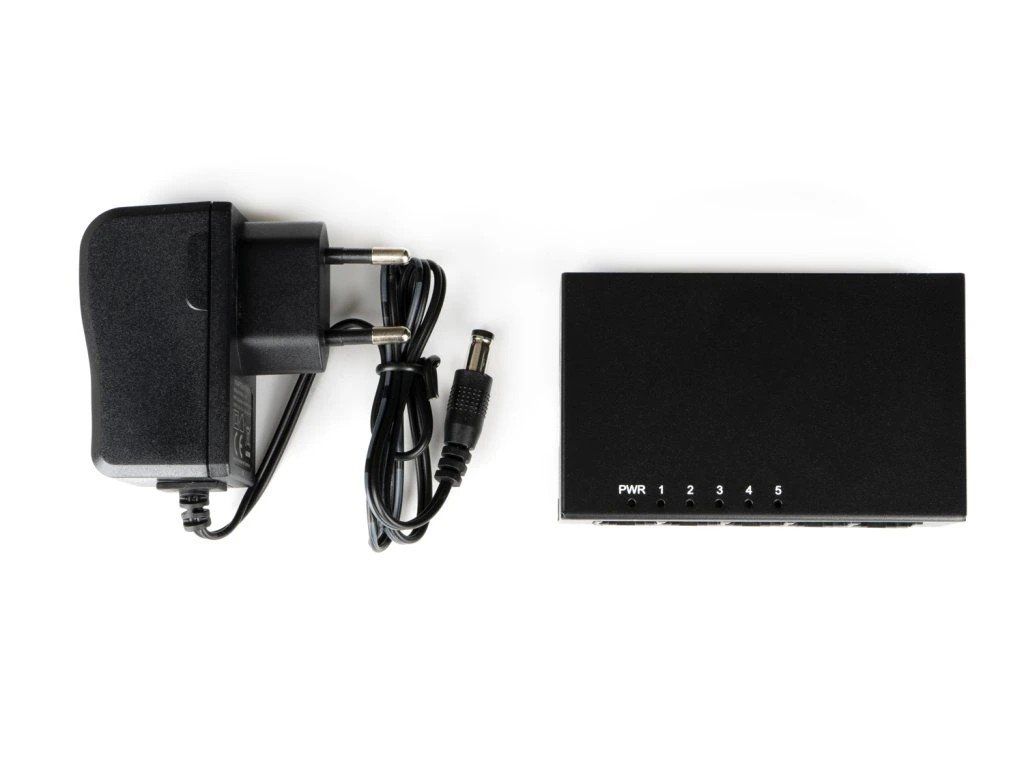

Included
|
Mechanical specification
| Dimension |
87x54x23 mm
|
| Weight |
130 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
