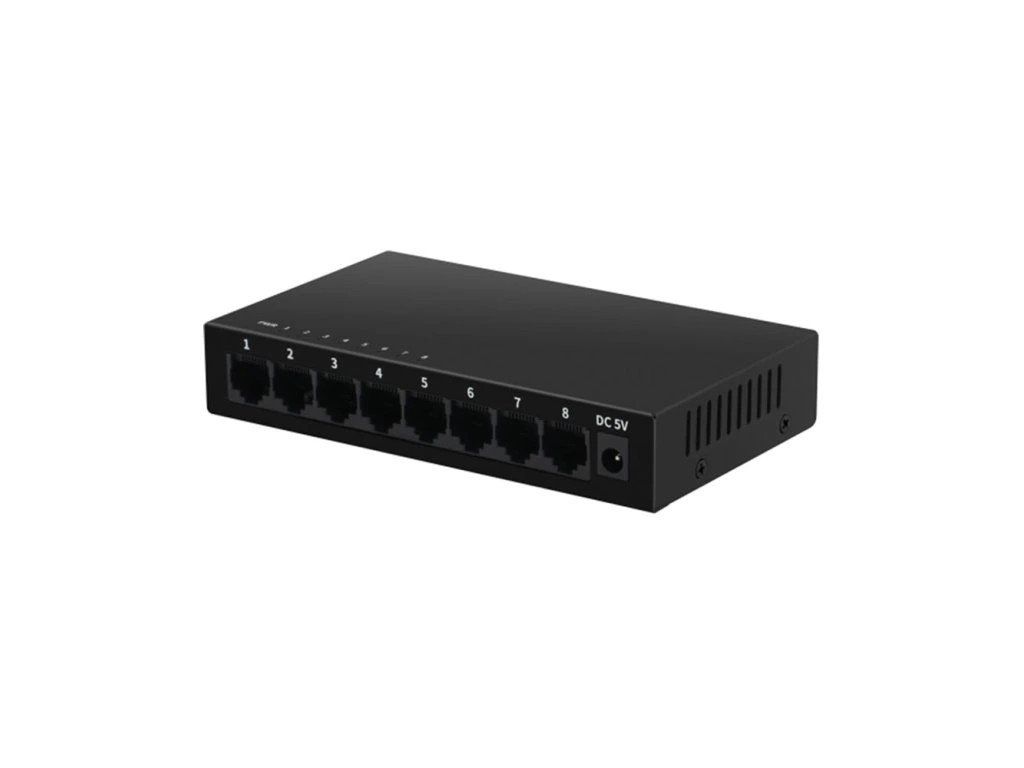

The Partizan NSW-8M Gigabit is an 8-port network switch designed for CCTV applications. This compact switching device offers a 16 Gbps switching capacity to support network infrastructure requirements.
The switch features 8 regular ports and supports multiple Ethernet standards including IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T), and IEEE 802.3x flow control. This standards compliance enables connectivity across various network speeds from 10 Mbps to Gigabit Ethernet.
The unit operates on DC 5V 1A power with the DC power supply included. Measuring 138 x 78 x 25 mm and weighing 240 g, the switch maintains a compact form factor. Operating temperature range spans 0 to 40 °C with humidity tolerance of 20-95% RH non-condensing, while storage temperature extends from -30 to 50 °C. The product is backed by a 3-year warranty.
Product details
| Model |
NSW-8M
|
| Version |
Gigabit
|
| SKU |
3595
|
Specification
| Gigabit ethernet ports |
8 x 100/1000 M
|
| Switching capacity |
16 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3ab (1000Base-T),
IEEE 802.3u (100Base-TX),
IEEE 802.3x (Flow control)
|
Electrical specification
| DC power supply |
DC 5 V/1 A
|
| DC power supply |
Included
|
Mechanical specifications
| Dimension |
138x78x25 mm
|
| Weight |
240 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
