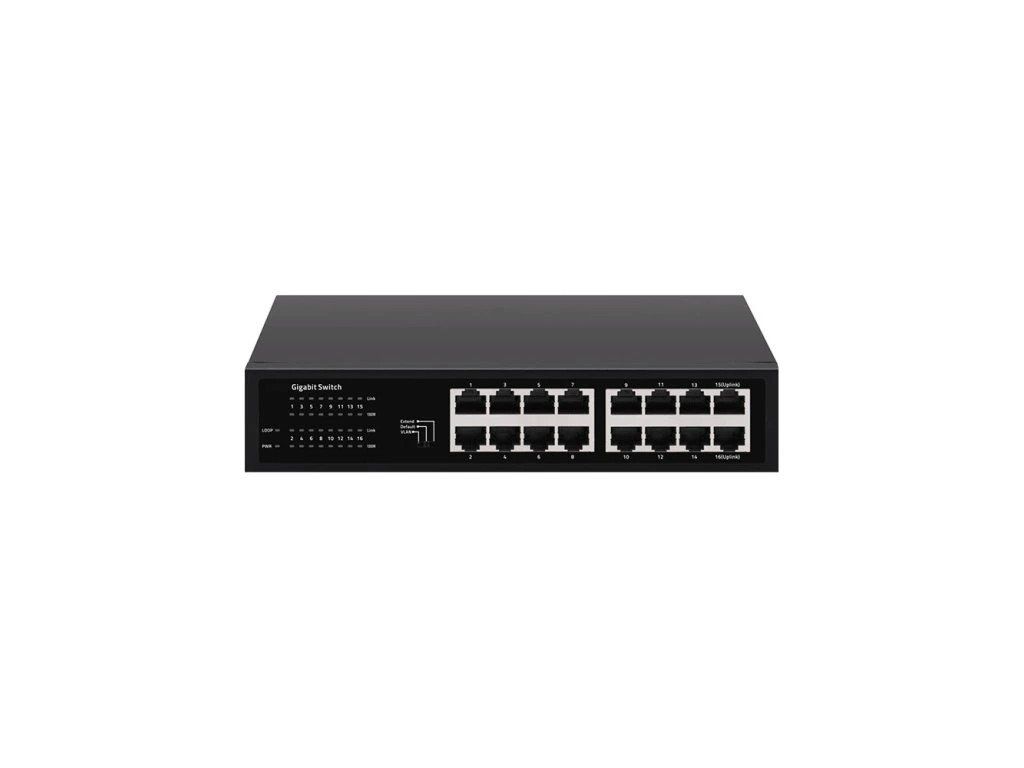

The Partizan NSW-16 Gigabit is a CCTV network switch designed for surveillance system connectivity. This model features 16 regular ports and delivers a switching capacity of 32, making it suitable for multi-camera installations.
The switch supports multiple Ethernet standards including IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T), and IEEE 802.3x for flow control. These standards enable flexible connectivity options across different network speeds and provide traffic management capabilities.
The unit operates on AC power supply rated at 100-240V with 50/60Hz frequency and includes an EU Type C/F plug. It measures 220 x 161 x 44 mm and weighs 900 grams. Operating temperature ranges from 0 to 40°C with humidity tolerance of 20-95% RH non-condensing, while storage temperature extends from -30 to 50°C. The Partizan NSW-16 Gigabit comes with a 3-year warranty.
Product details
| Model |
NSW-16
|
| Version |
Gigabit
|
| SKU |
3596
|
Specification
| Gigabit ethernet ports |
16 x 100/1000 M
|
| Switching capacity |
32 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3u (100Base-TX),
IEEE 802.3ab (1000Base-T),
IEEE 802.3x (Flow control)
|
Electrical specification
| AC Plug |
EU (Type C/F)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
220x161x44 mm
|
| Weight |
900 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
