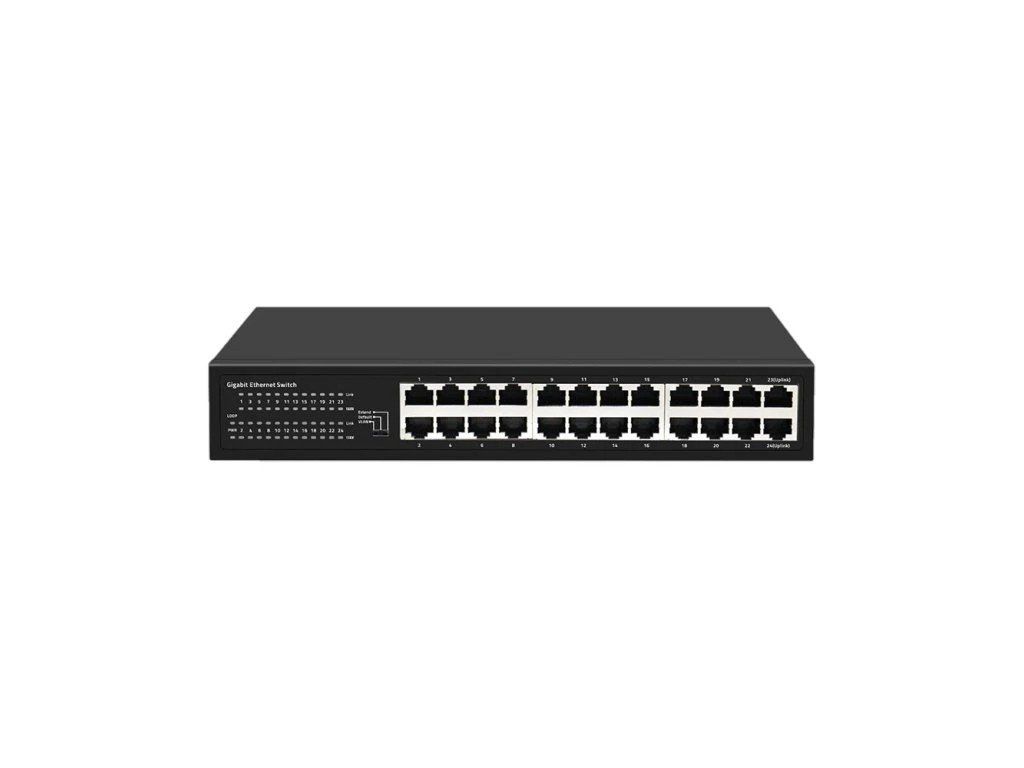

The Partizan NSW-24 Gigabit is a 24-port network switch designed for CCTV and surveillance applications. This Gigabit-class device offers a switching capacity of 48 and supports multiple network standards for versatile connectivity.
The switch features 24 regular ports and supports IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T), and IEEE 802.3x (Flow control) standards. This range of supported standards enables compatibility with various network speeds and provides flow control capabilities for efficient data transmission.
The unit operates on AC power supply rated at 100-240V and 50/60Hz with an EU Type C/F plug. Physical dimensions measure 270 x 180 x 45 mm with a weight of 1160 grams. The switch functions within an operating temperature range of 0 to 40°C and humidity range of 20-95% RH (non-condensing), with storage temperature tolerance from -30 to 50°C. The product is backed by a 3-year warranty.
Product details
| Model |
NSW-24
|
| Version |
Gigabit
|
| SKU |
3597
|
Specification
| Gigabit ethernet ports |
24 x 100/1000 M
|
| Switching capacity |
48 Gbps
|
| Supported standards |
IEEE 802.3i (10Base-T) ,
IEEE 802.3u (100Base-TX),
IEEE 802.3ab (1000Base-T),
IEEE 802.3x (Flow control)
|
Electrical specification
| AC Plug |
EU (Type C/F)
|
| AC power supply |
100-240 V 50/60 Hz
|
Mechanical specifications
| Dimension |
270x180x45 mm
|
| Weight |
1160 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-30 - 50 °C
|
