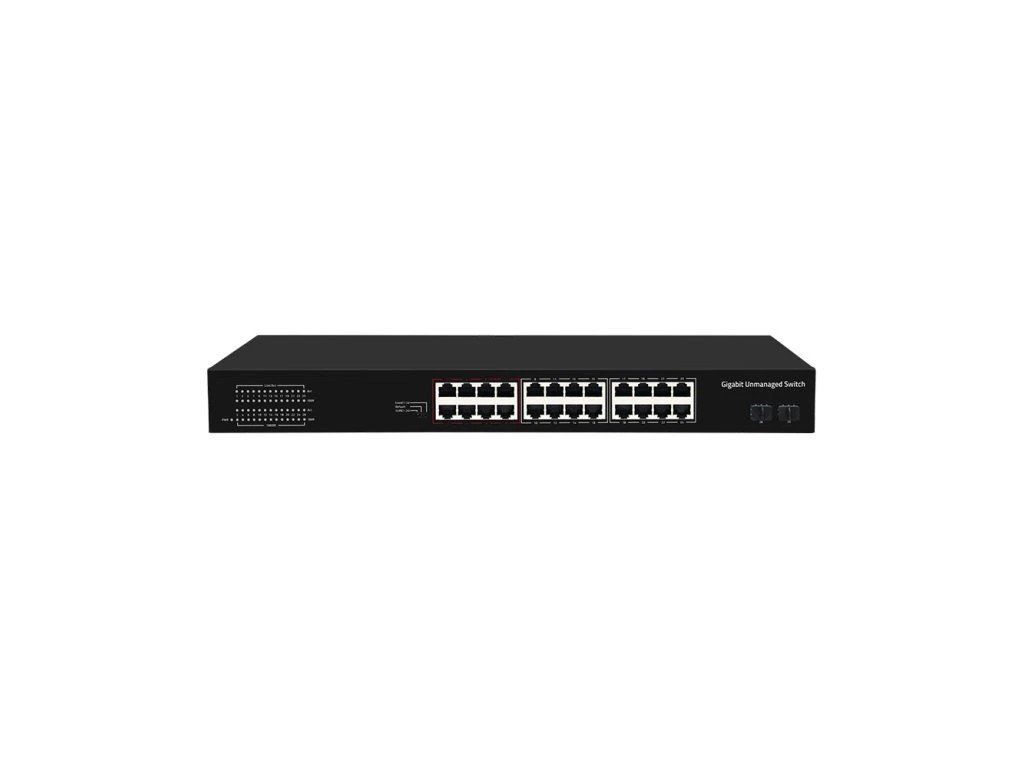

The Partizan NSW-24 SFP is a CCTV network switch featuring 24 regular ports and 2 Gigabit SFP ports for fiber connectivity. This model offers a switching capacity of 52 and is designed for professional surveillance network infrastructure. The NSW-24 SFP supports multiple networking standards including IEEE 802.3i (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T), IEEE 802.3z 1000BASE-X, and IEEE 802.3x for flow control. The dual Gigabit SFP ports provide flexible uplink options for connecting to fiber networks, while the 24 regular ports accommodate multiple network devices within a CCTV system. The switch operates on AC power supply rated at 100-240V and 50/60Hz with an EU Type C/F plug. It measures 440 x 204 x 44 mm and weighs 2360 grams. Operating temperature ranges from 0 to 40°C with humidity tolerance of 20-95% RH non-condensing, and storage temperature from -30 to 50°C. The product includes a 3-year warranty.
Product details
| Model |
NSW-24 |
| Version |
SFP |
| SKU |
3598 |
Specification
| Gigabit SFP ports |
2 x 1000 M |
| Gigabit ethernet ports |
24 x 100/1000 M |
| Switching capacity |
52 Gbps |
| Supported standards |
IEEE 802.3i (10Base-T) , IEEE 802.3u (100Base-TX), IEEE 802.3x (Flow control), IEEE 802.3ab (1000Base-T), IEEE 802.3z 1000BASE-X |
Electrical specification
| AC Plug |
EU (Type C/F) |
| AC power supply |
100-240 V 50/60 Hz |
Mechanical specifications
| Dimension |
440x204x44 mm |
| Weight |
2360 g |
Operating conditions
| Humidity range |
20-95% RH (non-condensing) |
| Operating temperature |
0 - 40 °C |
| Storage temperature |
-30 - 50 °C |
