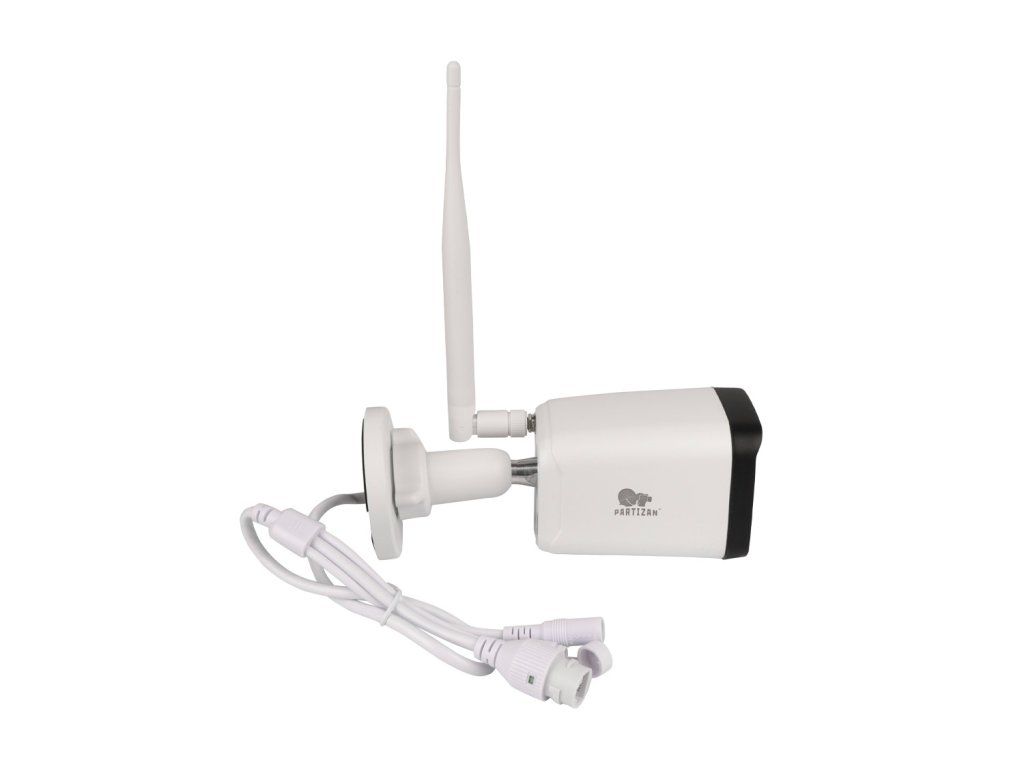

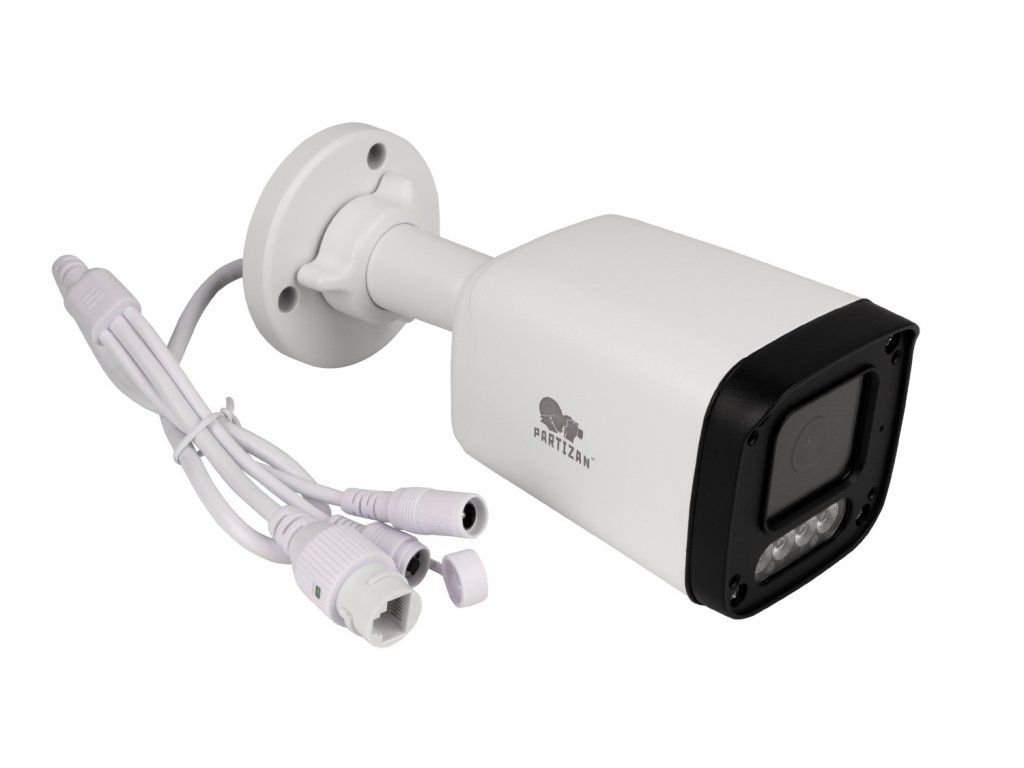

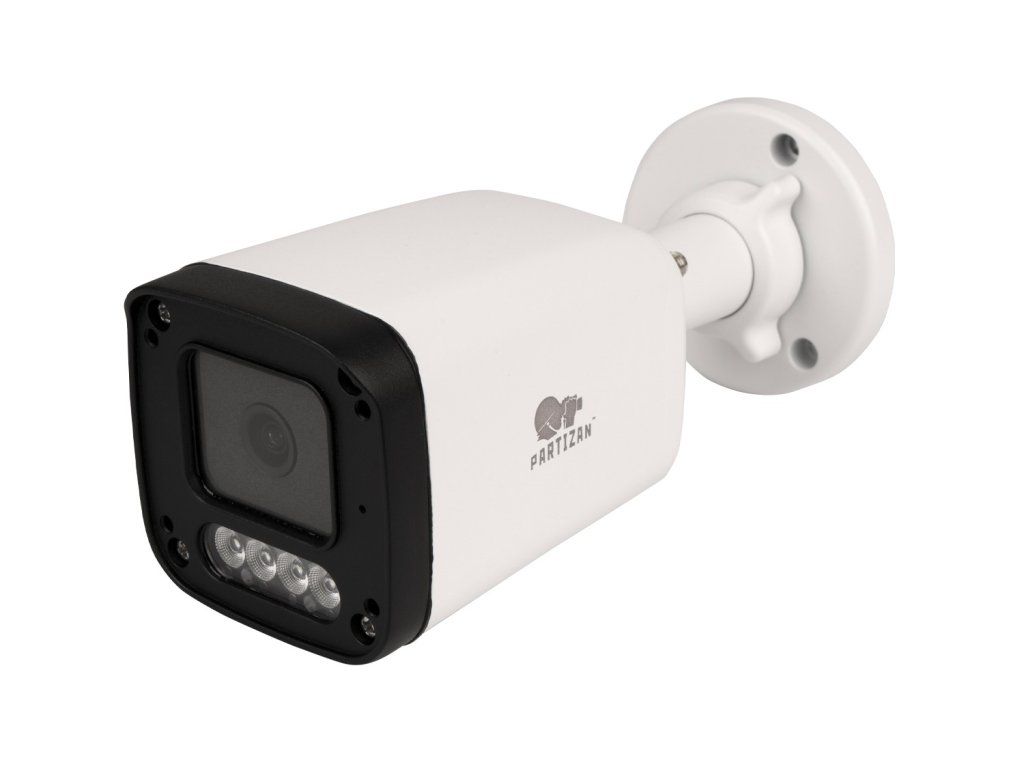

The Partizan IPO-5SP WiFi FADA is a cloud-series IP camera featuring a 1/2.8" CMOS sensor with multiple resolution options up to 2592×1944 at 25 fps. This security camera supports H.265 and H.265X video codecs and offers smart analytics including human detection, face detection, and vehicle detection.
The camera features a 2.8mm spherical lens with M12 mount, providing 89-degree horizontal and 58-degree vertical viewing angles. Illumination is provided by 4 LEDs combining IR LED and white LED technology with a range of 30 meters. The unit includes a built-in microphone and speaker for two-way audio, and supports TF cards up to 512 GB for local storage. Network connectivity is provided through RJ-45 (10/100Base-T) with support for Partizan MAC protocol, DDNS, IP filter, email, NTP, UPnP, and RTP/RTSP. Cloud capabilities include remote access, cloud recording, and PUSH notifications.
The camera features a metal housing and mount with IP67 rating, measuring 66×60×190mm and weighing 450g. It operates on 12V DC power (500mA consumption) with the power supply included, functioning in temperatures from -40 to 60°C and 20-95% relative humidity. The product includes a 3-year warranty.
Product details
| Model |
IPO-5SP
|
| Version |
WiFi FADA
|
| SKU |
4473
|
| Series |
Cloud series
|
Encoder
| Main stream |
2592x1944@25 fps, 2560x1440@25 fps, 2048x1536@25 fps, 1920x1080@25 fps, 1280x720@25 fps
|
| Sub stream |
640x360@25 fps
|
| Video codec |
H.265,
H.265X
|
Image sensor
| Sensor |
1/2.8" CMOS
|
| Pixel size |
2.9x2.9 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.001 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
52 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/50 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
89°
|
| Vertical view |
58°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤30 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Partizan MAC protocol,
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Face detection,
Vechicle detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Italian,
Czech,
Hungarian
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Mic |
Built-in microphone
|
| Speaker |
Built-in speaker
|
| TF сard support |
≤512 Gb
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
66 x 60 x 190 mm
|
| Weight |
450 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
500 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Mounting kit,
Drill template
|
| Warranty |
3 years
|
