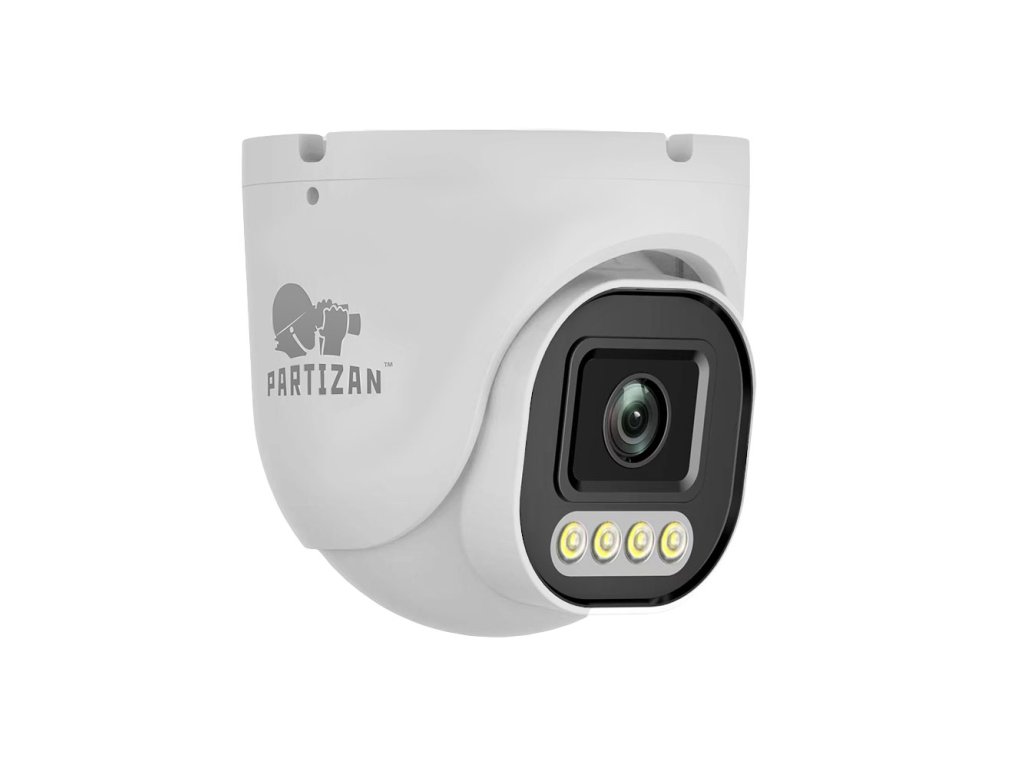

The Partizan IPD-2SP-IR SE 5.0 Cloud is a CCTV IP camera from the Cloud series, featuring a 1/2.8" CMOS sensor with 2.9 µm pixel size. This cloud-enabled surveillance camera supports multiple resolutions up to 2560x1440 at 20 fps, with H.265 and H.265X video compression.
The camera provides a 91-degree horizontal and 75-degree vertical field of view through its 2.8 mm spherical lens with M12 mount and F1.4 iris. It delivers 72 dB wide dynamic range, 0.01 lux sensitivity, and 48 dB signal-to-noise ratio. Video functions include AES, BLC, WDR, slow shutter, AEC, AGC, 3D DNR, anti-flicker, and IR-CUT with auto, color, and black-and-white day/night modes. The camera features 4 white LEDs with 25-meter illumination distance. Smart analytics include human detection and motion detection, while cloud capabilities provide PUSH notifications, remote access, and cloud recording through the Partizan mobile and desktop applications.
The metal housing carries IP67 rating with dimensions of 93 mm diameter by 85 mm height and 400 g weight. Power options include 12V DC at 500 mA consumption or PoE Class 0, with DC power supply not included. Operating temperature ranges from -40 to 60°C with 20-95% RH humidity tolerance. The camera comes with a drill template, mounting kit, and 3-year warranty.
Product details
| Model |
IPD-2SP-IR SE
|
| Version |
5.0 Cloud
|
| SKU |
5153
|
| Series |
Cloud series
|
Encoder
| Main stream |
2560x1440@20 fps, 2304x1296@20 fps, 1920x1080@25 fps, 1280x720@25 fps
|
| Sub stream |
800x448@20 fps
|
| Video codec |
H.265,
H.265X
|
Image sensor
| Sensor |
1/2.8" CMOS
|
| Pixel size |
2.9x2.9 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/50 - 1/10000 s
|
| Video functions |
AES,
BLC,
WDR,
Slow shutter,
AEC,
AGC,
3D DNR,
Anti flicker ,
IR-CUT
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.4
|
| Focal length |
2.8 mm
|
| Horizontal view |
91°
|
| Vertical view |
75°
|
IR LED
| LED type |
White LED
|
| Distance |
≤25 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
IP FILTER,
DDNS,
Email,
NTP,
UPnP,
FTP,
AlarmServer,
RTP/RTSP,
Mobile reported,
Serial pass-through
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Motion detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
PUSH notifications,
Remote access,
Cloud recording
|
| Desktop apps |
Partizan,
Partizan Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø93 x 85 mm
|
| Weight |
400 g
|
| Housing material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
500 mA
|
| DC power supply |
Not included
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
