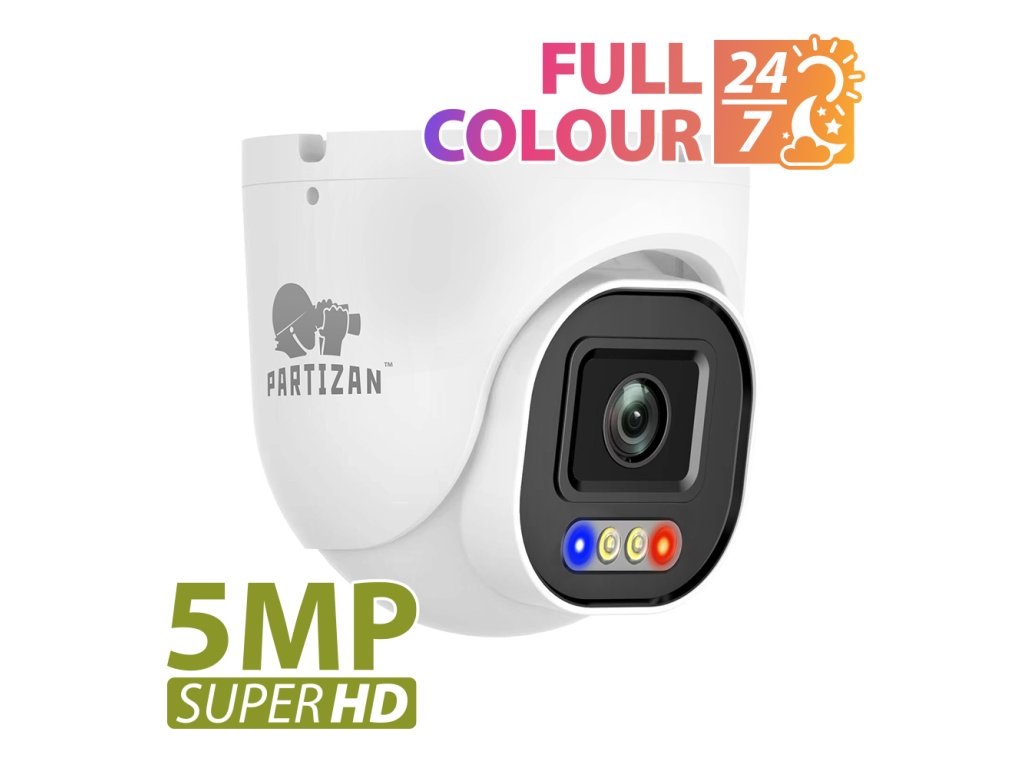

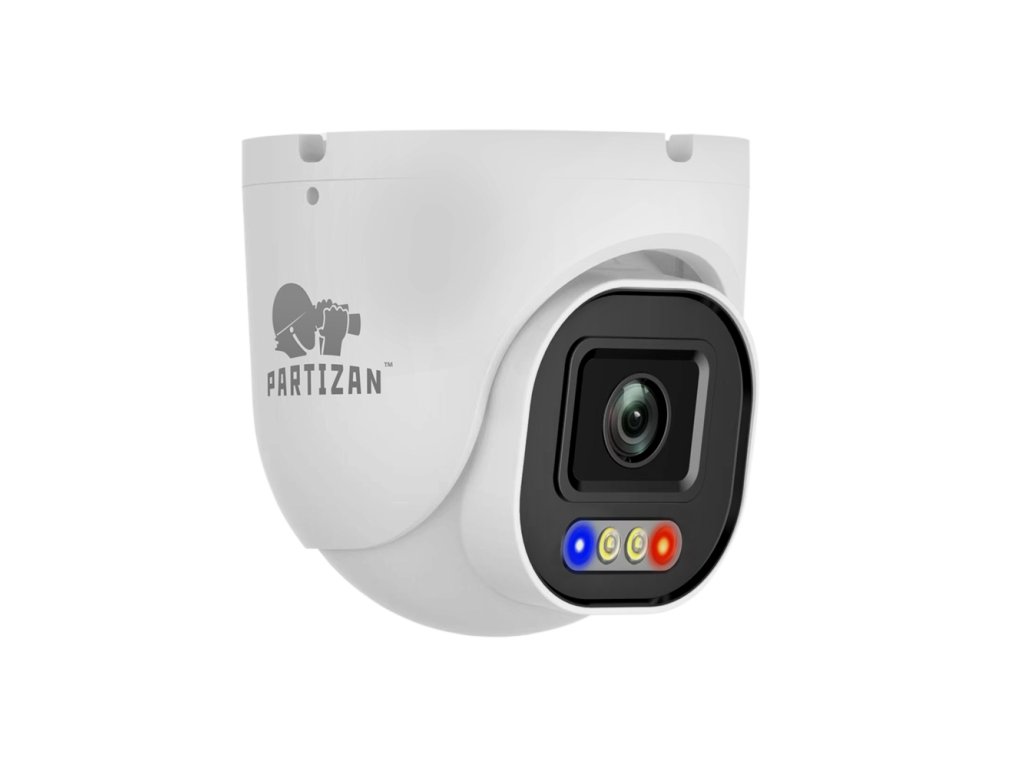

5Mp fix focus IP camera IPD-5SP-IR FADA Cloud
Code: 5219Related products
Product detailed description
The Partizan IPD-5SP-IR FADA Cloud is a cloud-enabled IP camera from the Cloud series, featuring a 1/2.8" CMOS sensor with main stream recording up to 2880×1620 at 25fps. This outdoor-ready dome camera supports H.264/H.265 video compression and includes built-in smart analytics for human and vehicle detection.
Key features
- ✓Smart analytics — human detection, vehicle detection, intrusion and line crossing detection
- ✓Cloud integration — remote access, cloud recording, and PUSH notifications via FADA Cloud
- ✓Wide viewing angle — 93° horizontal and 61° vertical field of view with 2.8mm lens
- ✓IR and white LED illumination — up to 25m range with 4 LEDs for day/night operation
- ✓72dB WDR — dynamic range for challenging lighting conditions
- ✓Flexible power options — 12V DC or PoE Class 0 support
- ✓Durable metal housing — IP67-rated for outdoor installation
The camera operates in temperatures from -40°C to 60°C with humidity tolerance of 20-95% RH (non-condensing). Power consumption is 500mA at 12V DC. Compact dimensions of 93mm diameter × 85mm height and 400g weight. Includes drill template and mounting kit with 3-year warranty.
Product details
| Model | IPD-5SP-IR |
|---|---|
| Version | FADA Cloud |
| SKU | 5219 |
| Series | Cloud series |
Encoder
| Main stream | 2880x1620@25 fps, 2560x1440@25 fps, 1920x1080@25 fps |
|---|---|
| Sub stream | 800x448@25 fps |
| Video codec | H.264, H.265 |
Image sensor
| Sensor | 1/2.8" CMOS |
|---|---|
| Pixel size | 2.0x2.0 μm |
| Day/Night mode | Auto, Color, Black&White, Full Color |
| Sensitivity | 0.01Lux |
| Dynamic range WDR | 72dB |
| S/N ratio | ≤48 dB |
| Exposure modes | Auto, Manual |
| Exposure range | 1/50 - 1/10000 s |
| Video functions | BLC, AES, AGC, AWB, OSD, Privacy mask, DWDR |
Lens
| Lens type | Spherical |
|---|---|
| Lens mount | М12 |
| Iris | F1.2 |
| Focal length | 2.8 mm |
| Horizontal view | 93° |
| Vertical view | 61° |
IR LED
| LED type | IR LED, White LED |
|---|---|
| Distance | ≤25 m |
| Number of LEDs | 4pcs |
Network
| Network interfaces | RJ-45 (10/100Base-T) |
|---|---|
| Network functions | IP FILTER, DDNS, RTP/RTSP, NTP, UPnP, Email, Cloud |
| Default IP address | DHCP |
| HTTP(s) port | 80 |
| Control port | 34567 |
| RTSP port | 554 |
| RTSP URL | rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp |
Default credentials
| Default login | admin |
|---|---|
| Default password | admin |
Software
| Smart analytics | Human detection, Intrusion detection, Line crossing detection, Vechicle detection |
|---|---|
| Smart analytics (important note) | IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders. |
| Cloud abilities | Remote access, Cloud recording, PUSH notifications |
| Desktop apps | Partizan, Partizan Setup Tool |
| Mobile app | Partizan |
| Web browsers | Google Chrome, Mozilla Firefox, Edge |
| Web browser languages | English, Russian, Arabic, French, Polish, Romanian, Hungarian, Italian, Czech |
| Web browser usage (important note) | Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global |
Mechanical specifications
| IP rating | IP67 |
|---|---|
| Dimensions | Ø93 x 85 mm |
| Weight | 400g |
| Housing material | Metal |
| Compatible mounts | PMB-1, PMB-1 v1.0, PMB-4, PMB-100, DH-PFA130-E |
Power
| DC power source | 12V |
|---|---|
| DC consumption | 500 mA |
| PoE | PoE Class 0 |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
Common
| Package contents | Drill template, Mounting kit |
|---|---|
| Warranty | 3 years |
Additional parameters
| Category: | Dome (Turret) |
|---|---|
| Warranty: | 3 years |
| Weight: | 0.33 kg |
| EAN: | 5061099730396 |
| Series: | Cloud |
| Case type: | Dome (Turret) |
| Resolution: | 5Mp |
| Lens Type: | Fixed Lens |
| Focus: | 2.8mm |
| Night vision type: | Full Colour (IR + White LED) |
| Night vision range: | 25m |
| Software support: | Partizan (PC/Android/iOS), Web interface (IE) |
| Housing material: | Metal |
| Special features: | RTSP, Alarm red & blue lights |
| Smart features: | Human Detection |
| The item has been sold out… | |
