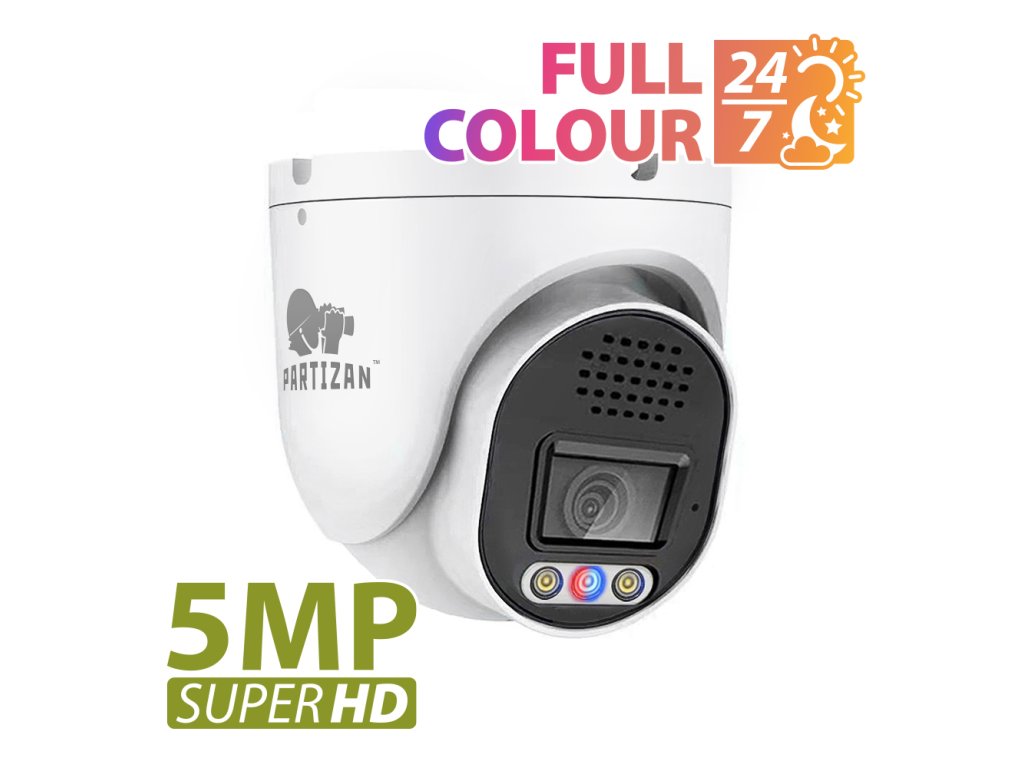

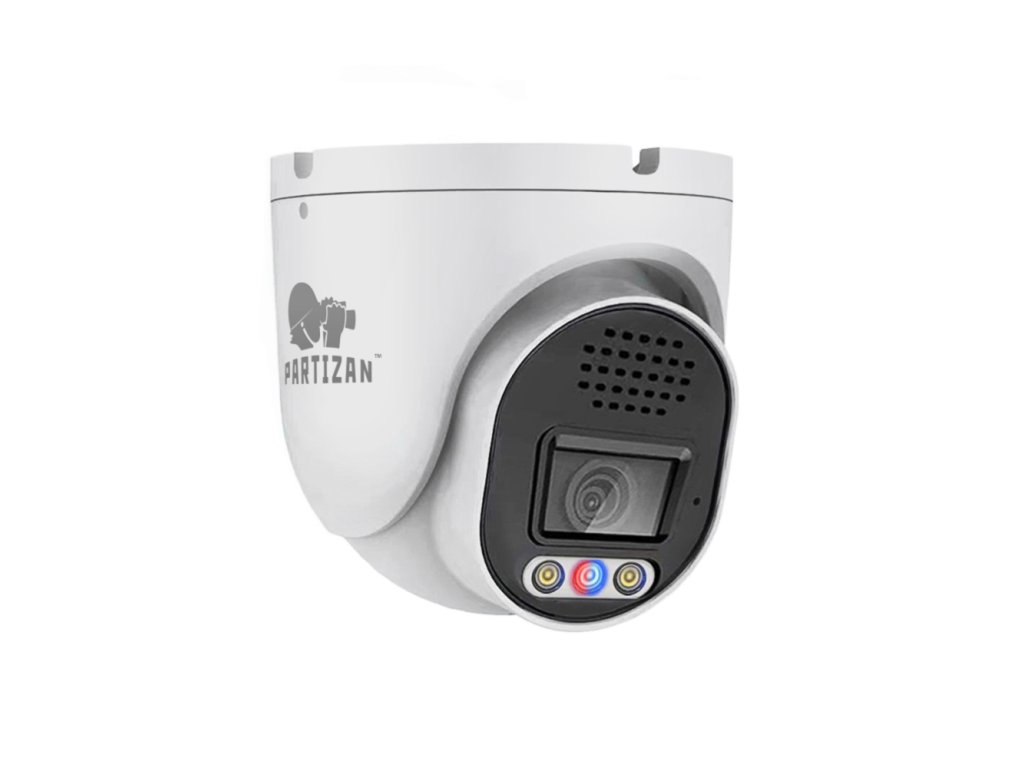

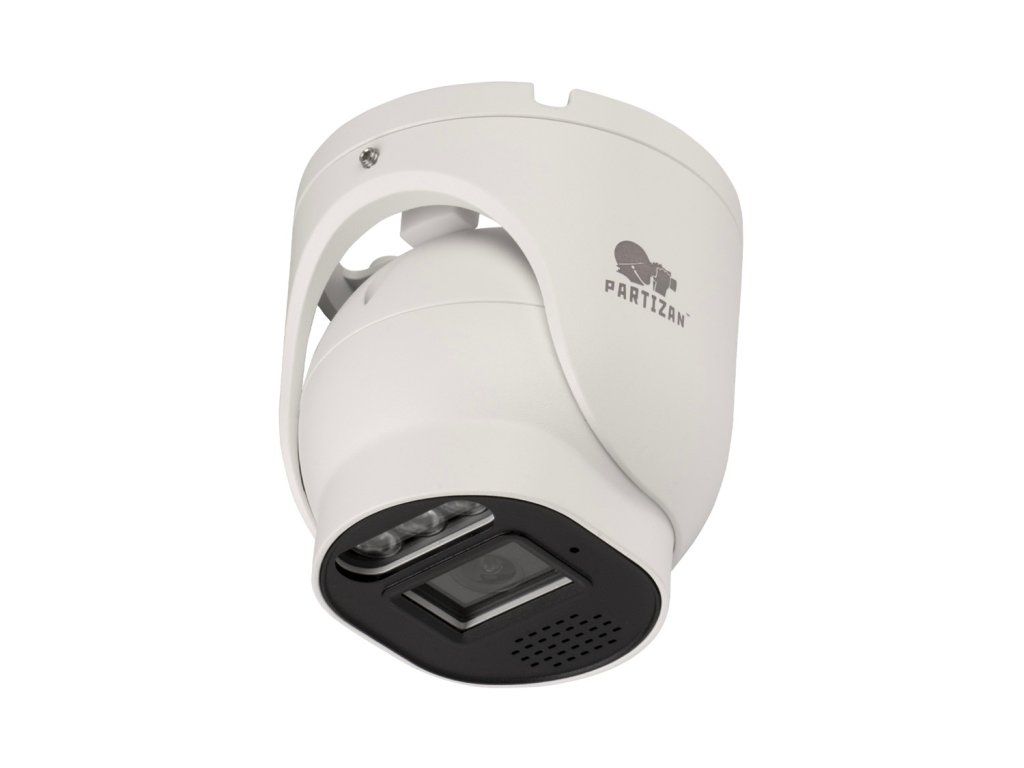

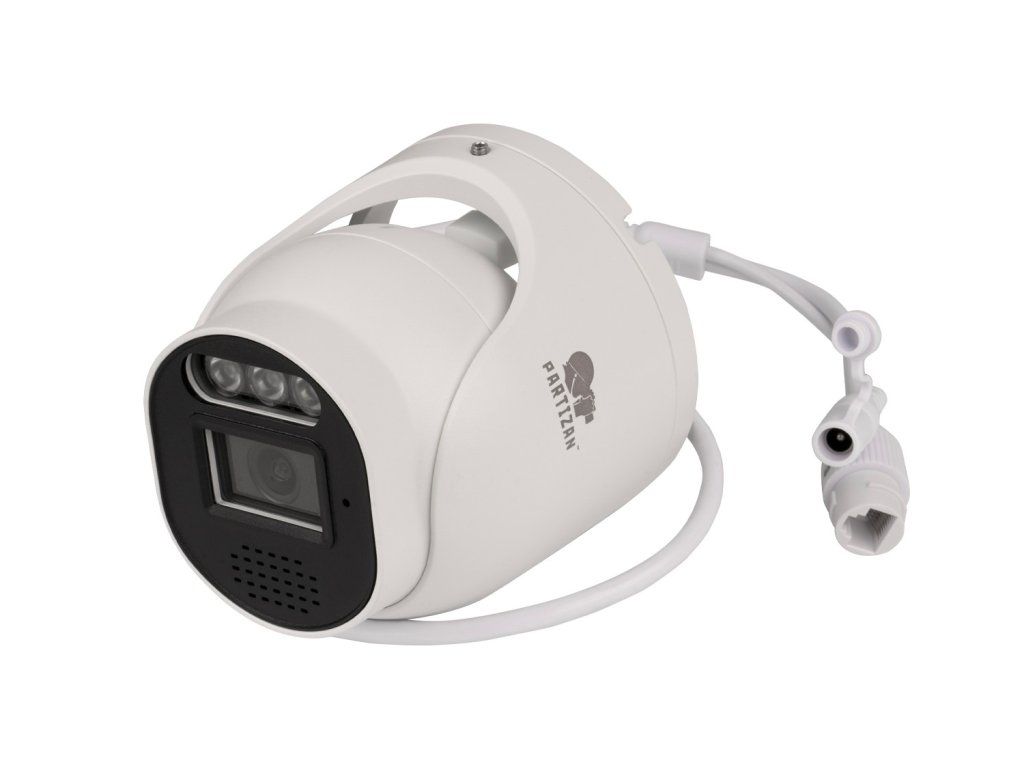

Partizan IPD-5SP-IR SDM FADA Cloud is a cloud-enabled IP camera from the Cloud series, featuring a 1/2.8" CMOS sensor with multiple resolution options including 2592x1944, 2560x1440, and 1920x1080 at 25 fps. This security camera utilizes H.265X video compression and G711A audio codec for efficient streaming and recording.
The camera offers a 2.8 mm spherical lens with M12 mount, providing a 93-degree horizontal and 61-degree vertical field of view. It features both IR LED and White LED illumination with 30-meter distance coverage using 4 LEDs. Smart analytics capabilities include human detection, face detection, and vehicle detection. The unit supports cloud functionality with remote access, cloud recording, and PUSH notifications. Video functions include AES, AGC, AWB, BLC, OSD, and privacy mask, with exposure range from 1/25 to 1/10000 and 72 dB dynamic range WDR. A built-in microphone and speaker enable two-way audio, while TF card storage supports up to 256 GB.
The camera features IP67-rated metal housing with dimensions of 110 mm diameter and 95 mm height, weighing 500 g. It operates on 12V DC (600 mA consumption) or PoE Class 0, functioning in temperatures from -40 to 60°C with 20-95% humidity. Network connectivity is via RJ-45 10/100Base-T with DHCP default addressing. The product includes a 3-year warranty.
Product details
| Model |
IPD-5SP-IR
|
| Version |
SDM FADA Cloud
|
| SKU |
5220
|
| Series |
Cloud series
|
Encoder
| Main stream |
2592x1944@25 fps, 2560x1440@25 fps, 1920x1080@25 fps
|
| Sub stream |
800x448@25 fps
|
| Video codec |
H.265X
|
| Audio codec |
G711A
|
Image sensor
| Sensor |
1/2.8" CMOS
|
| Pixel size |
2.0x2.0 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/25 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.6
|
| Focal length |
2.8 mm
|
| Horizontal view |
93°
|
| Vertical view |
61°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤30 m
|
| Number of LEDs |
4 pcs
|
Network

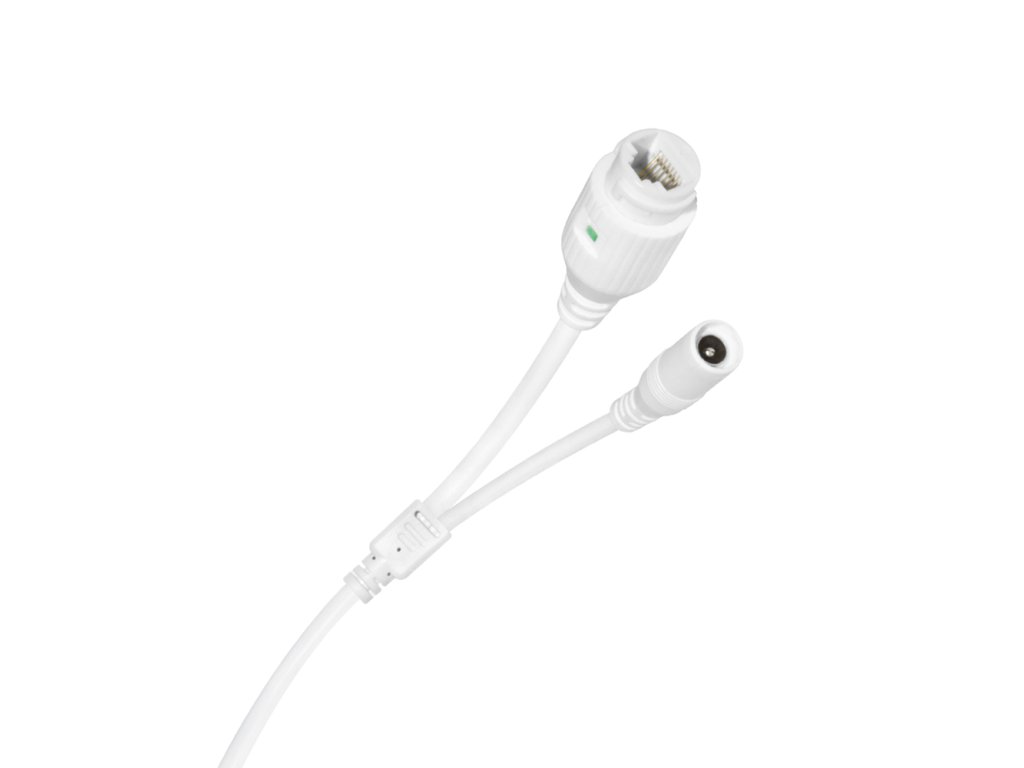

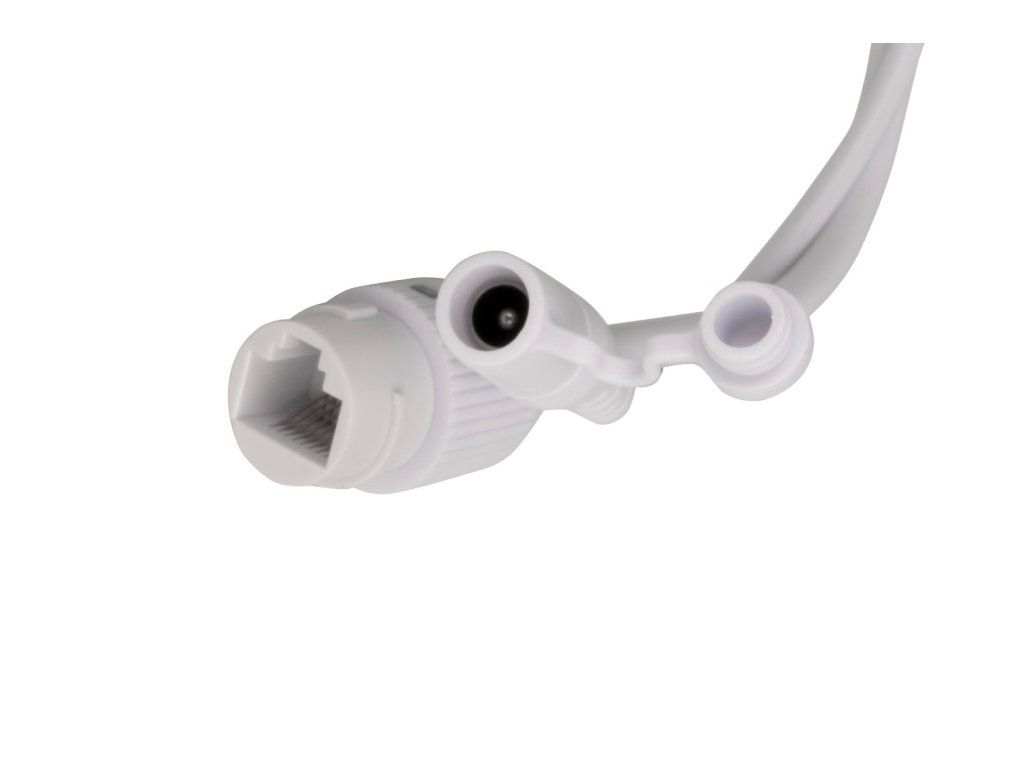

| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
Cloud,
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Face detection,
Vechicle detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Mic |
Built-in microphone
|
| Speaker |
Built-in speaker
|
| TF сard support |
≤256 Gb
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
Ø110 x 95 mm
|
| Weight |
500 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
600 mA
|
| DC power supply |
Not included
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common

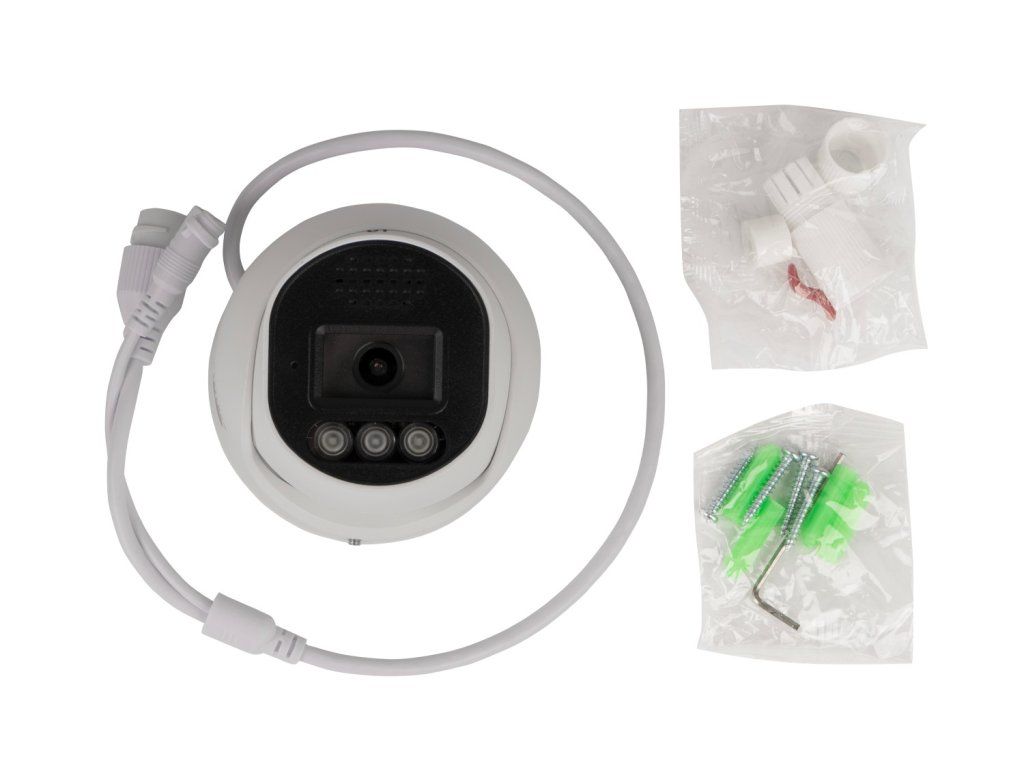

| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
