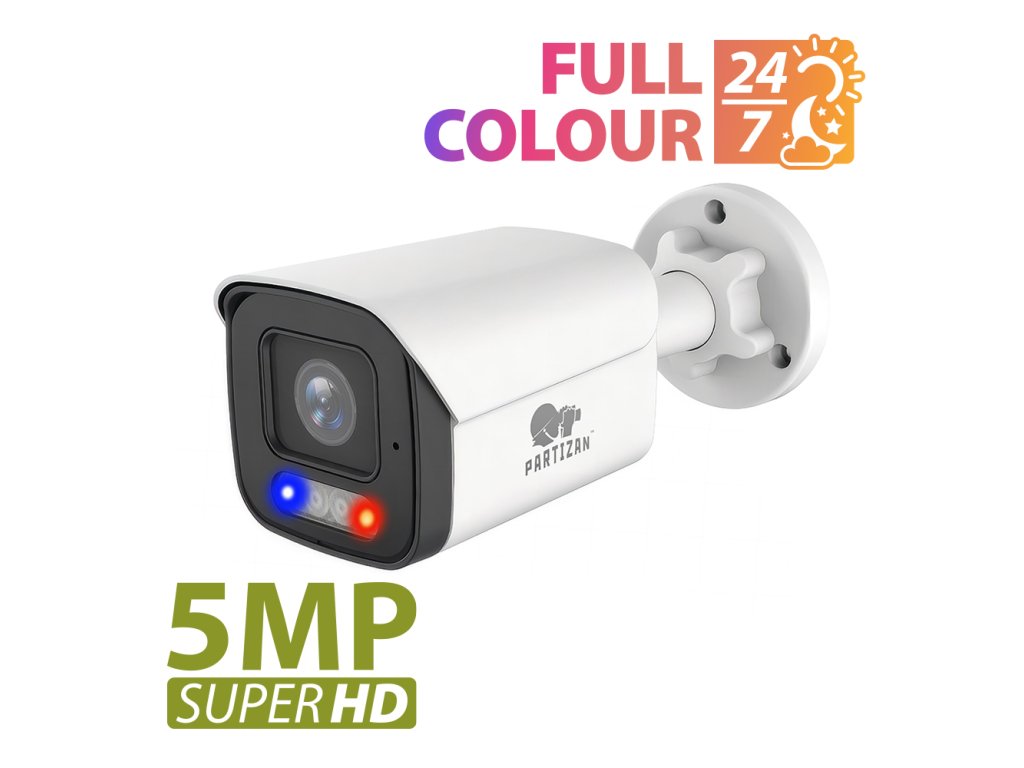

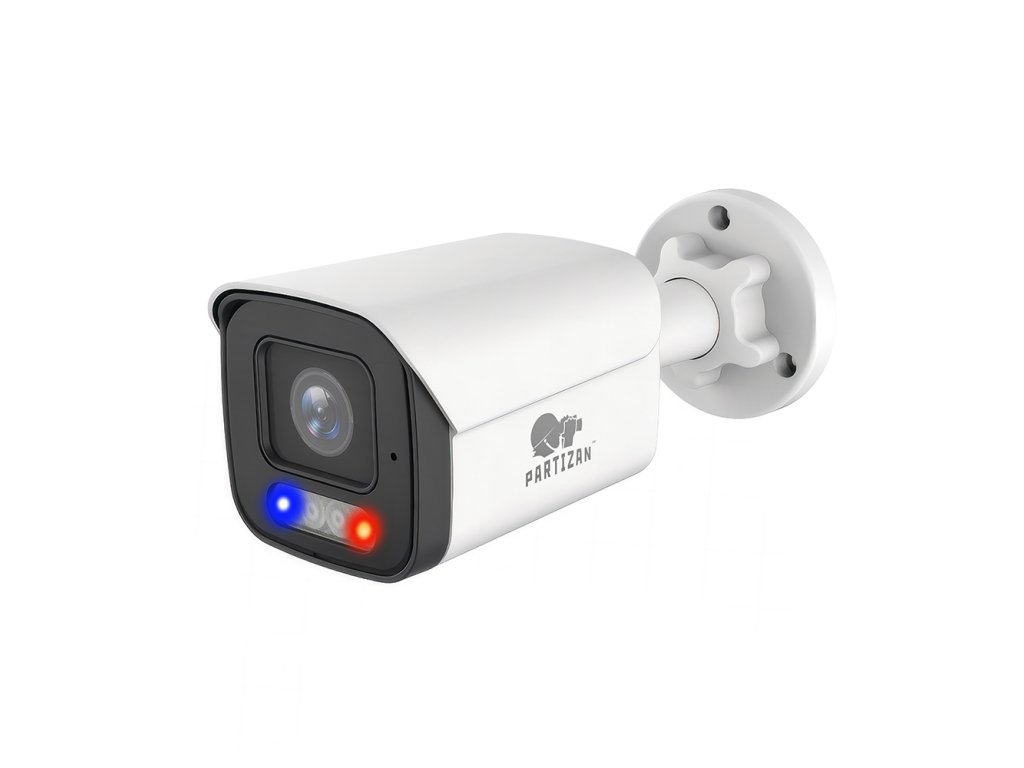

The Partizan IPO-5SP FADA Cloud is a CCTV IP camera from the Cloud series, featuring a 1/2.8" CMOS sensor with a 2.8mm spherical lens mounted on an M12 interface. This camera supports main stream resolutions up to 2880x1616 at 25fps, with H.265 and H.265X video codec options.
The camera offers a 93-degree horizontal and 61-degree vertical field of view, with day/night mode options including Auto, Color, and Black&White. It provides 72dB dynamic range WDR, 0.01 lux sensitivity, and a signal-to-noise ratio of 48dB. Illumination is provided by 4 LEDs consisting of IR LED and White LED types with a distance of 30 meters. Smart analytics capabilities include human detection, vehicle detection, intrusion detection, and line crossing detection. Cloud abilities encompass remote access, cloud recording, and PUSH notifications, accessible via the Partizan mobile and desktop apps or through Google Chrome, Mozilla Firefox, and Edge browsers. Network functions include DDNS, IP FILTER, Email, NTP, UPnP, and RTP/RTSP protocols.
The camera features IP67-rated protection with a metal housing and mount, measuring 98x72x71mm and weighing 450g. It operates on 12V DC with 1000mA consumption or PoE Class 0, functioning within -40 to 60°C operating temperatures and 20-95% RH humidity. The product includes a 3-year warranty.
Product details
| Model |
IPO-5SP
|
| Version |
FADA Cloud
|
| SKU |
5222
|
| Series |
Cloud series
|
Encoder
| Main stream |
2880x1616@25 fps, 2560x1440@25 fps, 1920x1080@25 fps, 1280x720@25 fps
|
| Sub stream |
720x576@25 fps, 352x576@25 fps, 352x288@25 fps, 320x240@25 fps
|
| Video codec |
H.265,
H.265X
|
Image sensor
| Sensor |
1/2.8" CMOS
|
| Pixel size |
2.0x2.0 μm
|
| Day/Night mode |
Auto,
Color,
Black&White
|
| Sensitivity |
0.01 Lux
|
| Dynamic range WDR |
72 dB
|
| S/N ratio |
48 dB
|
| Exposure modes |
Auto,
Manual
|
| Exposure range |
1/50 - 1/10000 s
|
| Video functions |
AES,
AGC,
AWB,
BLC,
OSD,
Privacy mask,
WDR
|
Lens
| Lens type |
Spherical
|
| Lens mount |
М12
|
| Iris |
F1.2
|
| Focal length |
2.8 mm
|
| Horizontal view |
93°
|
| Vertical view |
61°
|
IR LED
| LED type |
IR LED,
White LED
|
| Distance |
≤30 m
|
| Number of LEDs |
4 pcs
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
UPnP,
RTP/RTSP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Intrusion detection,
Line crossing detection,
Vechicle detection
|
| Smart analytics (important note) |
IP camera alarms can only be utilized with Partizan Cloud platform, Partizan mobile application, and Partizan Cloud series video recorders.
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Partizan Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
Mechanical specifications
| IP rating |
IP67
|
| Dimensions |
98 x 72 x 71 mm
|
| Weight |
450 g
|
| Housing material |
Metal
|
| Mount material |
Metal
|
Power
| DC power source |
12 V
|
| DC consumtion |
1000 mA
|
| PoE |
PoE Class 0
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Drill template,
Mounting kit
|
| Warranty |
3 years
|
