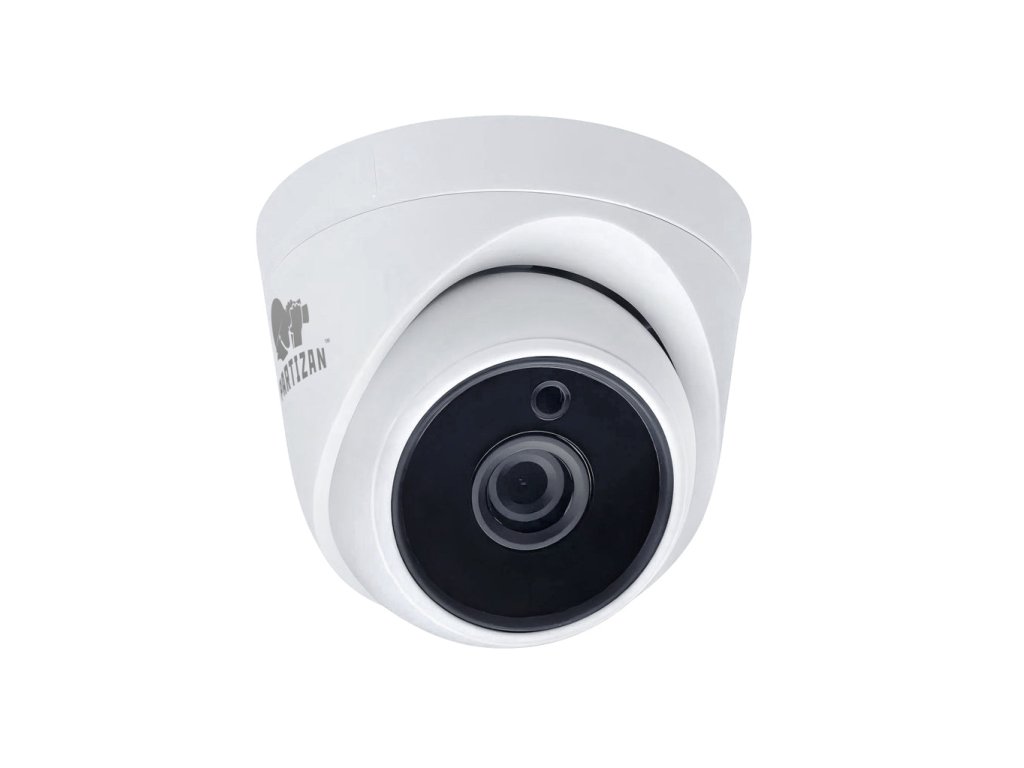

2Mp fix focus AHD camera CDM-223S-IR FullHD v3.0
Code: 6241Related products
Product detailed description
The Partizan CDM-223S-IR FullHD v3.0 is a versatile CCTV dome camera featuring a 1/2.7" CMOS sensor with 2MP resolution. This multi-format camera supports AHD/XVI, TVI, CVI, and CVBS operation modes, offering flexible integration with various surveillance systems.
Key features
- ✓Multi-format output — supports AHD/XVI, TVI, CVI, and CVBS modes
- ✓IR night vision — 3 IR LEDs with 20m illumination distance
- ✓Wide viewing angle — 89° horizontal and 58° vertical field of view
- ✓72dB WDR — enhanced dynamic range for challenging lighting
- ✓Day/Night switching — Auto, Color, and Black & White modes
- ✓UTC control — built-in OSD menu for easy configuration
- ✓2.8mm fixed lens — F1.4 aperture for low-light performance
The camera operates on 12V DC power with 500mA consumption and features IP44-rated plastic housing suitable for operating temperatures from -40°C to 60°C. Compact dimensions of 110mm diameter × 87mm height and 193g weight ensure easy installation. Backed by a 3-year warranty.
Product details
| Model | CDM-223S-IR |
|---|---|
| Version | FullHD v3.0 |
| SKU | 6241 |
Specifications
| Operation modes | AHD/XVI, TVI, CVI, CVBS |
|---|---|
| Built-in OSD menu | UTC control |
Image sensor
| Sensor | 1/2.7" CMOS |
|---|---|
| Pixel size | 2.8x2.8 μm |
| Resolution | 2MP@12.5fps |
| CVBS | 1300 TVL |
| Day/Night mode | Auto, Color, Black&White |
| Sensitivity | 0.01 Lux |
| Dynamic range WDR | 72 dB |
| S/N ratio | 48 dB |
| Exposure modes | Auto, Manual |
| Exposure range | 1/60 - 1/100 s |
| Video functions | OSD, AWB, BLC, Anti flicker , AE |
Lens
| Iris | F1.4 |
|---|---|
| Focal length | 2.8 mm |
| Horizontal view | 89° |
| Vertical view | 58° |
IR LED
| LED type | IR LED |
|---|---|
| Distance | ≤20 m |
| Number of LEDs | 3 pcs |
External interfaces
| Video output | BNC |
|---|
Mechanical specifications
| IP rating | IP44 |
|---|---|
| Dimensions | Ø110 x 87 mm |
| Weight | 193 g |
| Housing material | Plastic |
Power
| DC power source | 12 V |
|---|---|
| DC consumption | 500 mA |
| DC power supply | Not included |
Operating conditions
| Humidity range | 20-95% RH (non-condensing) |
|---|---|
| Operating temperature | -40 - 60 °C |
| Storage temperature | -40 - 60 °C |
Common
| Warranty | 3 years |
|---|
Additional parameters
| Category: | Dome (Turret) |
|---|---|
| Warranty: | 3 years |
| Weight: | 1 kg |
| EAN: | 5060491860038 |
| Case type: | Dome (Turret) |
| Resolution: | 2Mp |
| Lens Type: | Fixed Lens |
| Focus: | 2.8mm |
| Night vision type: | Starlight (IR) |
| Night vision range: | 20m |
| Housing material: | Plastic |
