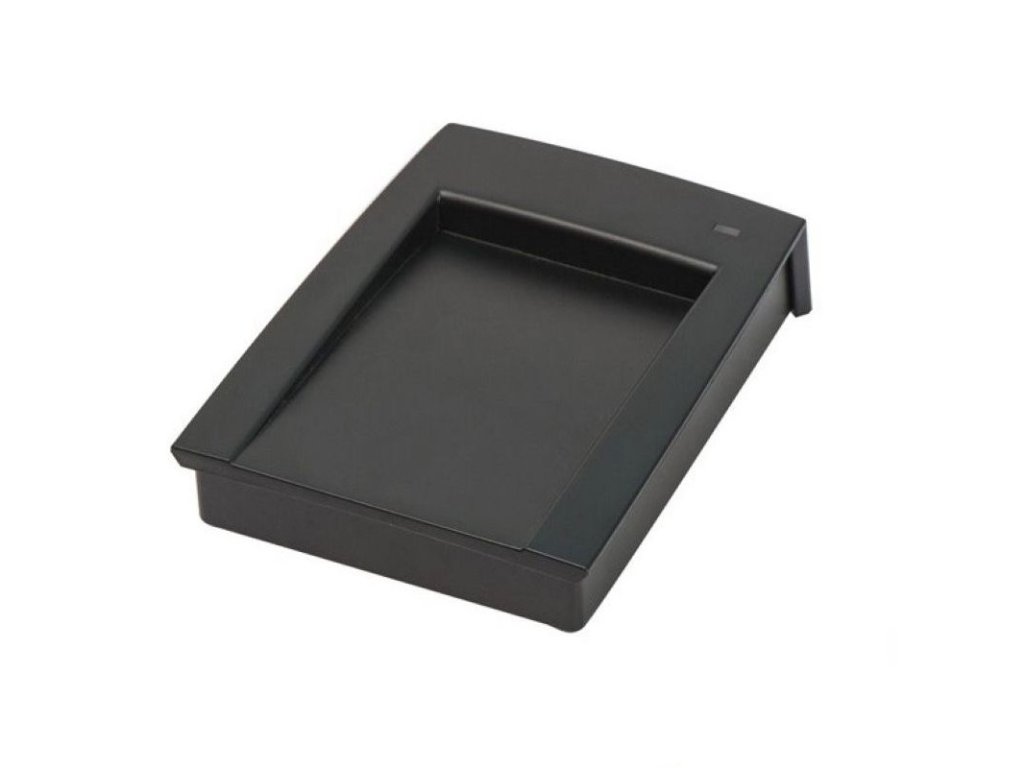

The Partizan PAR-M1 USB is an access control reader operating on the 13.56 MHz MIFARE RF standard. This compact device functions as a dedicated reader with USB 2.0 connectivity, offering a reading distance of 0 to 10 units.
The PAR-M1 USB supports external LED control and external buzzer control for integration with notification systems. The unit does not include a PIN or keypad interface. It is powered via USB 2.0 at 5V and features an IP44 ingress protection rating.
The device measures 100 x 80 x 20 mm and weighs 120 units. It operates within a temperature range of 0 to 40 °C and humidity range of 20-95% RH non-condensing, with storage temperature rated at -20 to 35 °C. The package includes a 1.4 m USB cable. The Partizan PAR-M1 USB comes with a 3-year warranty.
Product details
| Model |
PAR-M1
|
| Version |
USB
|
| SKU |
764
|
Interfaces
| Working modes |
Reader
|
| RF standards |
13.56 MHz MIFARE
|
| Reading distance |
0 - 10 cm
|
| External LED control |
yes
|
| External buzzer control |
yes
|
Electrical specification
| Operating voltage |
5 V USB (2.0)
|
Mechanical specifications
| PIN / keypad |
no
|
| IP rating |
IP 44
|
| Dimension |
100 x 80 x 20 mm
|
| Weight |
120 g
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
0 - 40 °C
|
| Storage temperature |
-20 - 35 °C
|
Common
| Package contents |

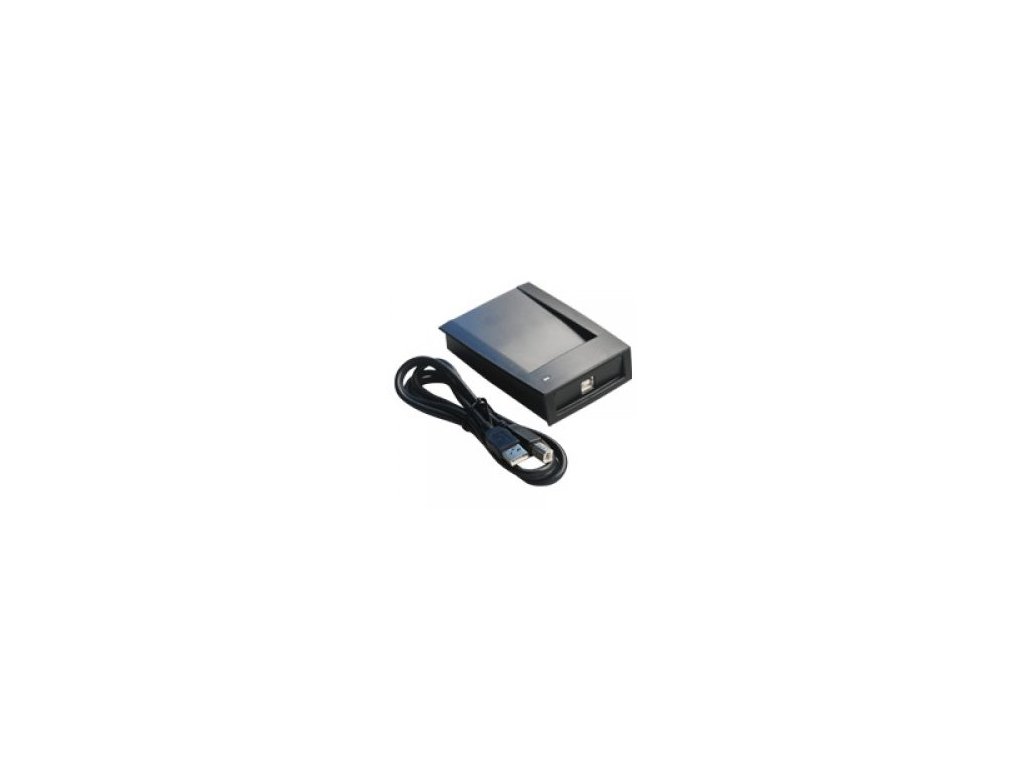

USB cable 1.4 m
|
| Warranty |
3 years
|
