8Mp for 8 cameras ADH-18V UltraHD v5.1

Product detailed description

A high-tech device for organizing a video surveillance system. The connection to 8 video cameras with 8Mp resolution is allowed. In the hybrid mode - up to 8 AHD cameras with 8Mp resolution and up to 4 IP cameras with 5Mp resolution.

All the video surveillance channels are recorded simultaneously by the device in real-time mode. Four recording modes - fulltime, alarm, motion or schedule - provide an opportunity to configure the system of video surveillance according to defined tasks within every period of time. The backup to USB storage devices is allowed.

H.265 is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk. You can also connect a hard disks up to 8TB each (not included) to this DVR.

The network managing can be provided from any place of the world. The modern software includes a convenient configurator and a CMS monitoring system. The Ethernet 10/100Base-T network interface provides a reliable, protected connection with the optimal data transfer rate, the maximum value of which is up to 100 Mbit/s.

This model is equipped with audio input and output for recording and sound playback.

Main Features

Supported camera quantity: 8 AHD or analog cameras

Recording: 8xAHD 4K-N@9, 8xAHD 5Mp@16, 8xAHD-H@25

Hybrid: 8xAHD 4K-N@9 4x5Mp@25

Video compression: H.264(HighProfile)/H.265 is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk

Audio inputs/outputs: 1ch RCA/1ch RCA. 1 audio input (AUDIO IN) for audio recording and 1 audio output (AUDIO OUT) for audio playback

Video outputs: 1xVGA, 1xHDMI

Network: Ethernet 10/100Base-T

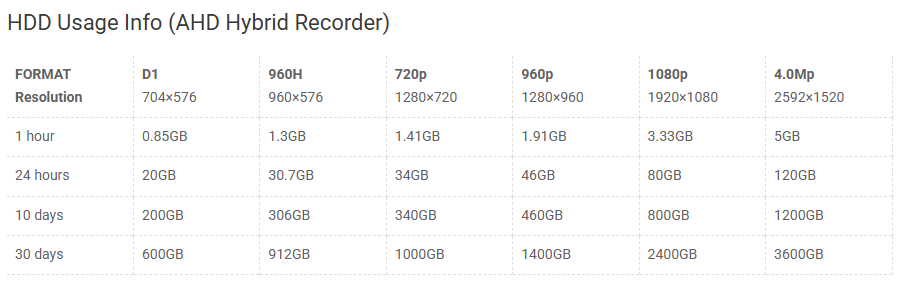

Supported HDD (HDD not included): 1хSATA HDD ≤ 8Tb

Dimensions: 250×210×42 mm, 668 g

Management and control: Optical mouse

Housing material: Metal

Operating temperature: 0 - 55 °C



Additional advantages:

— H.265 is a highly efficient video compression technology that allows you to compress a high resolution video to a minimum size without quality loss, which saves space on your hard disk

— Hybrid AHD DVR 8-channel

— AHD/TVI/CVI/CVBS/IP support

— 8Mp AHD support

— 1xSATA (max. 8Tb)

— ONVIF 2.4 protocol support

— Smart functions support: Human Detection

— Support mobile monitoring: iOS & Android

— Ability to work with Partizan Cloud Storage

— Remote access to the device with Partizan MAC

— 3 years warranty



Download ADH-18V UltraHD 5.1 Datasheet
Download DVR Manual
Download Software
