8Mp (4K) for 16 cameras NVH-1622 v1.1 Cloud

Product detailed description

You can connect up to 16 video cameras with a resolution of 8Mp to this multifunctional IP Network Video Recorder. All surveillance channels are recorded simultaneously in real-time. Four recording modes – continuous, alarm, motion detection, or schedule – allow flexible configuration of the system according to specific tasks.

The device supports USB backup, while the H.265 compression technology ensures high-quality video storage with minimal disk space usage. The NVR can be accessed remotely via Partizan MAC from anywhere in the world. It also supports modern smart functions such as human detection, perimeter intrusion, line crossing, and face detection (with Cloud-series cameras). The unit has HDMI and VGA video outputs, audio input and output, and works with one SATA HDD up to 14TB.

Main Features

Supported camera quantity (x) recording resolution @ fps: 6x8Mp@25, 8x8Mp@25, 4x8Mp@25, 1x8Mp@25
POE function: Not available. An external switch is required for camera connection
Video compression: H.265 (highly efficient video compression, saves storage space without quality loss)
Audio inputs/outputs: 1x TRS 3.5mm (in), 1x TRS 3.5mm (out)
Video outputs: 1x VGA, 1x HDMI

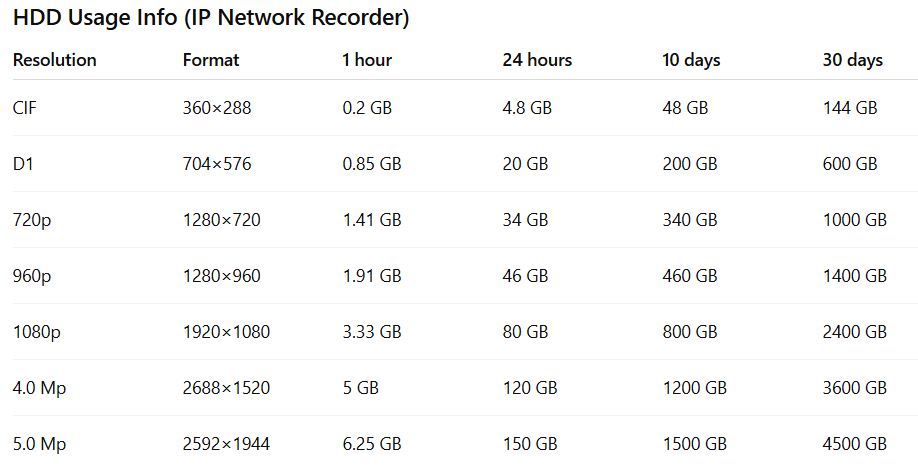

Supported HDD (not included): 1x SATA HDD ≤ 14TB
Network: RJ-45 (10/100Base-T)
Management and control: Optical mouse
Operating temperature: 0 – +50 °C
Dimensions: 255 × 215 × 43 mm, 350 g
Housing material: Plastic front panel, metal casing

Additional Advantages
- ONVIF 2.4 protocol support
- 16-channel 8Mp (4K) real-time recording
- Smart functions: Human detection, Perimeter Intrusion, Line Crossing, Face Detection (only with Cloud-series cameras)
- Support for mobile monitoring (iOS & Android)
- Integration with Partizan Cloud Storage
- Remote access with Partizan MAC
- USB backup support
- 3 years warranty

Download NVH-852 3.4 Cloud datasheet

Package Includes:

1x Partizan NVH-1622 v1.1 Cloud NVR
1x Power adapter
1x Optical mouse
