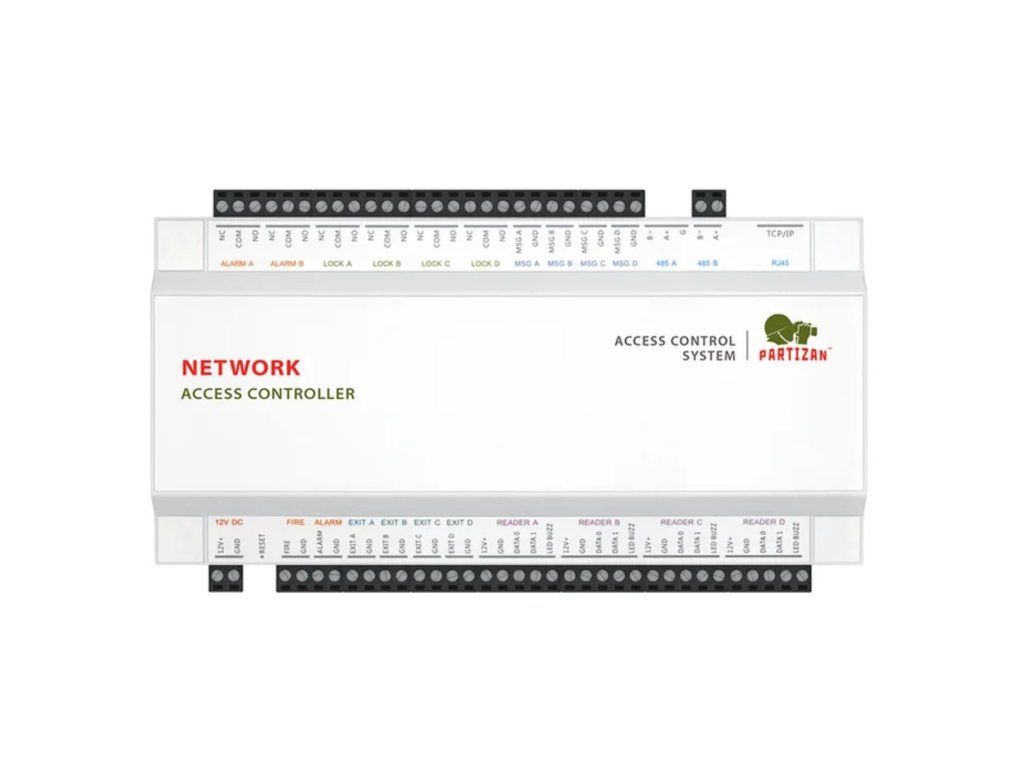

Network Access Controller PAC-42.NET v1.0 (4 Doors, 8 Readers)

The Partizan PAC-42.NET 1.0 is a four-door access controller designed for multi-entry security management. This network-enabled controller supports up to 8 readers and can store credentials for up to 30,000 users with an event log capacity of 60,000 records. The controller features a Wiegand 26/34 card reader interface and connects via Ethernet using TCP/IP and MQTT communication protocols. It includes 4 door sensors, 4 exit button inputs, and 4 relay lock outputs for comprehensive door management. The system provides 1 fire alarm input, 1 fire alarm output, 1 alarm input, and 1 alarm output, with fire unlock functionality included. Non-volatile memory ensures data retention for 10 units without power. The unit is managed through the Partizan ACM desktop application with English language support. The panel operates on 12V DC power with 180 consumption and is housed in a white plastic enclosure with IP44 rating. Dimensions measure 215 x 125 x 37 mm with a weight of 240. Operating temperature ranges from -20 to 40°C at 20-95% RH non-condensing. The product includes a 3-year warranty.
