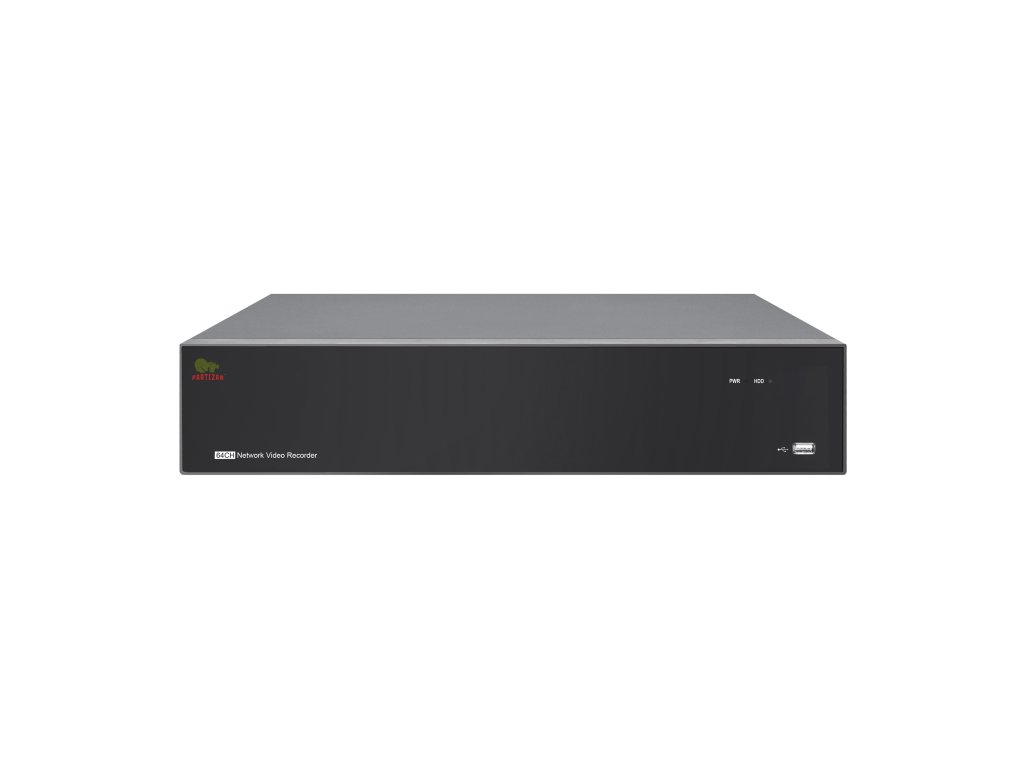

The Partizan NVH-6452 is a 64-channel network video recorder from the SH series, designed for professional CCTV surveillance applications. This rack-mount 2U unit features a metal housing with a plastic front panel and supports H.264 and H.265 video compression along with G711A audio encoding.
The NVH-6452 offers recording at 25 fps across multiple resolution modes including 8MP, 5MP, and 2MP for all 64 channels. The system supports various video splitter modes from single-channel up to 64-channel display, with output resolutions ranging from 1024x768 to 2560x1440 via VGA and three HDMI ports. Storage capacity includes up to 8 internal HDDs with maximum 12TB each and 1 external HDD up to 8TB. Smart analytics features include face detection, pedestrian and vehicle detection, license plate recognition, line crossing, intrusion detection, heat map, crowd density detection, and audio detection. Two-way audio is supported with 1 audio input and 1 audio output. The unit provides 16 alarm inputs and 4 alarm outputs, plus USB connectivity with 1 USB 2.0 and 2 USB 3.0 ports. Network functions include DDNS, FTP, NTP, PPPoE, UPnP, Email, IP Filter, and RTP/RTSP via RJ-45 Gigabit interface. Cloud capabilities include remote access, cloud recording, and PUSH notifications, accessible through Partizan desktop and mobile apps or web browsers.
The NVH-6452 operates on 220V AC at 50-60Hz within -40 to 60°C temperature range and 20-95% relative humidity. Dimensions are 440x460x89mm with 11kg weight. Package includes optical mouse and power adapter with 3-year warranty.
Product details
| Model |
NVH-6452
|
| Version |
1.0
|
| SKU |
2763
|
| Series |
SH series
|
Encoder
| Maximum cameras |
64 pcs
|
| Recording modes (IP) |
64x8MP@25 fps, 64x5MP@25 fps, 64x2MP@25 fps
|
| Video codec |
H.264,
H.265
|
| Audio codec |
G711A
|
| Two-way audio |
yes
|
Graphical user interface
| Display resolution |
2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
|
| Video splitter modes |
64,
1,
4,
6,
8,
9,
10,
13,
14,
16,
17,
19,
22,
25,
32,
36
|
Storage
| Internal HDD |
8 x 12 TB
|
| External HDD (eSATA) |
1 x 8 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100/1000Base-T)
|
| Network functions |
DDNS,
IP FILTER,
Email,
NTP,
PPPoE,
UPnP,
FTP,
RTP/RTSP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
9988
|
| RTSP port |
554
|
| RTSP URL |
rtsp://LOGIN:PASSWORD@IP:PORT/rtsp/streaming?channel=1&subtype=0
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Face detection,
Pedestrian Detection,
Vechicle detection,
Cross counting,
Heat map,
Crowd density detection,
Intrusion detection,
Line crossing detection,
Queue length detection,
License plate detection,
Audio detection
|
| Smart analytics (important note) |
Smart alarms can only be used with SH-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser usage (important note) |
Web browser access requires Partizan SurveillancePluginV2 installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
3 x HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| Alarm inputs |
16
|
| Alarm outputs |
4
|
| USB ports |
1 x USB 2.0, 2 x USB 3.0
|
Mechanical specifications
| Form factor |
Rack-mount 2U
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
440 x 460 x 89 mm
|
| Weight |
11000 g
|
Power
| AC power supply |
220 V 50-60 Hz
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Optical mouse,
Power adapter
|
| Warranty |
3 years
|
