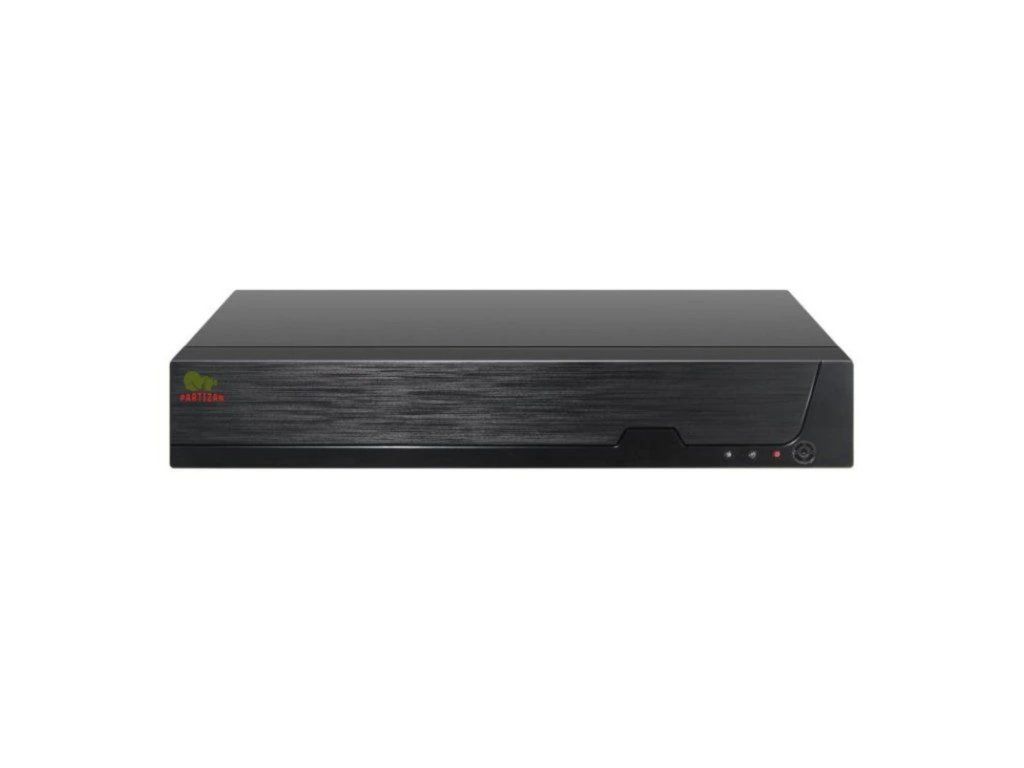

The Partizan NVH-852 3.4 Cloud is a network video recorder from the Cloud series, designed to support up to 36 IP cameras. This desktop NVR features H.264 and H.265 video compression along with G711A audio codec support and two-way audio capability.
The recorder offers multiple recording configurations at 25 fps across various channel counts including 36, 25, 16, 9, 8, 4, and 1 channels at 8 MP resolution. Smart analytics features include human detection, intrusion detection, line crossing detection, and face detection. Cloud functionality provides remote access, cloud recording, and PUSH notifications. The system supports display resolutions up to 3840x2160 with video splitter modes of 1, 2, 4, 8, 9, 16, 25, and 36 views. Network functions include IP FILTER, DDNS, Email, NTP, PPPoE, UPnP, FTP, and RTP/RTSP, accessible via RJ-45 10/100Base-T interface. Video output options include VGA and HDMI, with 1 audio input and 1 audio output. The unit accommodates 2 internal HDDs up to 14 TB and includes 2 USB ports.
The NVR features a metal housing with plastic front panel, measuring 325x243x53 mm and weighing 1120 g. It operates on 12V DC with 4000 mW consumption, with power supply included. Operating temperature ranges from -40 to 60°C with 20-95% RH humidity tolerance. The package includes a power adapter and optical mouse, backed by a 3-year warranty.
Product details
| Model |
NVH-852
|
| Version |
3.4 Cloud
|
| SKU |
4291
|
| Series |
Cloud series
|
Encoder
| Maximum cameras |
36 pcs
|
| Recording modes (IP) |
36x8MP@25 fps, 25x8MP@25 fps, 16x8MP@25 fps, 9x8MP@25 fps, 8x8MP@25 fps, 4x8MP@25 fps, 1x8MP@25 fps
|
| Video codec |
H.264,
H.265
|
| Audio codec |
G711A
|
| Two-way audio |
yes
|
Graphical user interface
| Display resolution |
3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x720, 1024x768
|
| Video splitter modes |
1,
2,
4,
8,
9,
16,
25,
36
|
Storage
| Internal HDD |
2 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Network functions |
IP FILTER,
DDNS,
Email,
NTP,
PPPoE,
UPnP,
FTP,
RTP/RTSP
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Intrusion detection,
Line crossing detection,
Face detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces
| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|
Mechanical specifications
| Form factor |
Desktop
|
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
325 x 243 x 53 mm
|
| Weight |
1120 g
|
Power
| DC power source |
12 V
|
| DC consumtion |
4000 mA
|
| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common
| Package contents |
Power adapter,
Optical mouse
|
| Warranty |
3 years
|
