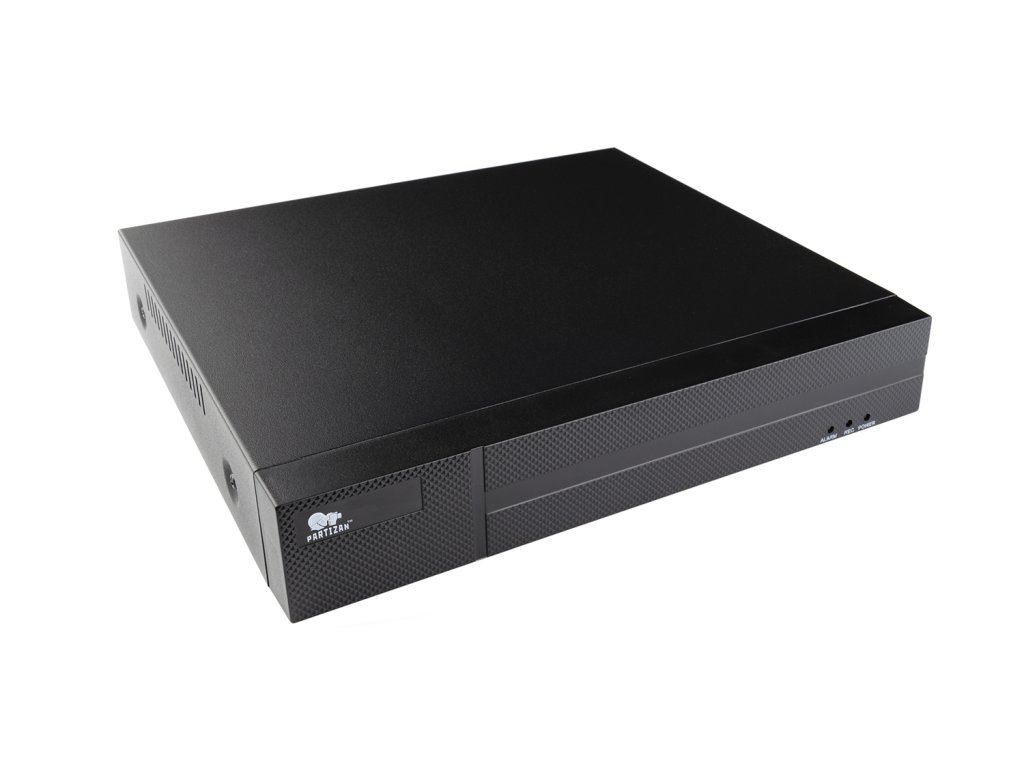

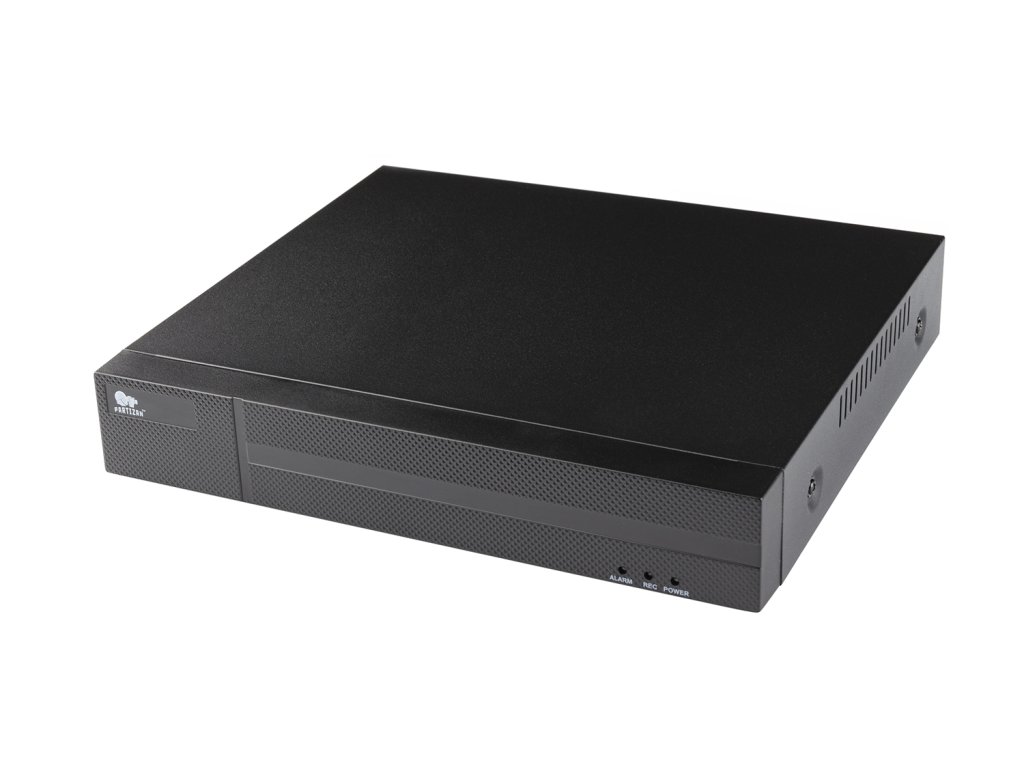

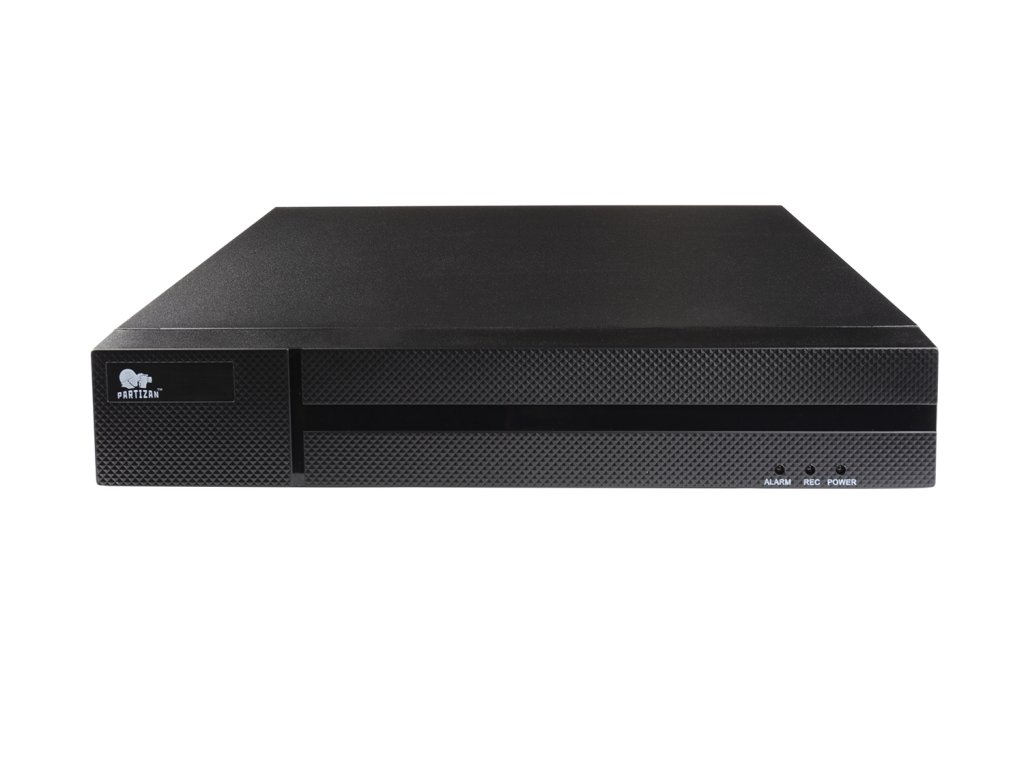

The Partizan NVH-1622 version 1.1 Cloud is a network video recorder from the Cloud series, supporting up to 16 IP cameras. This 16-channel NVR features H.264 and H.265 video compression with G711A audio codec and two-way audio capability.
The recorder offers multiple recording configurations at 25 fps across various resolution combinations and provides video splitter modes including 1, 2, 4, 6, 8, 9, and 16 views. Display output supports resolutions up to 2560x1440 through VGA and HDMI connections. Smart analytics capabilities include human detection, intrusion detection, line crossing detection, and face detection. Cloud features encompass remote access, cloud recording, and PUSH notifications, accessible via the Partizan mobile app, desktop applications, and web browsers including Google Chrome, Mozilla Firefox, and Edge. The interface supports nine languages including English, Russian, Arabic, French, Polish, Romanian, Hungarian, Italian, and Czech.
The unit accommodates one internal HDD up to 14TB, operates on 12V DC power with included power supply consuming 5000mA, and functions within -40 to 60°C at 20-95% RH non-condensing. The metal housing with plastic front panel measures 255x215x43mm, weighs 350g, and includes a 3-year warranty.
Product details
| Model |
NVH-1622
|
| Version |
1.1 Cloud
|
| SKU |
6627
|
| Series |
Cloud series
|
Encoder
| Maximum cameras |
16 pcs
|
| Recording modes (IP) |
16x8MP@25 fps, 8x8MP@25 fps, 4x8MP@25 fps, 1x8MP@25 fps
|
| Video codec |
H.264,
H.265
|
| Audio codec |
G711A
|
| Two-way audio |
yes
|
Graphical user interface
| Display resolution |
2560x1440, 1920x1080, 1440x900, 1280x1024, 1280x720
|
| Video splitter modes |
1,
2,
4,
6,
8,
9,
16
|
| Languages |
English,
Russian,
Arabic,
French,
Polish,
Romanian,
Hungarian,
Italian,
Czech
|
Storage
| Internal HDD |
1 x 14 TB
|
| HDD storage (important note) |
For reliable 24/7 operation, it is strongly recommended to use HDDs specifically designed for video surveillance systems. Hard disk drive is not included in the package.
|
Network
| Network interfaces |
RJ-45 (10/100Base-T)
|
| Default IP address |
DHCP
|
| HTTP(s) port |
80
|
| Control port |
34567
|
| RTSP port |
554
|
| RTSP URL |
rtsp://IP:PORT/user=LOGIN&password=PASSWORD&channel=1&stream=0.sdp
|
Default credentials
| Default login |
admin
|
| Default password |
admin
|
Software
| Smart analytics |
Human detection,
Intrusion detection,
Line crossing detection,
Face detection
|
| Smart analytics (important note) |
Smart alarms can only be used with Cloud-series IP cameras
|
| Cloud abilities |
Remote access,
Cloud recording,
PUSH notifications
|
| Desktop apps |
Partizan,
Setup Tool
|
| Mobile app |
Partizan
|
| Web browsers |
Google Chrome,
Mozilla Firefox,
Edge
|
| Web browser usage (important note) |
Web browser access requires Partizan ActiveX installation for device setup and live view. Available at www.apps.partizan.global
|
External interfaces

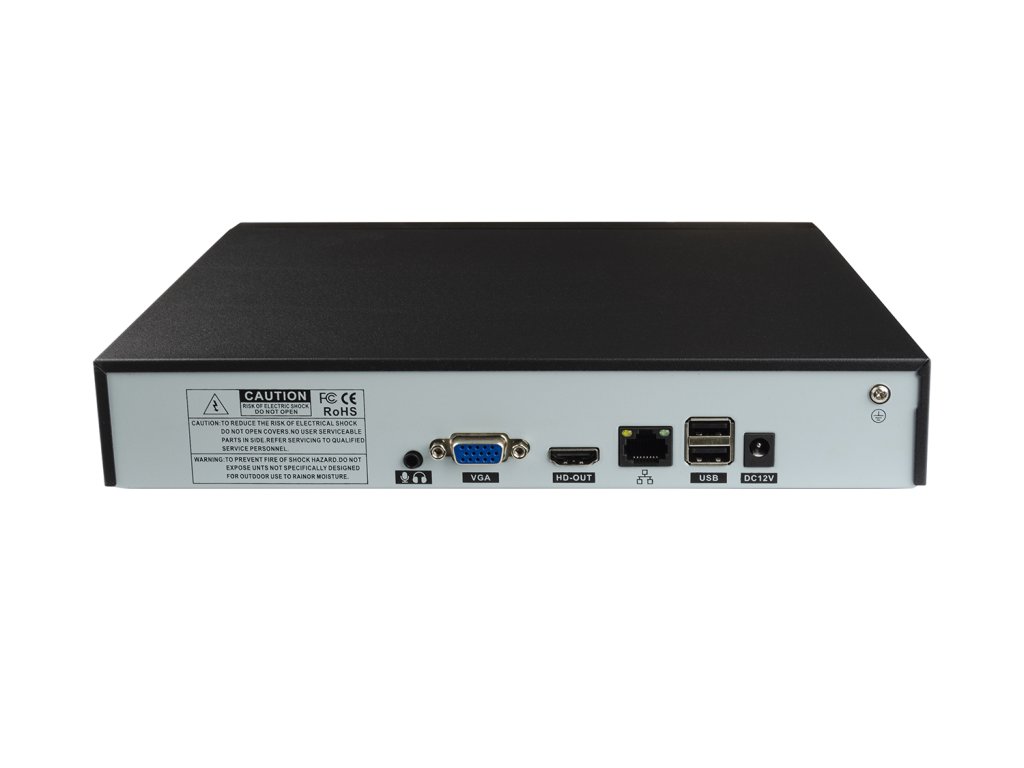

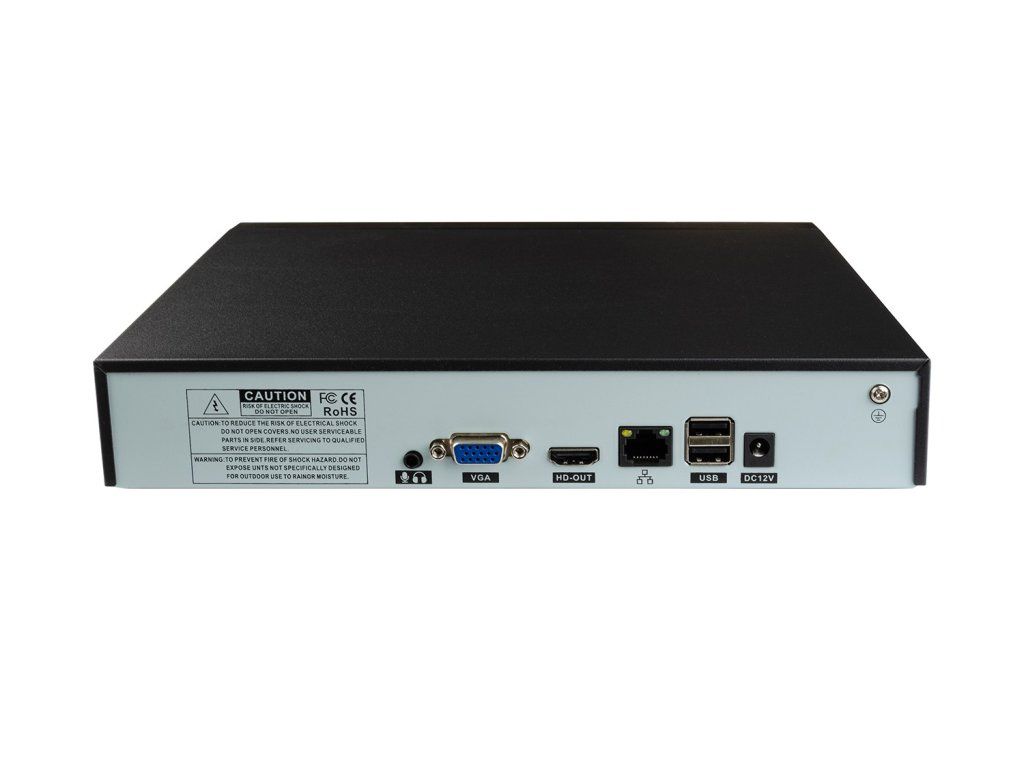

| Video output |
VGA,
HDMI
|
| Audio inputs |
1
|
| Audio outputs |
1
|
| USB ports |
2 x USB 2.0
|

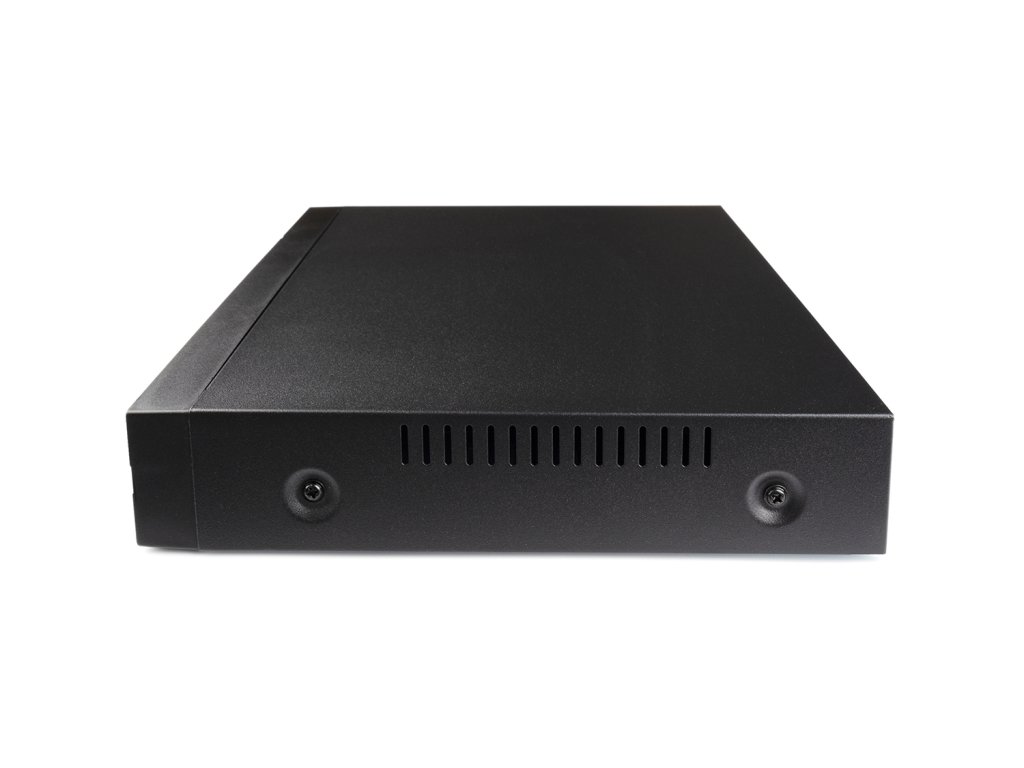

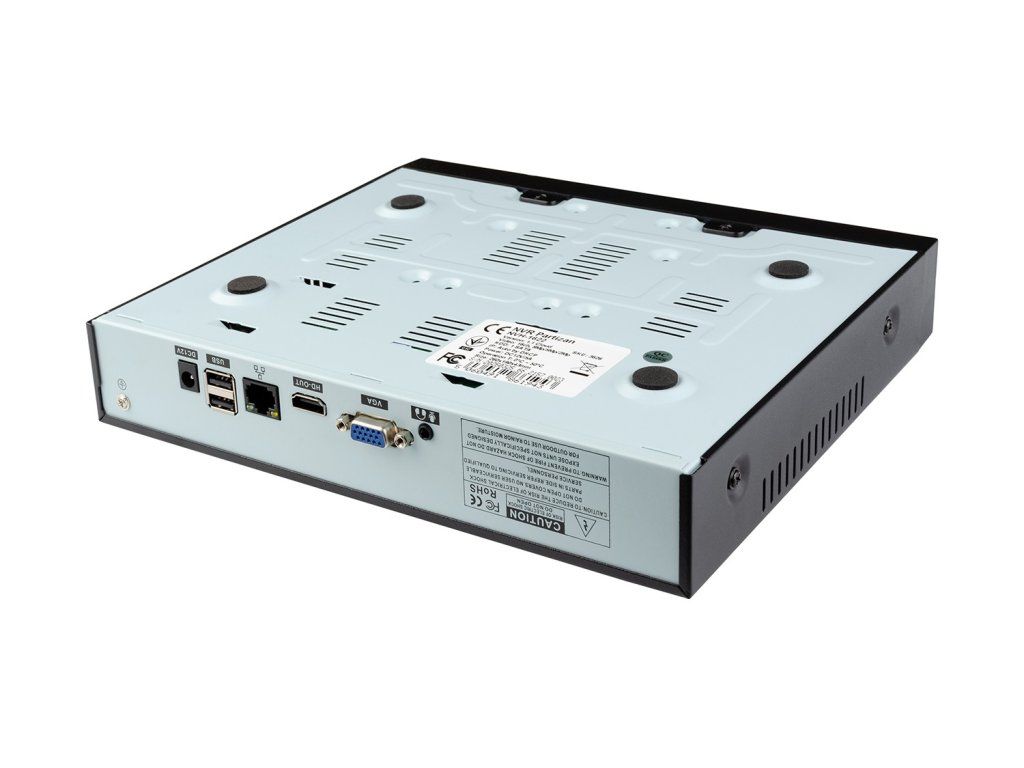

Mechanical specifications
| Front panel material |
Plastic
|
| Housing material |
Metal
|
| Dimension |
255 x 215 x 43 mm
|
| Weight |
350 g
|
Power
| DC power source |
12 V
|
| DC consumtion |
5000 mA
|

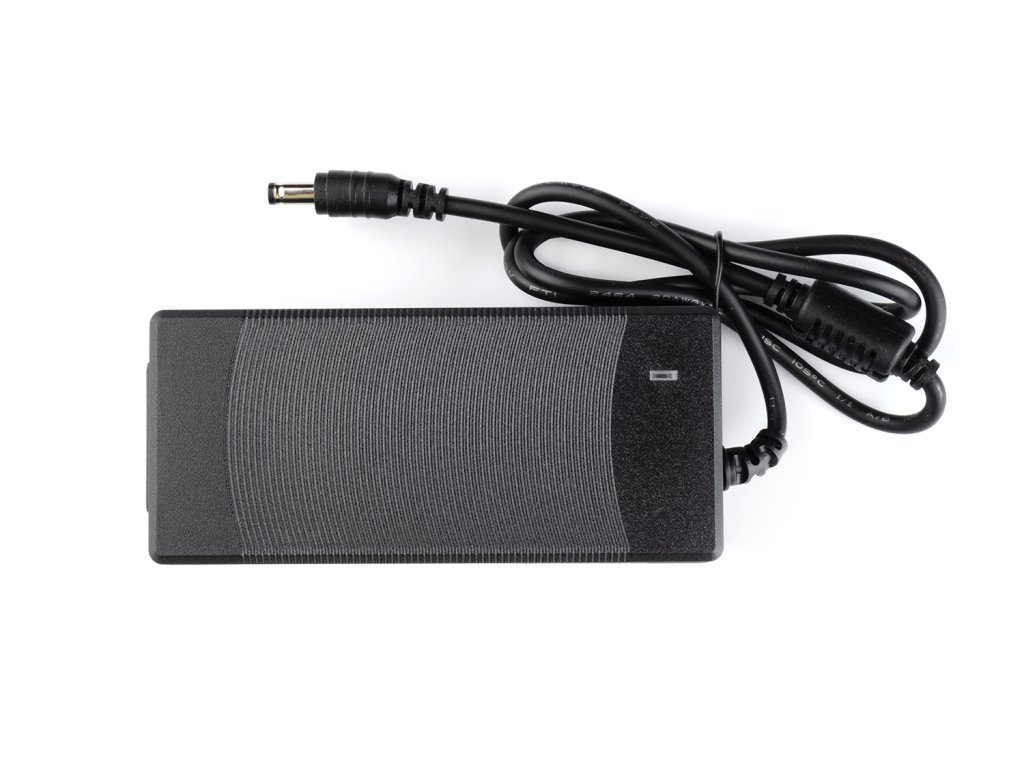

| DC power supply |
Included
|
Operating conditions
| Humidity range |
20-95% RH (non-condensing)
|
| Operating temperature |
-40 - 60 °C
|
| Storage temperature |
-40 - 60 °C
|
Common

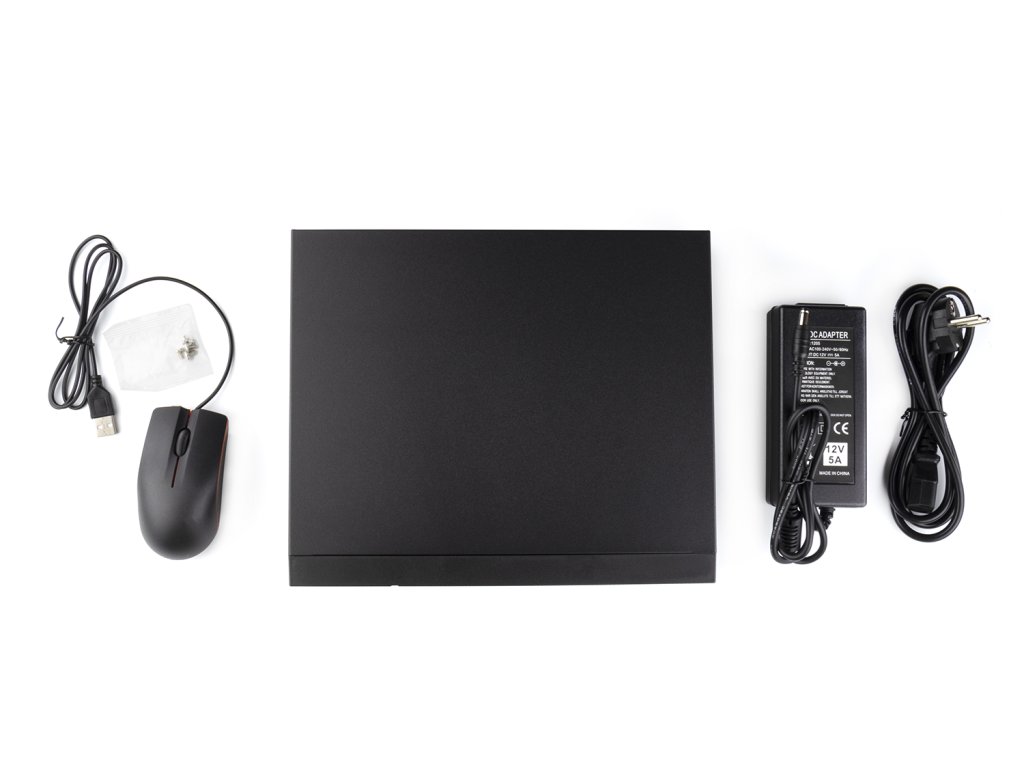

| Package contents |

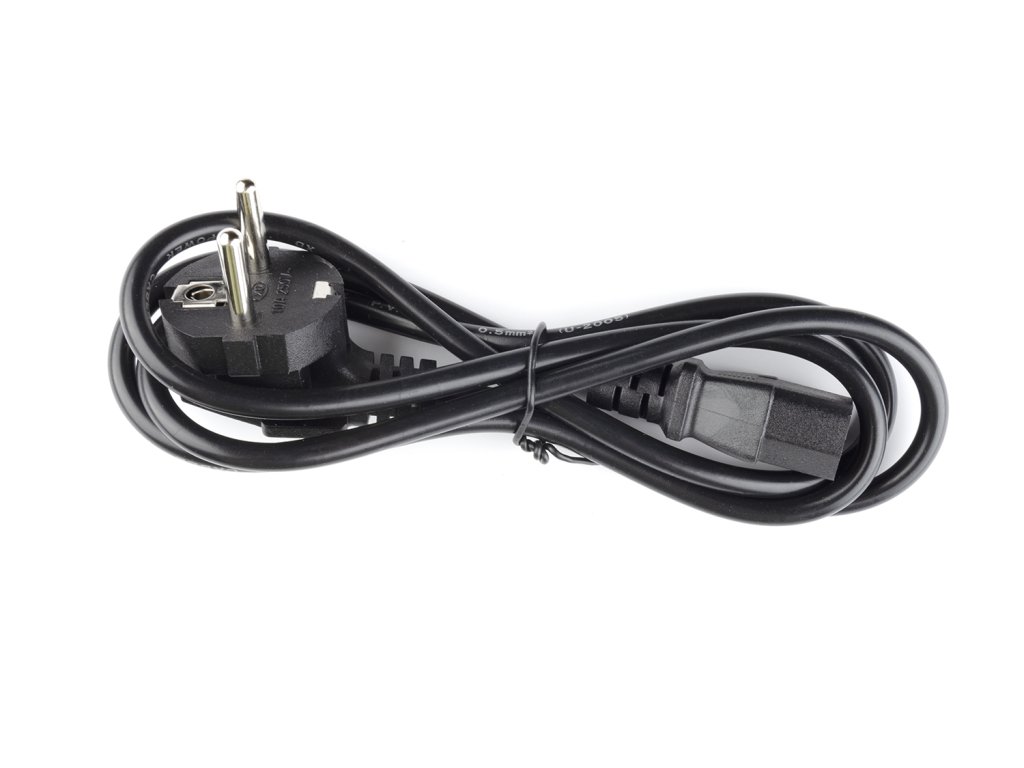

Power adapter,

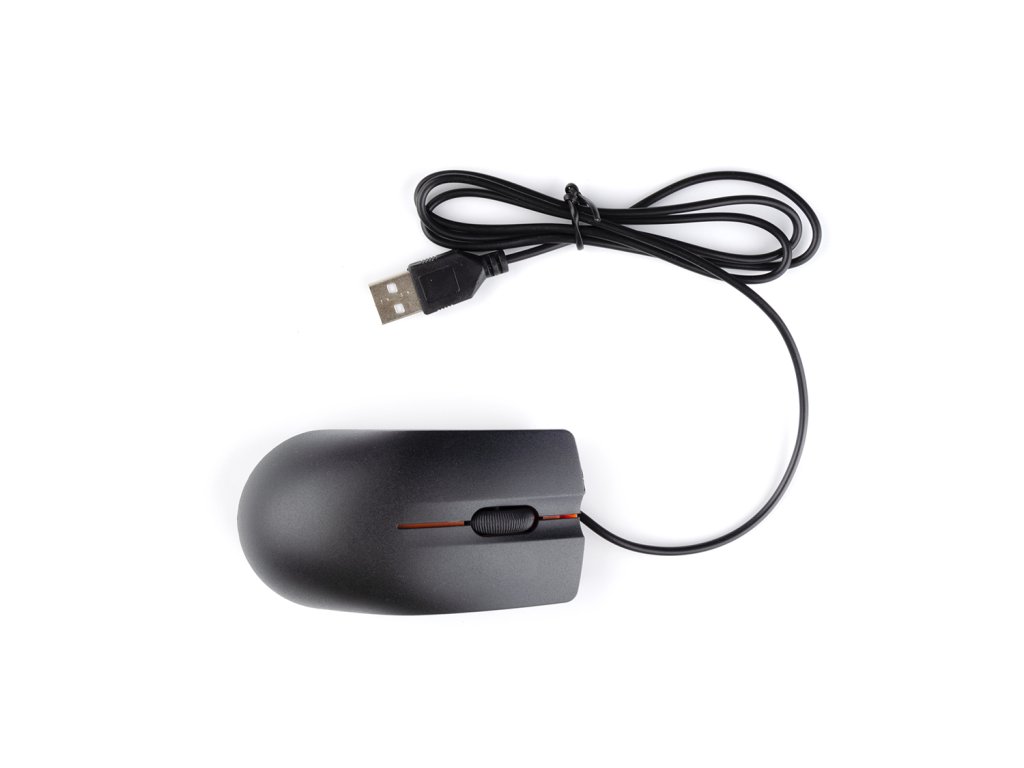

Optical mouse
|
| Warranty |
3 years
|
